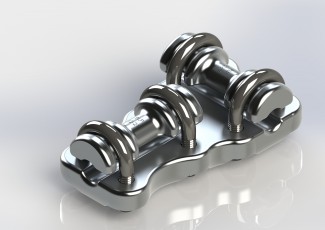

EUT
These clamps are of the bolted type clamp suitable for making "Tee" connections off a busbar or line conductor. The "RUN" as well as the "TAP" is fitted with two independent bolted saddles.
EUT-Type Clamps should only be used in very low or non-current carrying applications.
- Range taking clamps for making bolted tee connections off busbar or line conductor in low or non- current carrying applications ,
- Fasteners M12 GR. 8.8 HDG torque to 45Nm.
- Cat no. to be cast on substation body component .
- All bolted clamp and conductor surface to be cleaned with stainless steel wire brush and a suitable conductive grease applied before use.
- Material: Cast aluminium
- Supplied in clear , sealed, heavy duty, UV stabilized plastic bag.
