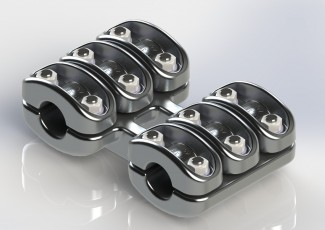

ESC
These spacers are designed to equalize the phase conductor bundle drop off points from the busbars where phase dropper conductor bundles of fewer conductors per bundle are used. They keep standard conductors at specified distances apart and are designed to withstand the forces that occur under short circuit conditions.
- Current carrying spacers to keep standard conductors at specifies distances apart. Able to withstand forces that occur under short circuit condition.
- Recommended fasteners M12 GR. 8.8 HDG to 45Nm.
- Groove and conductor surfaces to be cleaned with stainless steel wire brush and a suitable conductive grease applied before use.
- Material: Cast aluminium.
- Supplied in clear, sealed, heavy duty, UV stabilized plastic bag.
- Cat. no. to be stamped on product.
