ETC

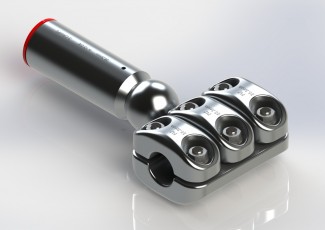

These are bolted "TEE"-compression clamps and are designed to make connections from a stranded conductor "RUN" which is under tension, onto a stranded conductor "TEE" connecting to equipment. The bolted "RUN" section of these clamps are fitted with three independent clamping saddles.
- Cat no. to be stamped on substation body.
- Material cast and extruded aluminium.
- Fasteners M12 GR. 8.8 HDG torque to 45Nm
- Compression die and size stamped on tube . 3 crimps required.
- Tube is pre-greased with conductive grease and sealed with plastic cap.
- All bolted joint clamp and conductor surfaces to be cleaned with stainless steel wire brush and a suitable conductive grease applied before use.
- Supplied in clear, sealed, heavy duty, UV stabilized plastic bag.
