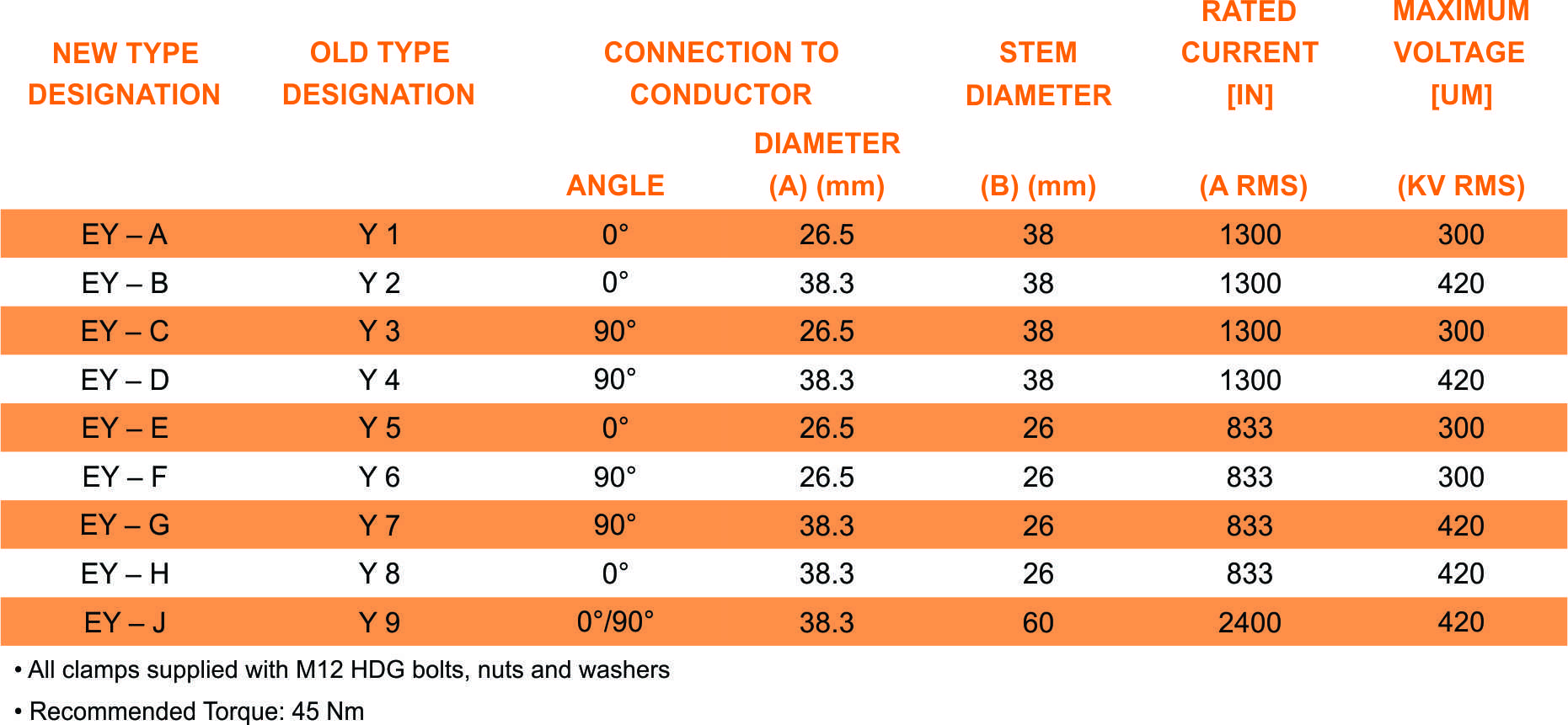

EY

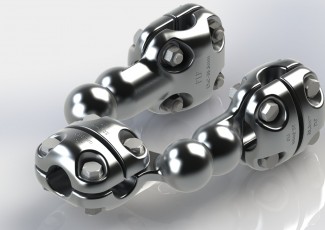

These clamps are of the bolted type clamps and are designed for making a connection onto a single solid terminal stem for a pair of stranded conductors. They can be use as a single tap off from a twin conductor bundle. They should only be used for non-current carrying purposes e.g. through connections on support post insulators, voltage transformers and surge arresters as applicable.
- Fasteners M12 GR. 8.8 HDG torque to 45Nm
- Cat no. to be stamped on the substation body
- All bolted clamp and conductor surfaces to be cleaned with stainless steel wire brush and a suitable conductive grease applied before use.
- Material: Cast aluminium.
- Supplied in clear, sealed, heavy duty, UV stabilised plastic bag.
