EYC

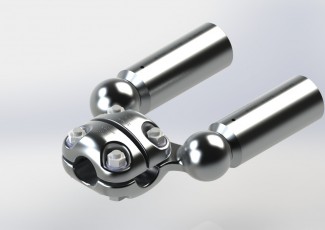

These clamps are similar to the bolted "EY" clamps, however on the pair of stranded condutor's side it has compression connections with 0 , 45 or 90 orientation. Two clamping saddles are provided for the bolted connection.
- To connect a twin stranded conductor bundle to a solid terminal stem by a bolting clamp to stem and crimping conductor in compression tube.
- Recommended fasteners M12 GR. 8.8 torque to 45Nm.
- Compression die and size stamped on tube. 3 crimps required.
- Cat no. to be stamped on products .
- Tube is pre-greased with conductive grease and sealed with plastic cap.
- All terminal, palm and conductor surfaces to be cleaned with stainless steel wire brush and a suitable conductive grease applied before use.
- Material: Cast and extruded aluminium.
- Supplied in clear, sealed, heavy duty, UV stabilized plastic bag.
- All palms in accordance with IEC 62271-301
