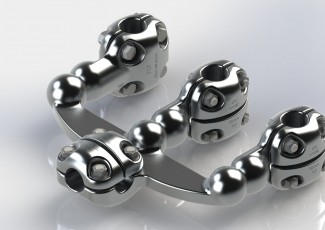

EY 3
These clamps are intended for use in conjunction with post insulators to support phase conductor bundles between items of outdoor high voltage apparatus.They are of the bolted type designation for making connections between horizontal triple conductors and a single vertical stem.
- Bolted-Bolted cross clamps for making a bolted connection between a triple stranded conductor bundle and a solid equipment stem. Can be used for current carrying and non-current carrying applications. Not to be used on end connections.
- Fasteners M12 GR. 8.8 HDG torque to 45Nm.
- Cat no. to be stamped on product.
- All bolted clamp and conductor surfaces to be cleaned with stainless steel wire brush and a suitable conductive grease applied before use.
- Material: Cast aluminium.
- Supplied in clear, sealed, heavy duty, UV stabilized plastic bag.
