EX

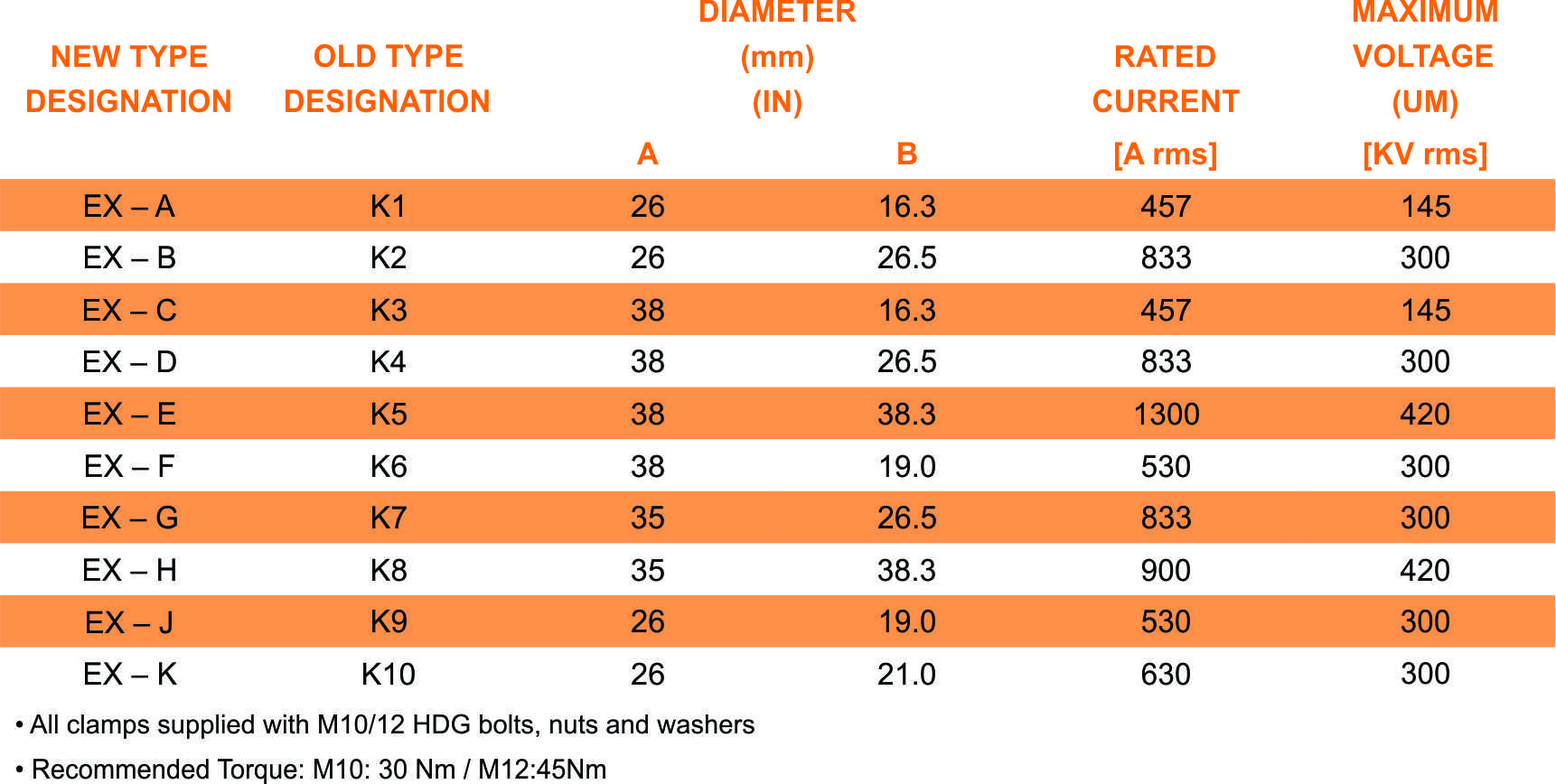

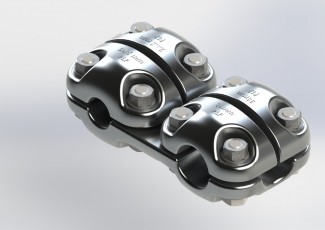

The EX-type Clamp is a bolted cross clamp and they are capable of making connections that are in-line or at an angle of 90o at either end of the clamp . A is designed to bolt onto a solid stem and B is designed to bolt onto stranded conductor.
EX- Clamps are generally only to be used in non-current carrying applications.
- Bolted-Bolted cross clamps for making bolted connections between solid equipment stems and stranded conductor in low or non-current carrying applications.
- Fasteners M12 GR. 8.8 HDG to ISO 1461 Torque to 45Nm.
- Cat No. to be cast on substation body casting.
- All bolted clamps and conductors surfaces to be cleaned with a stainless steel wire brush and a suitable conductive grease applied before use.
- Material: Cast aluminium.
- Supplied in clear , sealed, heavy duty, UV stabilized plastic bag.
