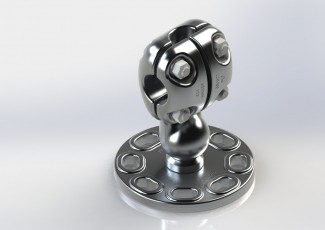

EXCP
These pedestal-mounted bolted clamps are intended for making connections between stranded conductors and post insulators.
- Non-current carrying for supporting stranded conductor on post insulators.
- Fasteners M12 GR. 8.8 HDG torque to 45Nm.
- Cat. no. to be stamped on the product.
- All bolted clamp and conductor surfaces with stainless steel wire brush and a suitable conductive grease applied before use.
- Material : Cast aluminium.
- Supplied in clear, sealed, heavy duty, UV stabilized plastic bag.
