ES

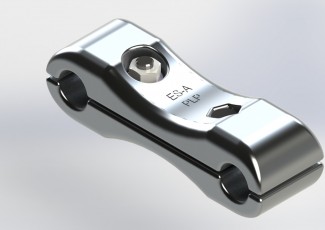

Spacers are designed to keep standard conductors at specified distances apart and are designed to withstand the forces that occur under short circuit conditions.
- Non-current carrying spacers to keep standard conductors at specifies distances apart. Able to withstand forces that occur under short circuit condition.
- Recommended fasteners M12 GR. 8.8 HDG torque to 45Nm.
- Groove and conductor surfaces to be cleaned with stainless steel wire brush and a suitable conductive grease applied before use.
- Material: Cast aluminium.
- Supplied in clear, sealed, heavy duty, UV stabilized plastic bag.
- Cat no. to be stamped on the product.
