EPT 2

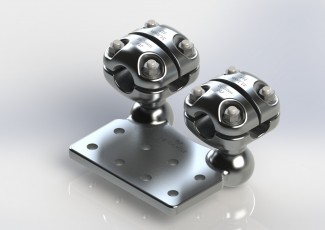

These bolted-type clamps shall be used mainly for connecting twin stranded conductors to earth switches with 8-hole pad terminals.
- To connect a flat terminal to a stranded conductor by bolting palm to terminal and crimping conductor in compression tube.
- Recommended fasteners M12 GR. 8.8 HDG torque to 45Nm.
- Compression die and size stamped on tube . All terminal, palm and conductor surfaces to be cleaned with stainless steel wire brush and a suitable conductive grease applied before use.
- Material: Cast aluminium .
- Supplied in clear, sealed, heavy duty, UV stabilized plastic bag.
- Cat. no. to be stamped as shown.
