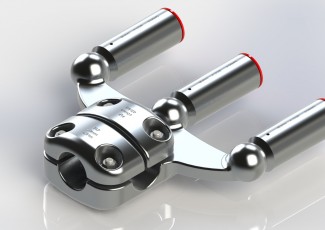

EYC 3
These clamps are similar to the bolted "EY" clamps, however on the pair of stranded conductor's side it has compression connections with 0O, 45O or 90O orientation. Two clamping saddles are provided for the bolted connection.
- To connect a triple stranded conductor bundle to solid terminal stem by bolting clamp to stem and crimping conductor in compression tube.
- Recommended fasteners M12 GR. 8.8 HDG torque to 45Nm.
- Compression die and size stamped on tube. 3 crimps required.
- Cat no. to be stamped on the product.
- Tube is pregreased with conductive grease and sealed with plastic cap.
- All terminal palm and conductor surfaces to be cleaned with stainless steel wire brush and a suitable conductive grease applied before use.
- Material: Cast and Extruded Aluminium.
- Supplied in clear, sealed, heavy duty, UV stabilized plastic bag.
- All palms in accordance with IEC 62271-301
