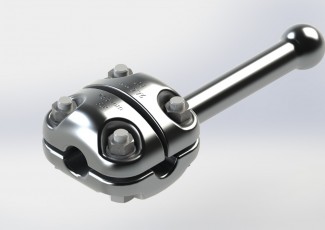

EEPC
EEPC clamps are used for connecting portable earthing to stranded conductors
- Bolted earthing peg clamps for making a bolted connection between single stranded conductor and earthing peg
- Fasteners M12 GR. 8.8 HDG. torque to 45Nm.
- Cat. no. should be stamped on the product.
- All bolted clamps and conductors surfaces to be cleaned with a stainless steel wire brush and a suitable conductive grease applied before use.
- Material: Cast aluminium.
- Supplied in clear, sealed, heavy duty, UV stabilized plastic bag.
