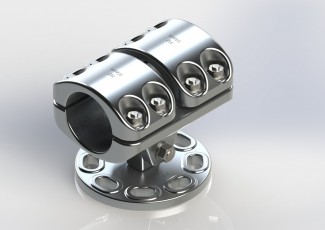

TBFC
- To connect two busbars (post insulator) fixed connection.
- Material: Fasteners for:Tube diam. 80-120mm, stainless steel Gr. A4. Tube Diam. 150-250mm, Anodised HT 7075 AL Alloy, Components are cast aluminium.
- Bolt torque values: M10 (St steel) 35Nm, (AL.) 21Nm, M12 (St steel) 60Nm, (AL) 36Nm
- Cat. no. to be stamped on the product.
- All bolted joint clamp and conductor/busbar surfaces to be cleaned with a stainless steel wire brush and a suitable conductive grease applied before use.
- Supplied in a clear , sealed , heavy duty, UV stabilized plastic bag.
- Supplied with a static discharge strap.
