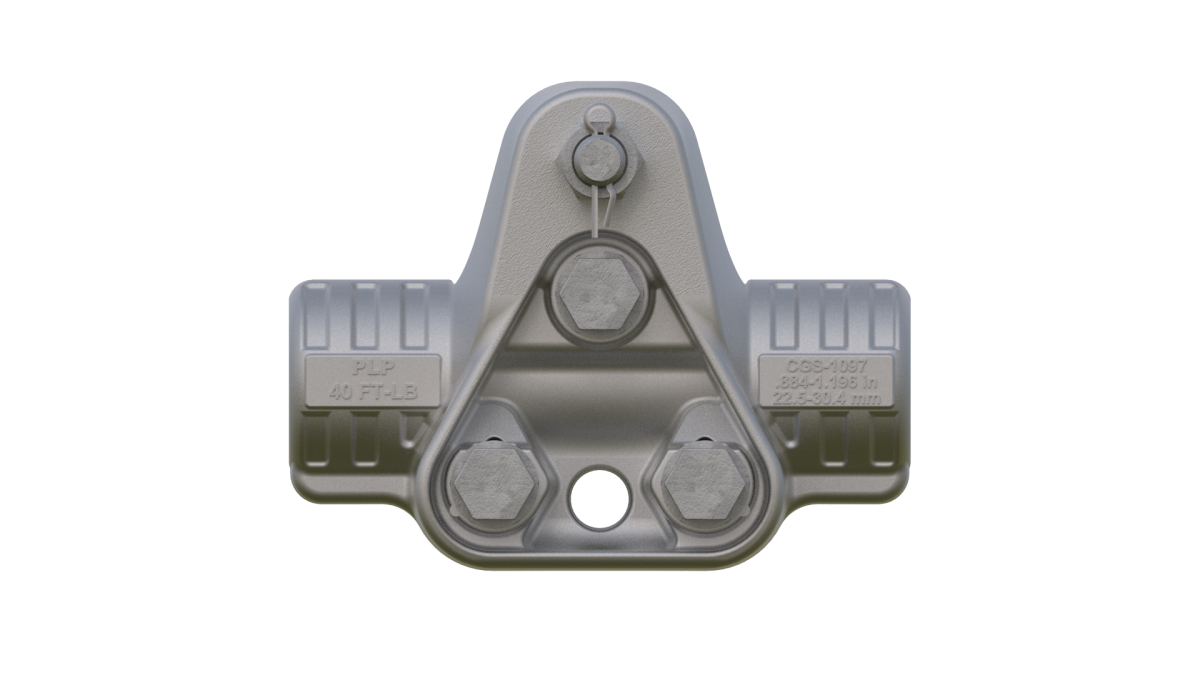

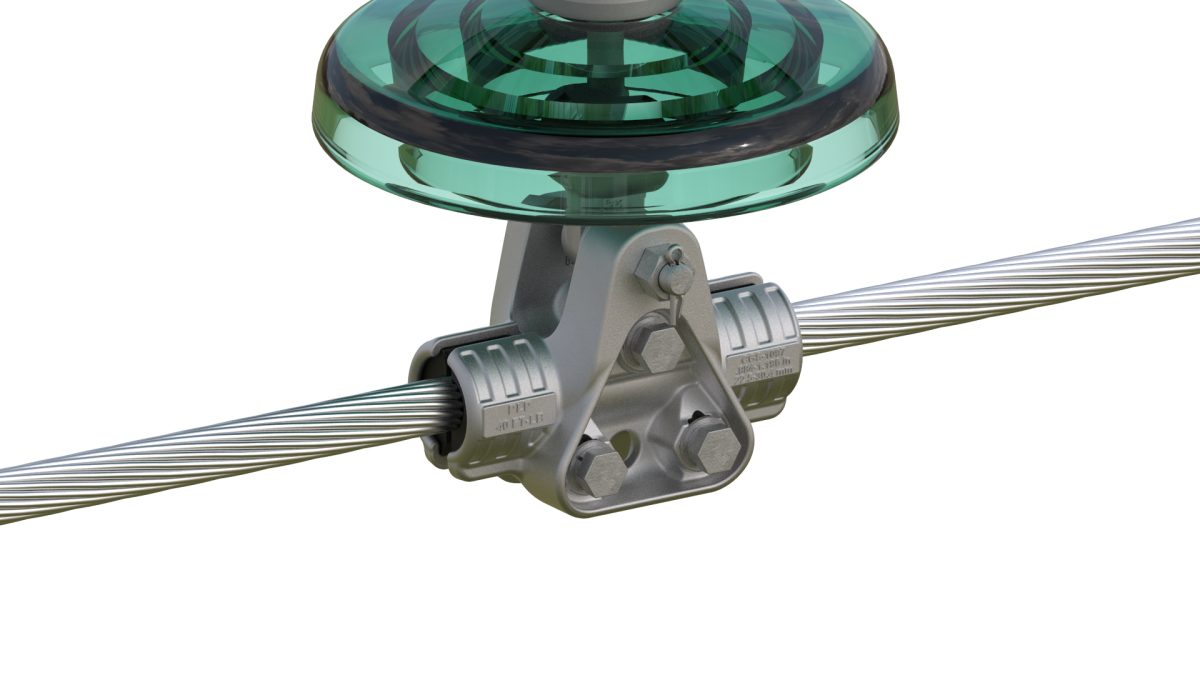

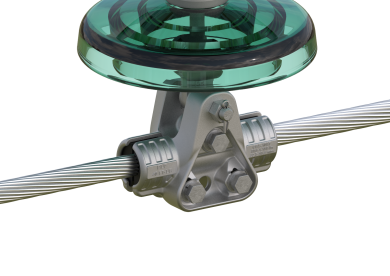

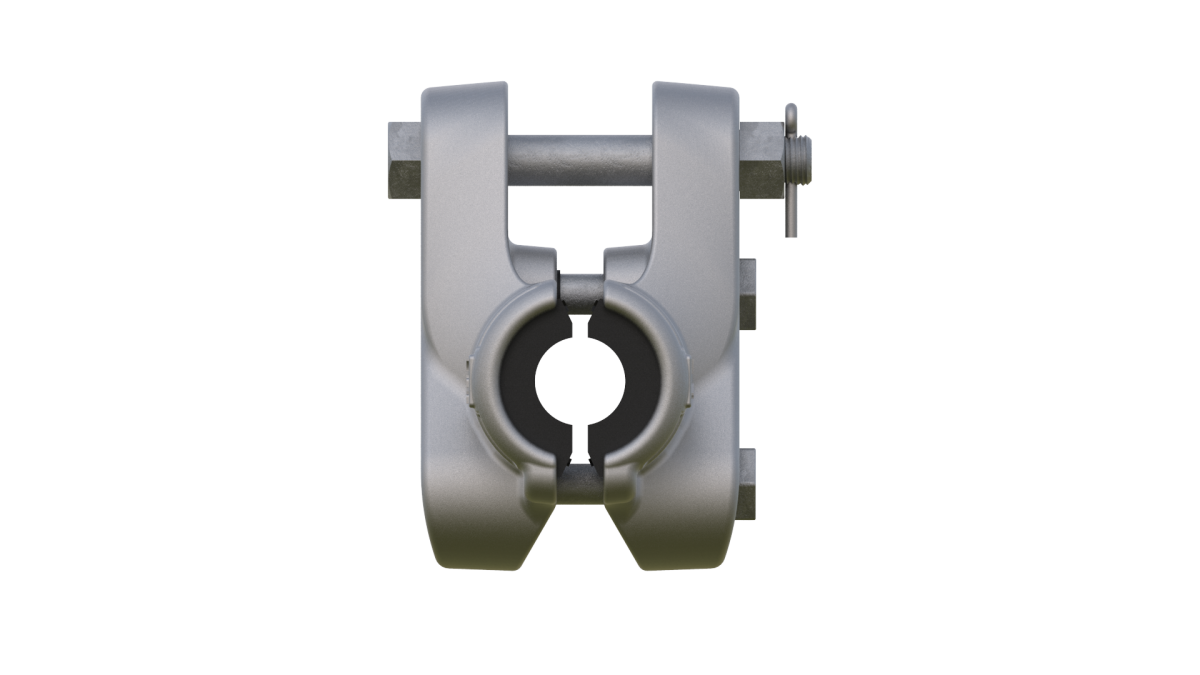

CUSHION-GRIP® Suspension
CUSHION-GRIP Suspensions are intended for use on all aluminum based conductors, and are designed to reduce the static and dynamic stresses at the support point so that the conductor is protected against the effects of oscillations. The conductor is cushioned by field proven, integral elastomer inserts, which guard against abrasion, wear, and fatigue.

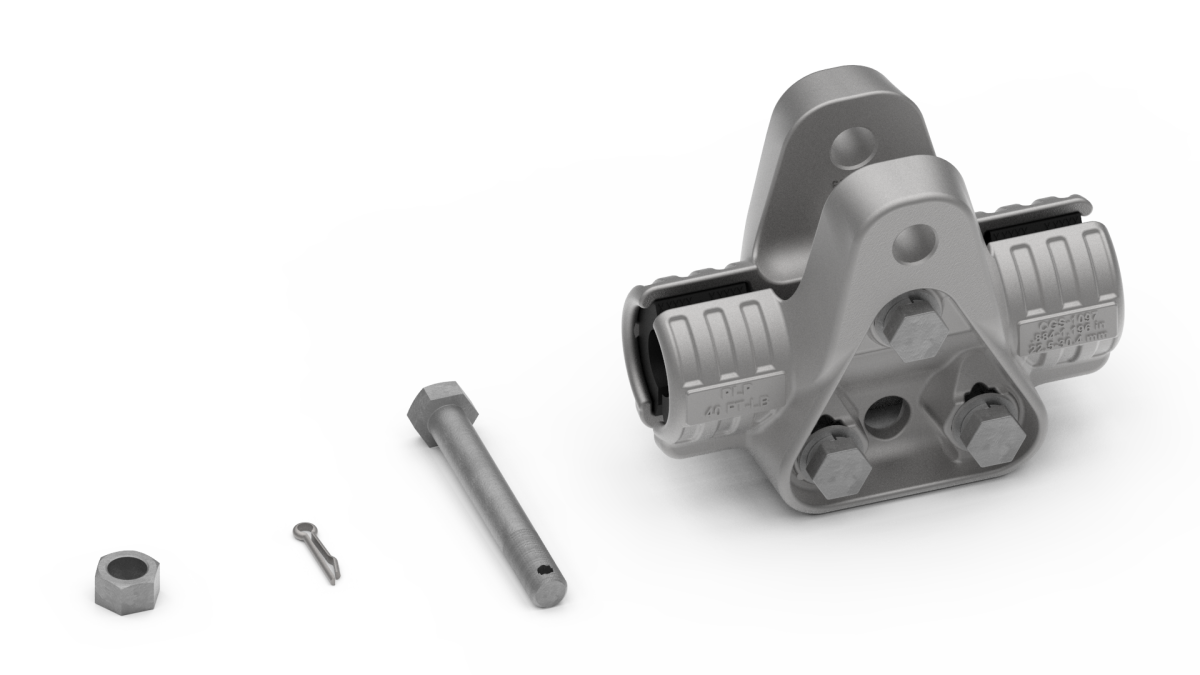

- No loose parts - all fasteners are captive and factory installed
- Simple labor-saving installation without the need for armor rods
- Internal cushions minimizes conductor bending stresses at critical entry locations
- Compatible with standard attachment hardware
- Easy hot stick application
- Designed for bundled EHV applications up to 345kV. For applications 500kV and higher, please contact PLP for details
Application Procedures
SP-2935 (CUSHION-GRIP® Suspension)
SP3752 - CUSHION-GRIP Suspension for OHSW
Catalog Pages
CUSHION-GRIP Suspension - Transmission Line Suspension & Support Catalog
CUSHION-GRIP Suspension for OHSW - Transmission Line Suspension & Support Catalog
CUSHION-GRIP® Suspension - Catalog
CUSHION-GRIP® Suspension - HT250 - Catalog
Sales Materials
CUSHION-GRIP® Suspension & Support - Sell Sheet
Aeolian Vibration Report Catalog
Reports & Manuals
CUSHION-GRIP® Suspension
| Catalog Number | Conductor Range | Standard Carton Quantity | Weight | |
| in | mm | lb (kg) | ||
| CGS-1095 | 0.312 - 0.608 | 7.92 - 15.44 | 3 units | 15,000 (67) |
| CGS-1096 | 0.609 - 0.883 | 15.47 - 22.43 | 3 units | 25,000 (111) |
| CGS-1097 | 0.884 - 1.196 | 22.45 - 30.38 | 3 units | |
| CGS-1098 | 1.197 - 1.545 | 30.40 - 39.24 | 3 units | |
| CGS-1120 | 1.546 - 1.569 | 39.27 - 39.85 | 3 units | 30,000 (133) |
| CGS-1121 | 1.570 - 1.639 | 39.88 - 41.63 | ||
| CGS-1122 | 1.640 - 1.707 | 41.66 - 43.36 | ||
| CGS-1123 | 1.708 - 1.771 | 43.38 - 44.98 | ||
| CGS-1124 | 1.772 - 1.833 | 45.01 - 46.56 | ||
| CGS-1125 | 1.834 - 1.892 | 46.58 - 48.06 | ||
| CGS-1126 | 1.893 - 1.948 | 48.08 - 49.48 | ||
| CGS-1127 | 1.949 - 2.001 | 49.50 - 50.83 | ||
• Add "HT" suffix code for High-Temperature CUSHION-GRIP Suspension
• Add "YC" suffix code for Y-Clevis Eye attachment fitting
• Add "CE" suffix code for Clevis Eye attachment fitting
• Add "SE" suffix code for Socket Eye attachment fitting
• Add "BNK" suffix code for Bolt, Nut, and Cotter Pin
CUSHION-GRIP® Suspension for OHSW
| Catalog Number | Conductor Range | Height | Width | Length | Weight | Standard Carton Quantity | Vertical Ultimate Load | ||
| in | mm | in (mm) | in (mm) | lb (kN) | |||||
| Minimum | Maximum | in (mm) | lb (kg) | ||||||
| CGS-1095G | 0.312 - 0.608 | 7.92 - 15.44 | 4.62 (117.0) | 0.80 (20.3) | 1.20 (30.0) | 5.5 (140.0) | 5.0 (2.2) | 3 units | 20,000 (89) |
• Add "YC" suffix code for Y-Clevis Eye attachment fitting
• Add "CE" suffix code for Clevis Eye attachment fitting
• Add "SE" suffix code for Socket Eye attachment fitting
• Add "BNK" suffix code for Bolt, Nut, and Cotter Pin
