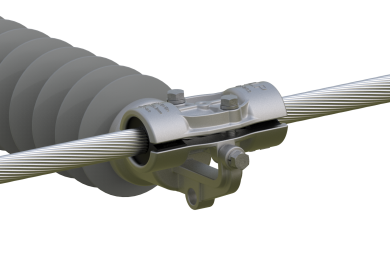

CUSHION-GRIP® Support
The CUSHION-GRIP Support is intended for use on all aluminum based conductors, and is designed to reduce the static and dynamic stresses at the support point, so that the conductor is protected against the effects of oscillations. The conductor is cushioned by field proven, integral elastomer inserts, which guard against abrasion, wear, and fatigue.
- No loose parts - all fasteners are captive and factory installed
- Simple labor-saving installation without the need for armor rods
- Internal cushions minimizes conductor bending stresses at critical entry locations
- Compatible with standard attachment hardware
- Easy hot stick application
- Designed for EHV Applications
Application Procedures
SP-2986-6 (CUSHION-GRIP Support)
Catalog Pages
CUSHION-GRIP Support - Transmission Line Suspension & Support Catalog
CUSHION-GRIP Support - Catalog
Sales Materials
CUSHION-GRIP® Support
| Catalog Number | Conductor Range | Weight | Standard Carton Quantity | |
| in | mm | lb (kg) | ||
| CGS-2100 | 0.312 - 0.608 | 7.92 - 15.44 | 1.45 (0.66) | 3 units |
| CGS-2101 | 0.609 - 0.883 | 15.47 - 22.43 | 2.40 (1.1) | 3 units |
| CGS-2102 | 0.884 - 1.196 | 22.45 - 30.38 | 3.50 (1.6) | 3 units |
| CGS-2103 | 1.197 - 1.545 | 30.40 - 39.20 | 5.00 (2.3) | 3 units |
• Add an "HT" suffix code for High-Temperature CUSHION-GRIP Support
