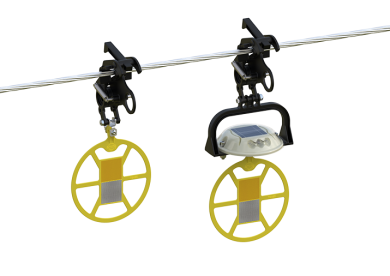

RAPTOR CLAMP™ Diverter
The RAPTOR CLAMP Diverter is an alternative to the BIRD-FLIGHT™ Diverter and the SWAN-FLIGHT™ Diverter for making overhead power lines visible to birds of all sizes. It provides a cost-beneficial means of reducing hazards to both power lines and birds. PLP also offers the RAPTOR CLAMP™ LED Diverter, which includes an exclusive flashing LED module that provides a visible indication of overhead lines in dark and low-light conditions.
-
UAV (Drone) Installation is available through PLP’s UAV Installation Service
-
Installable via drone when paired with PLP’s RAPTOR CLAMP Drone Kit for DJI M300/M350 models
-
Trigger mechanism is simple to set and operate
-
Easy “bump and snap” installation on the cable
-
No special tools required
-
Manufactured from UV-stabilized polycarbonate and polyethylene materials
-
Corrosion-resistant stainless steel hardware
-
Operational temperatures up to 125°C continuous
-
Rated for use on overhead shield wire and OPGW systems
-
Rated for single-conductor systems with voltages up to 138kV and twin/tri-bundled systems up to 345kV
Product Information
RAPTOR CLAMP Diverter - Catalog Pages
Sales Materials
RAPTOR CLAMP Diverter Installation Kit using the DJI M350/M350 Drone
RAPTOR CLAMP Diverter Sell Sheet
BIRD-FLIGHT Diverter & RAPTOR CLAMP Comparison Sheet
Installation Instructions
RAPTOR CLAMPTM DIVERTER
| Catalog Number | Description | Diameter Range | Weight lb |
|
|
Minimum |
Maximum |
|||
|
RAPTOR-YEL
|
RAPTOR CLAMP Diverter |
0.1 (2.54)
|
1.8 (45.7) Hand or Hot Stick Installed
1.0 (25.4) Drone Installed |
0.4 |
| RAPTOR-YW |
RAPTOR CLAMP Diverter, White and Yellow Reflective Tape |
0.4 | ||
|
RAPTOR-LED-W |
RAPTOR CLAMP |
1.1 |
||
| RAPTOR-LED-WYW |
RAPTOR CLAMP LED Diverter, White Flasher, with White and Yellow Refl ective Tape |
1.1 | ||
|
RAPTOR-LED-UV
|
RAPTOR CLAMP |
1.1 |
||
| RAPTOR-LED-UVYW |
RAPTOR CLAMP LED Diverter, Ultra-Violet Flasher, White and Yellow Refl ective Tape |
1.1 | ||
NOTE: Contact PLP for other options, including brackets for hanging signs.
