WRAPLOCK® Tie

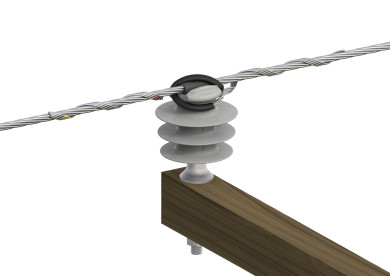

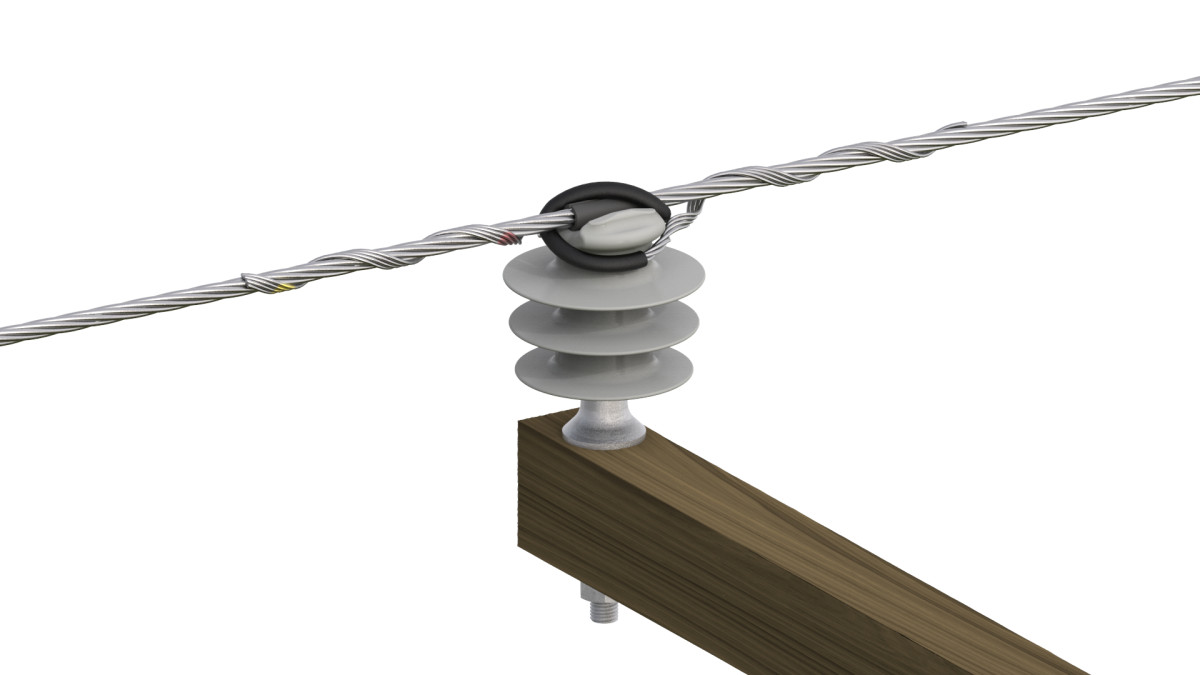

WRAPLOCK Ties provide an improved method of securing conductor compared to clamp-top insulators or hand ties and armor. They provide superior abrasion protection for the conductor and insulator under all types of motion, including low-frequency sway oscillation, high-frequency aeolian vibration, and galloping. The elastomer components surround the bare conductor with a resilient cushion where the conductor would come into contact with the insulator and with the center section of the tie. The WRAPLOCK Tie provides superior protection by eliminating abrasion rather than sacrificing outside surfaces to abrasion. This extends the life of the electrical system and reduces maintenance. WRAPLOCK Ties are manufactured from aluminum alloy wire.
-
Applicable to interchangeable headstyle insulators - C, F, and J-Neck
-
Accommodates conductors from 0.248" - 1.240" diameter
-
Mitigates long-term issues caused by Radio Influence Voltage (RIV)
-
Accommodates line angles up to 10-degrees in the vertical orientation
-
Exceeds NESC requirements for unbalanced load
-
Reduces abrasion caused by vibration
-
Resiliency of the tie protects the conductor
-
Test reports available upon request
Product Information
WRAPLOCK Tie - Insulator Ties Catalog Pages
Insulator/Tie Fit Information Sheet
Installation Instructions

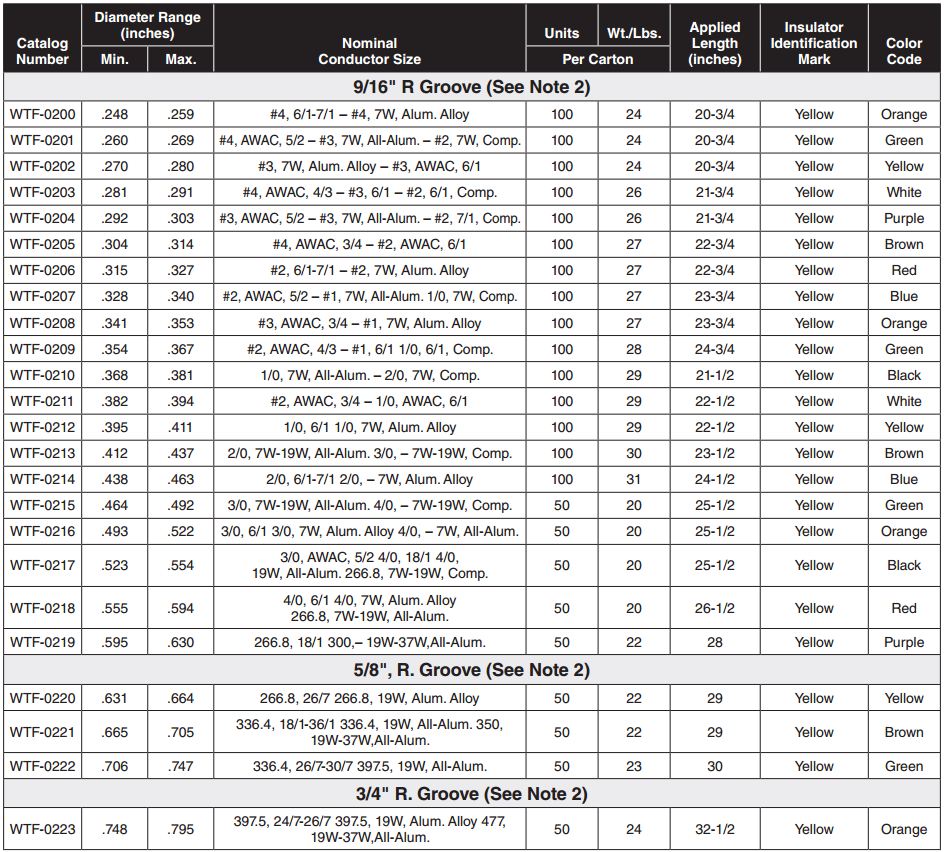

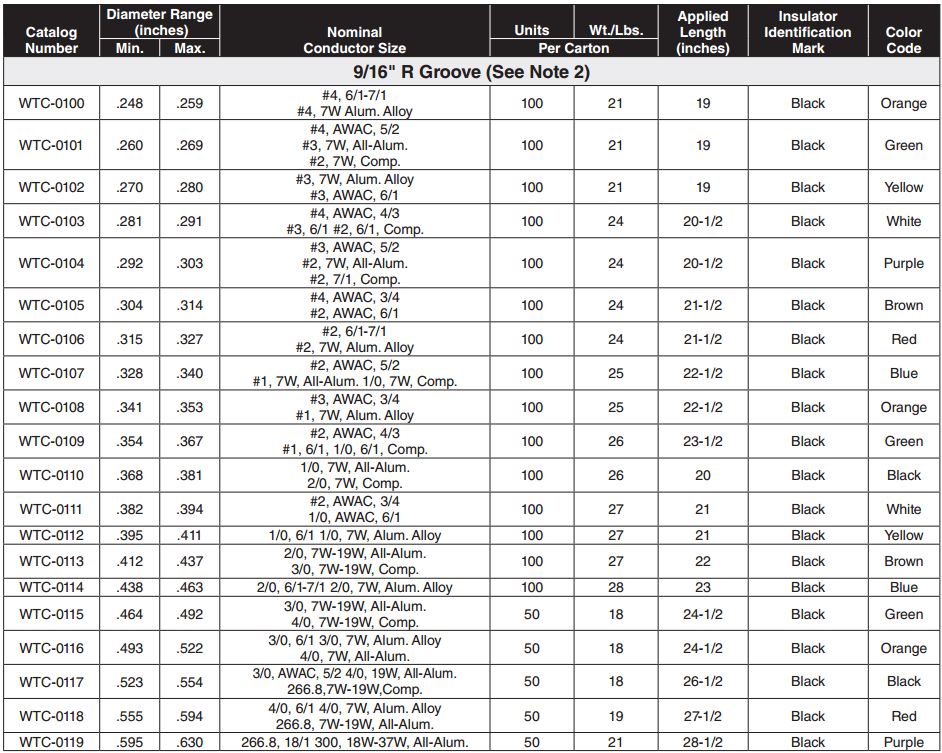

For use on: ACSR, Compacted ACSR, Aluminum Alloy All-Aluminum, AWAC® Compacted All-Aluminum
(ANSI 55-2 Pin, ANSI 55-3 Pin, 2-1/4" Neck Diameter)

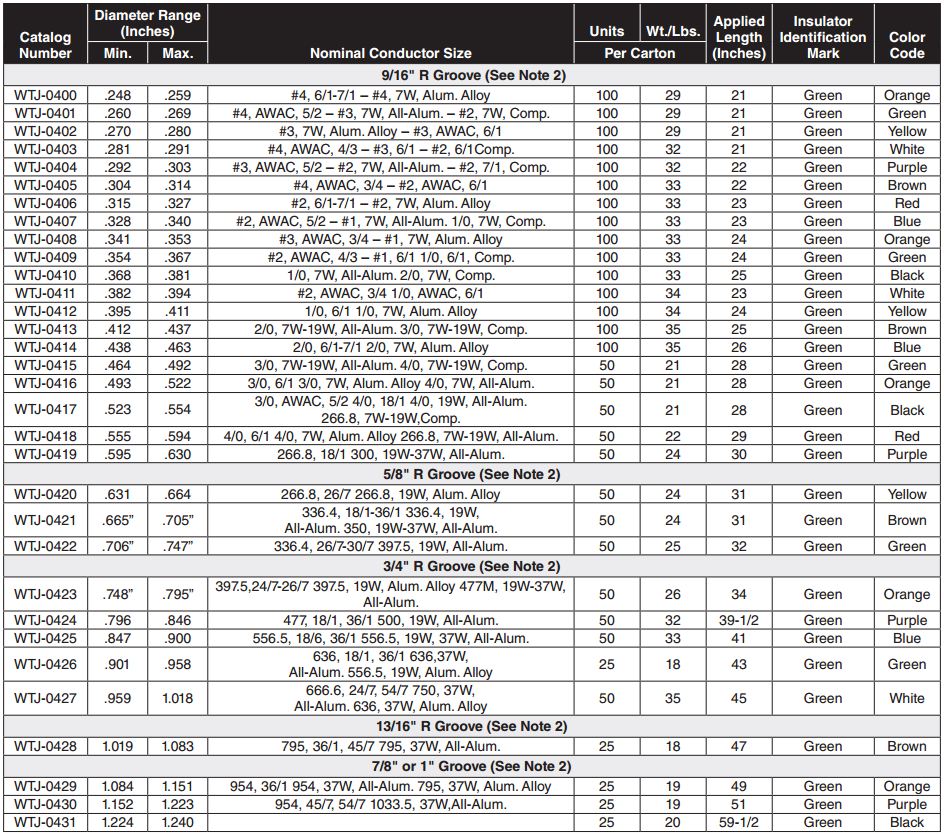

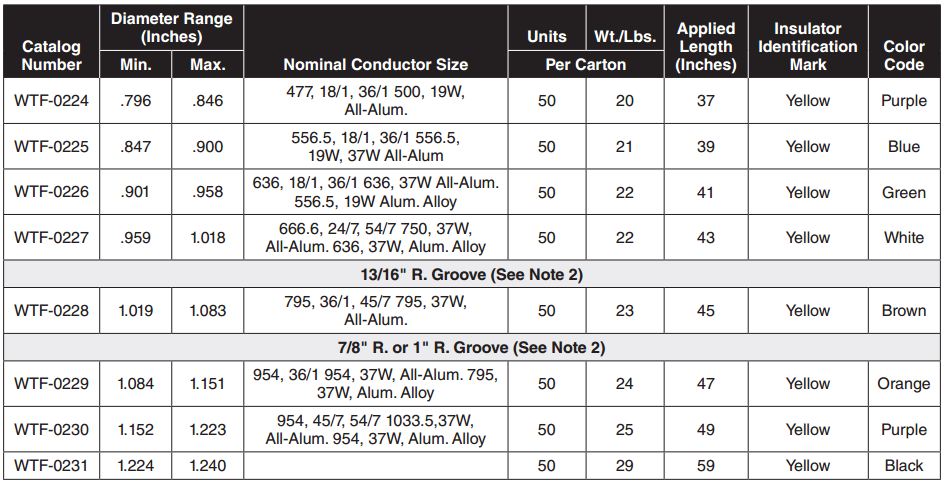

For use on: ACSR, Compacted ACSR, Aluminum Alloy All-Aluminum, AWAC® Compacted All-Aluminum F-Neck Interchangable Headstyle Insulators
(ANSI 55-4 Pin, ANSI 55-5 Pin, ANSI 57-1 Post, ANSI 57-2 Post, ANSI 57-3 Post, 2-7/8" Neck Diameter)

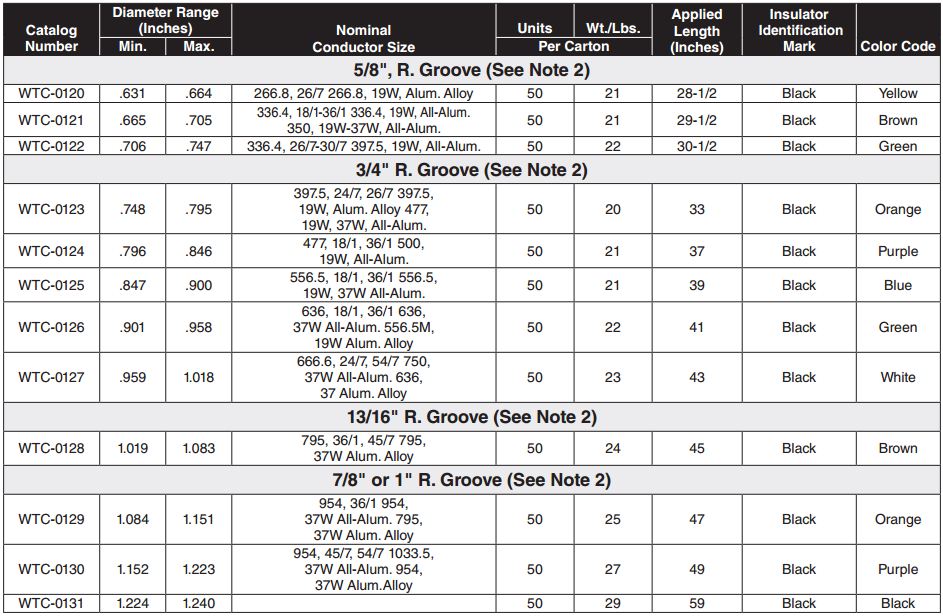

For use on: ACSR, Compacted ACSR, Aluminum Alloy All-Aluminum, AWAC® Compacted All-Aluminum J-Neck Interchangable Headstyle Insulators
(ANSI 55-6 Single Skirt Pin, ANSI 55-7 Single Skirt Pin, ANSI 56-1 Double Skirt Pin, 3-1/2" Neck Diameter)
EXPLANATORY NOTES:
(1) Nominal Conductor size indicates one of various conductors within each range.
(2) For the succeeding conductors ranges, the insulator's top groove radius should be at least as large as shown above.
(3) AWAC is a registered trademark of the Copperwld Co.
