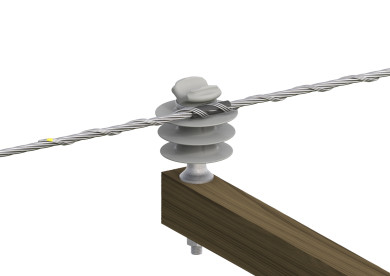

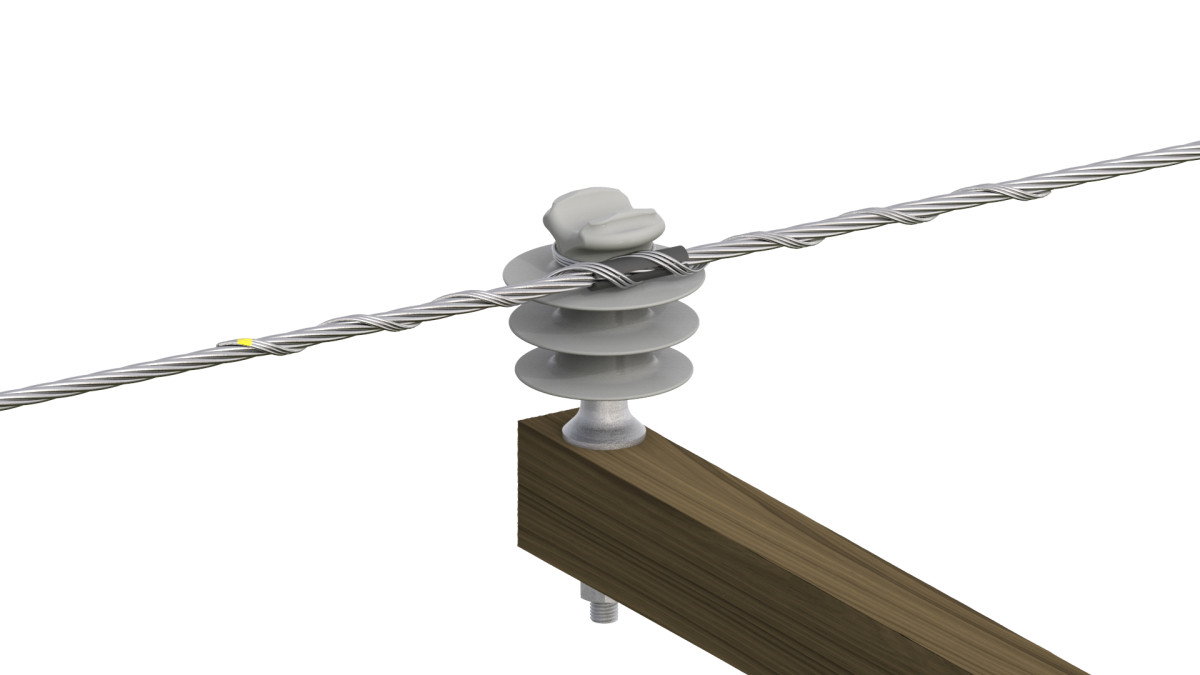

Side Tie

Side Ties provide a vastly improved method of securing conductor compared to clamp-top insulators or hand ties over Armor Rods. They provide superior abrasion protection for the conductor under all types of motion, including low-frequency sway oscillation, high-frequency aeolian vibration, and galloping. The included tie tube provides an armoring layer that eliminates abrasion damage of the conductor and insulator caused by conductor motion, extending the life of the electrical system and reducing maintenance.

Applicable to interchangeable headstyle insulators - C, F, and J-Neck
Accommodates conductors from 0.245" - 1.240" diameter
Pre-contoured Tie ensures a tight fit
Mitigates long-term issues caused by Radio Influence Voltage (RIV)
Accommodates line angles up to 80-degrees (40-degrees per Insulator)
Exceeds NESC requirements for unbalanced load
Reduces or eliminates abrasion caused by vibration
Ideal for severe weather applications and system hardening activities
Resiliency of the tie protects the conductor
Test reports available upon request to abrasion.

Product Information

Side Tie - Insulator Ties Catalog Pages

Installation Instructions

SP-2832 (Side-Tie)

Diameter Range		Nominal Conductor Size¹	Units per Carton	C-Neck Insulators (Black)		F-Neck Insulators (Yellow)		Conductor Color Code
in				Catalog Number	Applied Length	Catalog Number	Applied Length
Minimum	Maximum			Catalog Number	in	Catalog Number	in
9/16" R. Groove²
0.190	0.215	#6, 6/1; #4, 7W Comp.	100	STC-1250P	16	STF-1150P	16	Blue
0.216	0.244	#4, 7W All Alum.; #4, 6/1, 7/1 Comp.	100	STC-1251P	17	STF-1151P	17	Brown
0.245	0.277	#4, 6/1, 7/1; #4, 7W Alum. Alloy	100	STC-1252P	19	STF-1152P	19	Orange
0.278	0.315	#3, 7W Alum. Alloy; #2, 7W All Alum.	50	STC-1253P	21	STF-1153P	21	Purple
0.316	0.357	#2, 6/1, 7/1; #2, 7W Alum. Alloy; #1, 6/1 ACSR	50	STC-1254P	24	STF-1154P	24	Red
0.358	0.405	1/0, 7W All Alum.; 1/0, 6/1 ACSR; 1/0, 7W Alum. Alloy	50	STC-1255P	26	STF-1155P	26	Yellow
0.406	0.459	2/0, 7W All Alum.; 2/0, 6/1 ACSR; 2/0, 7W Alum. Alloy	50	STC-1256P	28	STF-1156P	28	Blue
0.460	0.520	3/0, 7W All Alum.; 3/0, 6/1 ACSR; 3/0, 7W Alum. Alloy	50	STC-1257P	31	STF-1157P	30	Orange
0.521	0.588	4/0, 7W All Alum.; 4/0, 6/1 ACSR; 4/0, 7W Alum. Alloy	50	STC-1258P	22	STF-1158P	32	Red
0.589	0.665	266.8, 37W All Alum.; 266.8, 18/1	50	STC-1259P	23	STF-1159P	23	Purple
0.666	0.755	336.4, 19W All Alum.; 336.4, 18/1; 397.5, 19W All Alum. 400, 19W, 37W, All Alum	50	STC-1260P	25	STF-1160P	25	Brown
0.756	0.858	477, 19W, 37W All Alum.; 477, 18/1 24/7, 26/7	50	STC-1261P	26	STF-1161P	26	Red
5/8" R. Groove²
0.859	0.968	556.5, 26/7; 636, 18/1; 700, 37W, 61W All Alum.	50	STC-1262P	28	STF-1162P	28	Blue
11/16" R. Groove²
0.969	1.096	795, 37W All Alum.; 795, 61W All Alum.; 715.5, 24/7; 795, 54/7	50	STC-1263P	29	STF-1163P	29	Green
11/16" R. Groove²
1.097	1.240	954, 36/1, 54/7; 1033.5, 37W, 61W All Alum.	50	STC-1264P	33	STF-1164P	33	Yellow
Right-hand lay standard NOTES: ¹ Nominal Conductor Size indicates one or more of various conductors within each range. ² For the succeeding ranges the insulator's top groove radius should be at least as large as shown above.

Diameter Range		Nominal Conductor Size¹	Units per Carton	C-Neck Insulators (Black)		Conductor Color Code
in				Catalog Number	Applied Length
Minimum	Maximum			Catalog Number	in
9/16" R. Groove²
0.190	0.215	#6, 6/1; #4, 7W Comp.	100	STJ-1500P	16	Blue
0.216	0.244	#4, 7W All Alum.; #4, 6/1, 7/1 Comp.	100	STJ-1501P	17	Brown
0.245	0.277	#4, 6/1, 7/1; #4, 7W Alum. Alloy	100	STJ-1502P	19	Orange
0.278	0.315	#3, 7W Alum. Alloy; #2, 7W All Alum.	100	STJ-1503P	21	Purple
0.316	0.357	#2, 6/1, 7/1; #2, 7W Alum. Alloy; #1, 6/1 ACSR	100	STJ-1504P	24	Red
0.358	0.405	1/0, 7W All Alum.; 1/0, 6/1 ACSR; 1/0, 7W Alum. Alloy	100	STJ-1505P	26	Yellow
0.406	0.459	2/0, 7W All Alum.; 2/0, 6/1 ACSR; 2/0, 7W Alum. Alloy	50	STJ-1506P	31	Blue
0.460	0.520	3/0, 7W All Alum.; 3/0, 6/1 ACSR; 3/0, 7W Alum. Alloy	50	STJ-1507P	32	Orange
0.521	0.588	4/0, 7W All Alum.; 4/0, 6/1 ACSR; 4/0, 7W Alum. Alloy	50	STJ-1508P	34	Red
0.589	0.665	266.8, 37W All Alum.; 266.8, 18/1	50	STJ-1509P	23	Purple
5/8" R. Groove²
0.666	0.755	336.4, 19W All Alum.; 336.4, 18/1; 397.5, 19W All Alum. 400, 19W, 37W, All Alum	50	STJ-1510P	25	Brown
0.756	0.858	477, 19W, 37W All Alum.; 477, 18/1 24/7, 26/7	50	STJ-1511P	26	Red
0.859	0.968	556.5, 26/7; 636, 18/1; 700, 37W, 61W All Alum.	25	STJ-1512P	28	Blue
0.969	1.096	795, 37W All Alum.; 795, 61W All Alum.; 715.5, 24/7; 795, 54/7	25	STJ-1513P	29	Green
1.097	1.240	954, 36/1, 54/7; 1033.5, 37W, 61W All Alum.	25	STJ-1514P	33	Yellow
Right-hand lay standard NOTES: ¹ Nominal Conductor Size indicates one or more of various conductors within each range. ² For the succeeding ranges the insulator's top groove radius should be at least as large as shown above.
