Spool Tie

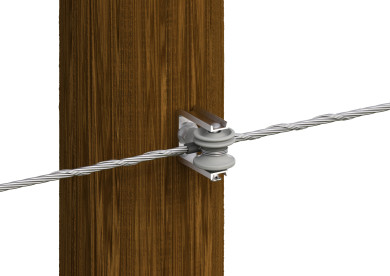

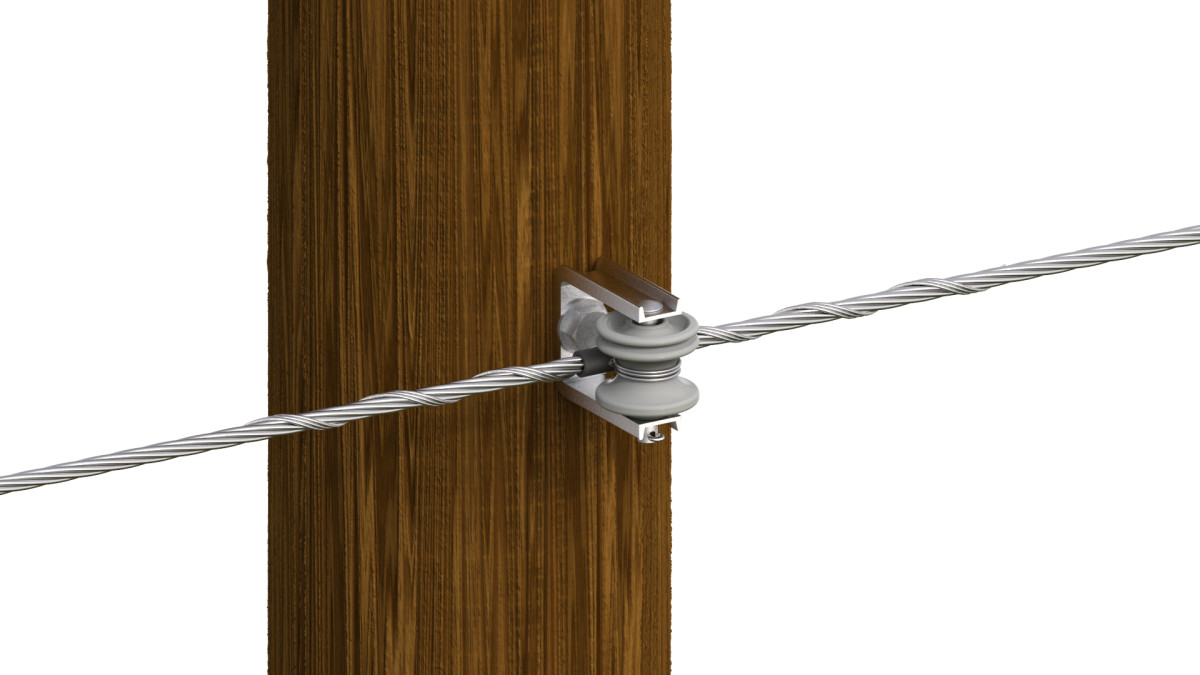

Spool Ties provide a vastly improved method of securing conductor compared to hand ties or hand ties over Armor Rods. They provide superior abrasion protection for the conductor under all types of motion, including low-frequency sway oscillation, high-frequency aeolian vibration, and galloping. The included tie tube provides an armoring layer that eliminates abrasion damage of the conductor and insulator caused by conductor motion, extending the life of the electrical system and reducing maintenance.
-
Applicable to 1-3/4" neck ANSI Class 53-1, 53-2, and 53-3 spool insulators
-
Accommodates conductors from 0.245" - 0.968" diameter
-
Pre-contoured Tie ensures a tight fit
-
Accommodates line angles up to 10-degrees in the horizontal orientation and up to 40-degrees in the vertical orientation • Exceeds NESC requirements for unbalanced load
-
Reduces or eliminates abrasion caused by vibration
-
Ideal for severe weather applications and system hardening activities
-
Resiliency of the tie protects the conductor
-
Available in copper compatible material for copper conductors
-
Test reports available upon request
Product Information
Severe Weather Tie Kits - Sell Sheet
Installation Instructions
|
Diameter Range1 |
Nominal Conductor Size2 | Units per Carton | Catalog Number | Applied Length | Conductor Color Code | |
| in | ||||||
| Minimum | Maximum | in |
||||
| 0.245 | 0.277 |
#4, 6/1, 7/1; #4, 7W Alum. Alloy |
100 | SPL-1352P | 19 | Orange |
| 0.278 | 0.315 |
#3, 7W Alum. Alloy; #2, 7W All Alum. |
100 | SPL-1353P | 21 | Purple |
| 0.316 | 0.357 |
#2, 6/1, 7/1; #2, 7W Alum. Alloy; #1, 6/1 ACSR |
100 | SPL-1354P | 24 | Red |
| 0.358 |
0.405 |
1/0, 7W All Alum.; 1/0, 6/1 ACSR; 1/0, 7W Alum. Alloy |
100 | SPL-1355P | 26 | Yellow |
| 0.406 | 0.459 |
2/0, 7W All Alum.; 2/0, 6/1 ACSR; 2/0, 7W Alum. Alloy |
100 | SPL-1356P | 28 | Blue |
| 0.460 | 0.520 |
3/0, 7W All Alum.; 3/0, 6/1 ACSR; 3/0, 7W Alum. Alloy |
100 | SPL-1357P | 31 | Orange |
| 0.521 | 0.588 |
4/0, 7W All Alum.; 4/0, 6/1 ACSR; 4/0, 7W Alum. Alloy |
50 | SPL-1358P | 32 | Red |
| 0.589 | 0.665 |
266.8, 37W All Alum.; 266.8, 18/1 |
50 | SPL-1359P | 23 | Purple |
| 0.666 | 0.755 |
336.4, 19W All Alum.; 336.4, 18/1; 397.5, 19W All Alum.; 400, 19W, 37W All Alum |
50 | SPL-1360P | 25 | Brown |
| 0.756 | 0.858 |
477, 19W, 37W All Alum.; 477, 18/1 24/7, 26/7; 556.5, 19W All Alum |
50 | SPL-1361P | 26 | Red |
| 0.859 | 0.968 |
556.5, 26/7; 636, 18/1; 700, 37W, 61W All Alum. |
50 | SPL-1362P | 28 | Blue |
|
Right-hand lay standard NOTES: 1 Diameter Range indicates the size of conductors that utilize the same tie. 2 Nominal Conductor Size indicates one or more of various conductors within each range. |
||||||
