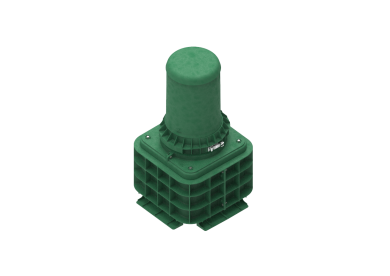

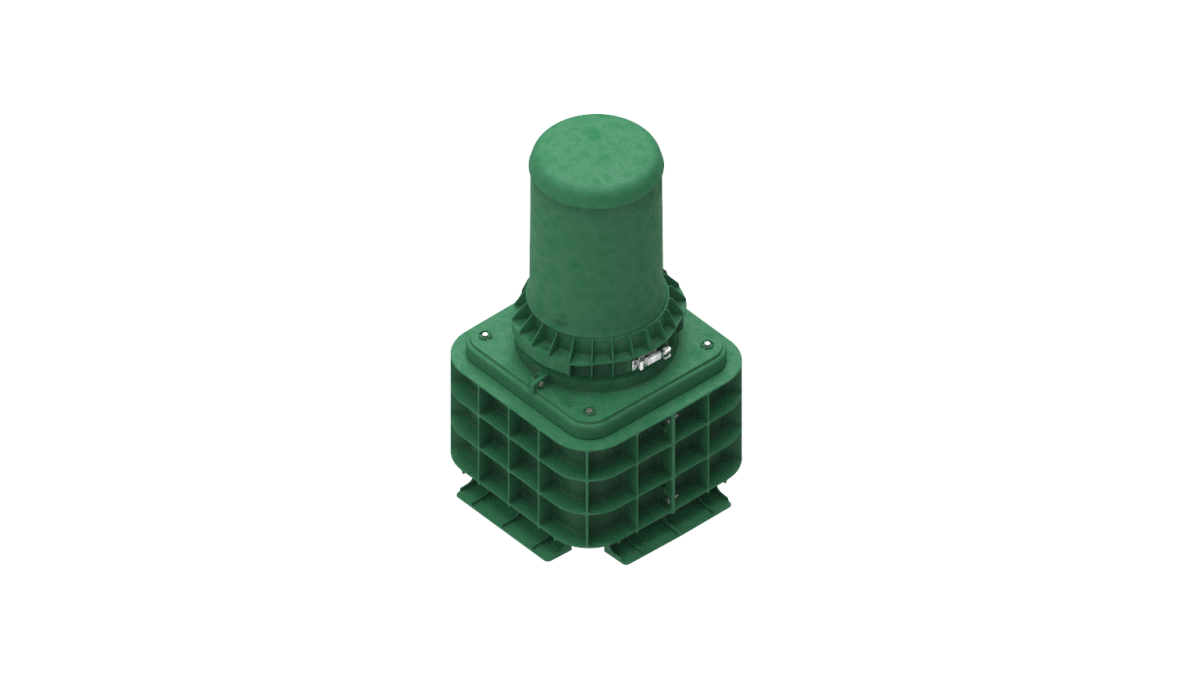

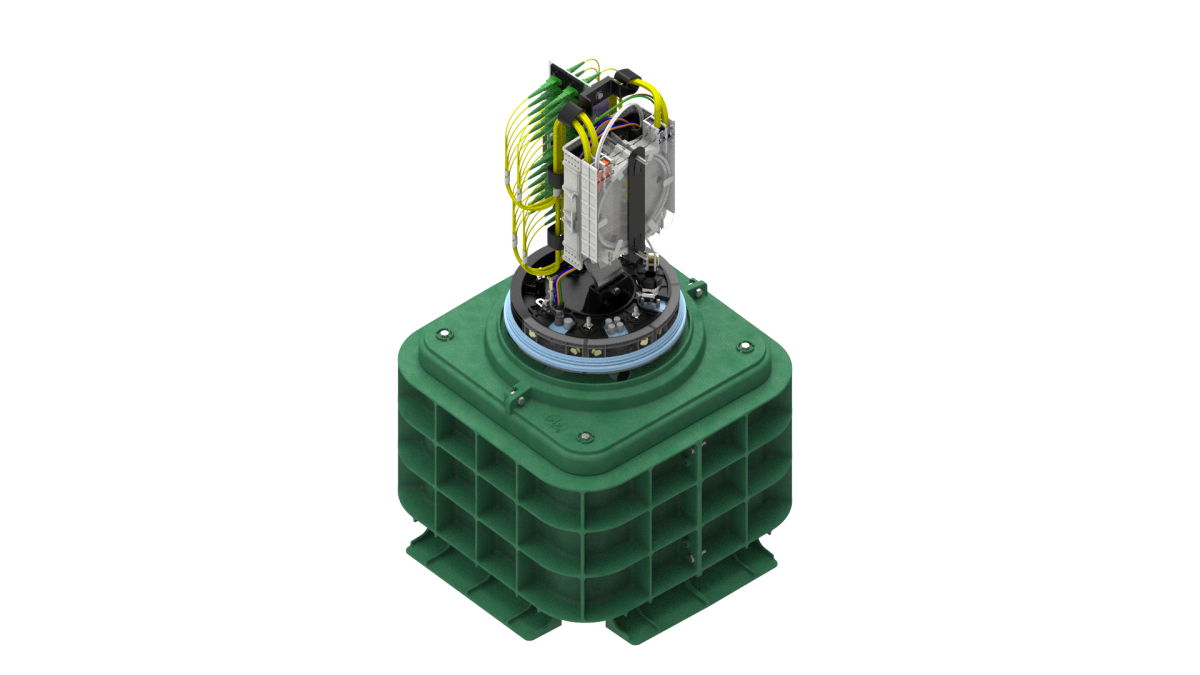

COYOTE® GLC (Ground Level Closure)
The COYOTE GLC (Ground Level Closure) offers two length options of 17" and 28" to support either buffer tube or ribbon fiber applications. These closures utilize PLP’s patented segmented end plate design, which allows for easy installation of a variety of cable sizes in conjunction with our grommets. The GLC is a hermetically sealed pedestal system that permits a high volume of uncut slack storage and its unique design doesn’t force you to work where the closure is installed.
-
4-Port segmented end plate design provides independent access to each cable port without disrupting surrounding cables
-
Multiple tray designs support mass fusion splicing, single fusion splicing, or a combination of both
-
Flexible grommet sealing technology supports a wide range of flat and round cable profiles
-
Hermetically sealed dome eliminates the potential for water intrusion and prevents invasion of insects
-
Accessible isolated grounding system that allows ground testing to occur without entering the splice closure
-
Slack storage of uncut cable allows dome closure to be carried to a splice truck or other suitable working environment
-
The small GLC base with cover can be used for pedestrian applications (Tier 5)
Product Information
Sales Material
COYOTE GLC (Ground Level Closure) Sell Sheet CO-SS-1267
Installation Instructions
SP3130 (COYOTE GLC - Complete Installation)
| COYOTE GLC |
|
| Catalog Number | Spacers for Small Base Description |
| COYGLC-S1-000 | COYOTE GLC Standard Spacer for Small Base – Includes (2) Standard Spacer Halves, (2) Self-Tapping Bolts, and (4) 3.49" L (89 mm) Spacer Fasteners |
| COYGLC-S2-000 | COYOTE GLC Grounding Spacer for Small Base – Includes (1) Standard Spacer Half, (1) Grounding Spacer Half, (1) Ground Stud Mounting Plate, (7) Ground Studs with Fasteners, (1) Bonding Plate, (1) Standard Access Cover, (7) Ground Lead Assemblies, (2) Self-Tapping Bolts, and (4) 3.49" L (89 mm) Spacer Fasteners |
| COYGLC-S3-000 | COYOTE GLC Dual Grounding Spacer for Small Base – Includes (2) Grounding Spacer Halves, (2) Ground Stud Mounting Plate, (14) Ground Studs with Fasteners, (2) Bonding Plate, (2) Standard Access Cover, (14) Ground Lead Assemblies, (2) Self-Tapping Bolts, and (4) 3.49" L (89 mm) Spacer Fasteners |
