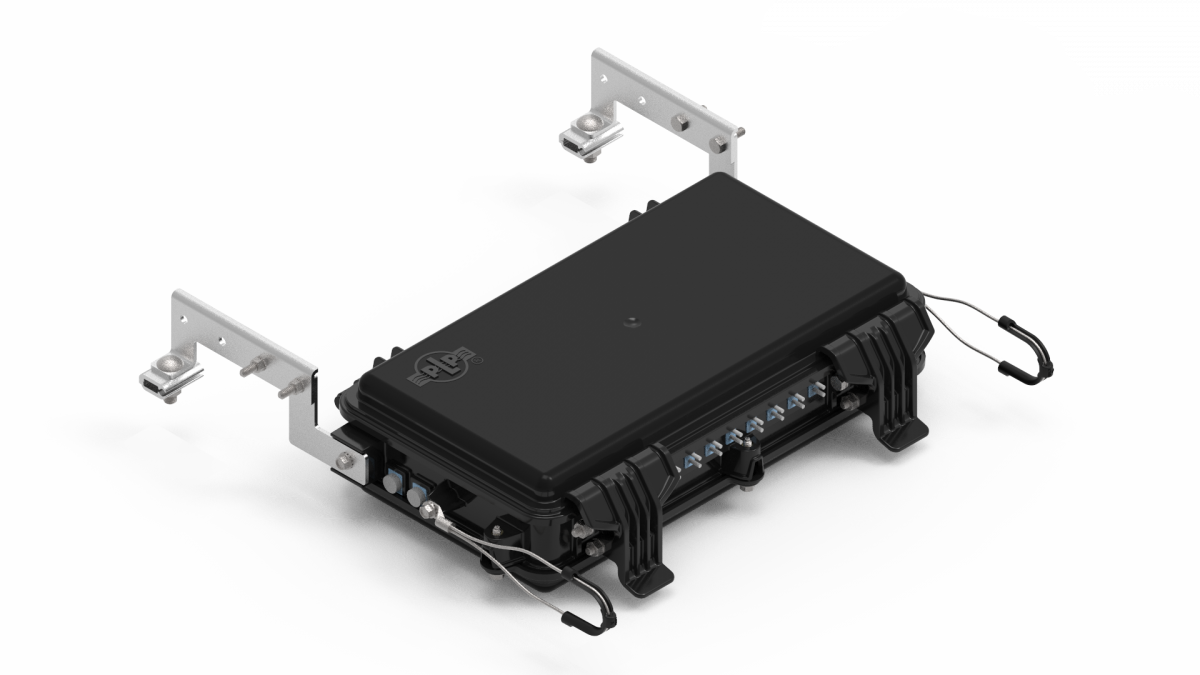

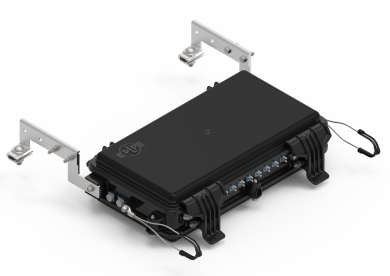

COYOTE® ATC

Size: 17" x 10" x 4" (432 x 254 x 102 mm)
Max Splice Capacity: 48
Max Adapter Capacity: 16
Grommet Quantity: Splice Chamber - 4 Drop Chamber - 8
Application: Aerial
Adapter Types Supported: SCAPC, SCUPC, LCAPC, LCUPC

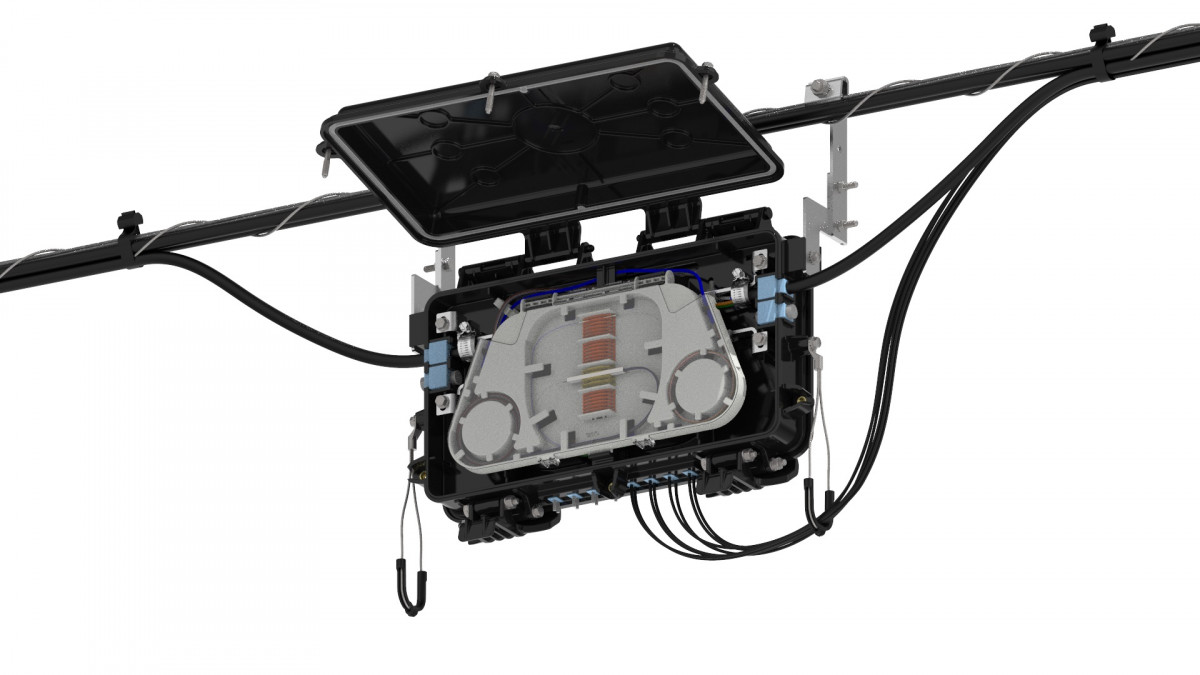

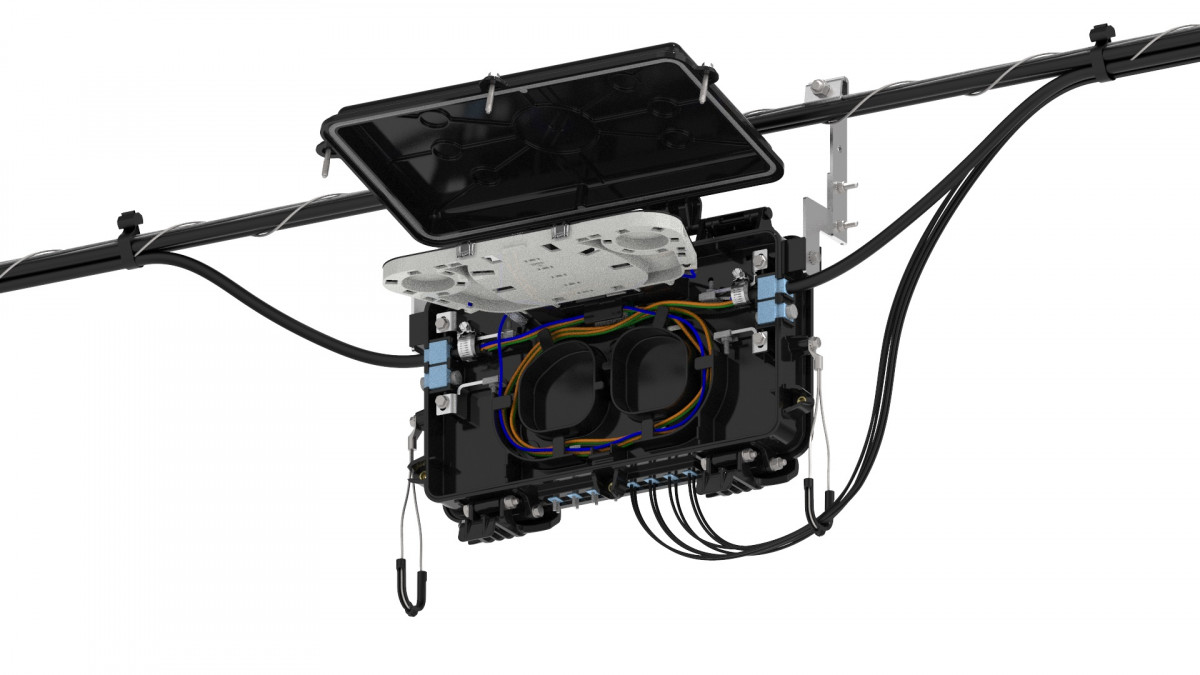

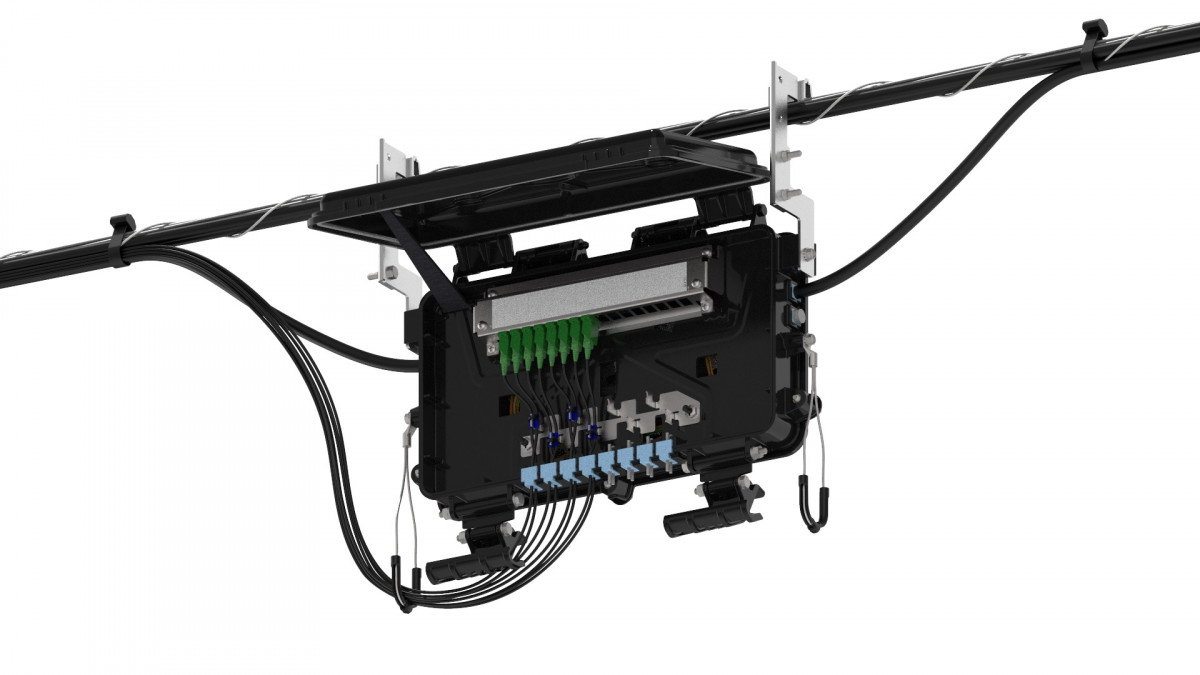

The COYOTE ATC (Aerial Terminal Closure) is an aerial closure system designed to support the drop distribution network without the need for specialized drop cable assemblies. The closure features a unique dual chamber design with independent access to the splice/slack storage chamber and to the drop connection chamber. The cover latch system expedites access for drop installation and the fasteners secure the splice chamber cover to restrict access after initial installation. Inside the closure is a large slack storage area and splice tray system which supports single fusion, mass fusion, mechanical splice protectors, or splitter technology.

Specially designed for aerial applications to provide superior performance in overhead installations
Supports up to 48 single fusion splices, allowing for efficient fiber management
Accommodates up to 16 Simplex SC or 16 Duplex LC adapters, ensuring versatile connectivity options
Equipped with 4 splice chamber grommets and 8 drop chamber grommets, with multi-hole options available
Splice chamber grommets accommodate cable diameters from 0.156" to 0.55" (4 - 14 mm), while drop chamber grommets accommodate diameters from 0.093" to 0.22" (2.4 - 5.6 mm), including flat drop and ROC™ drop cables
Designed and tested in accordance to Telcordia^® GR-771-CORE Above Grade, IP-55 Rated Requirements
Constructed out of rugged UV-stabilized, flame retardant material (UL94-5VA Rated)
Dual cover design allows independent access to each closure chamber
