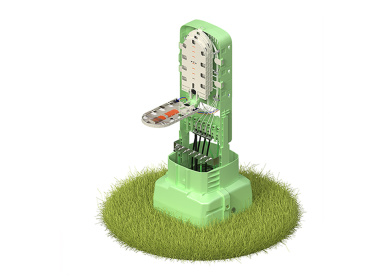

COYOTE® 10" Pedestal

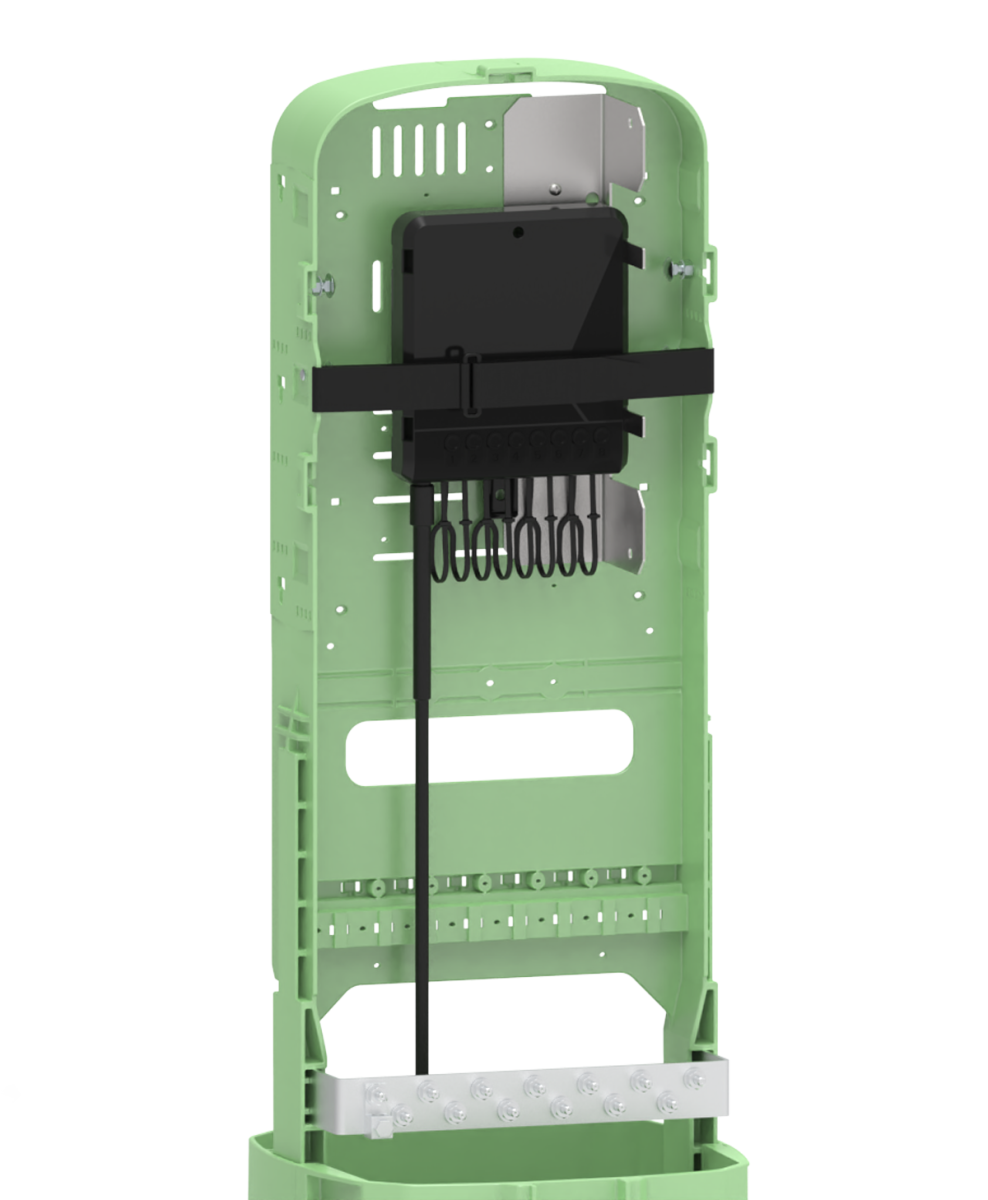

COYOTE Pedestals provide easy customization options to adapt to your fiber or copper splicing needs at each location in your network. Each pedestal is pre-assembled and can be configured to accept various fiber optic splice tray types, fiber or copper terminals, fiber cross-connect bulkheads, or management brackets for copper splices. In addition, the organizer can be removed and a metal frame can be inserted into the base to attach fiber closures and cabinets, such as the COYOTE STP-L, STP-XL, and COYOTE PedBox®, to provide additional protection for your splices. The versatility that COYOTE Pedestals provide allows you to create the network you desire.

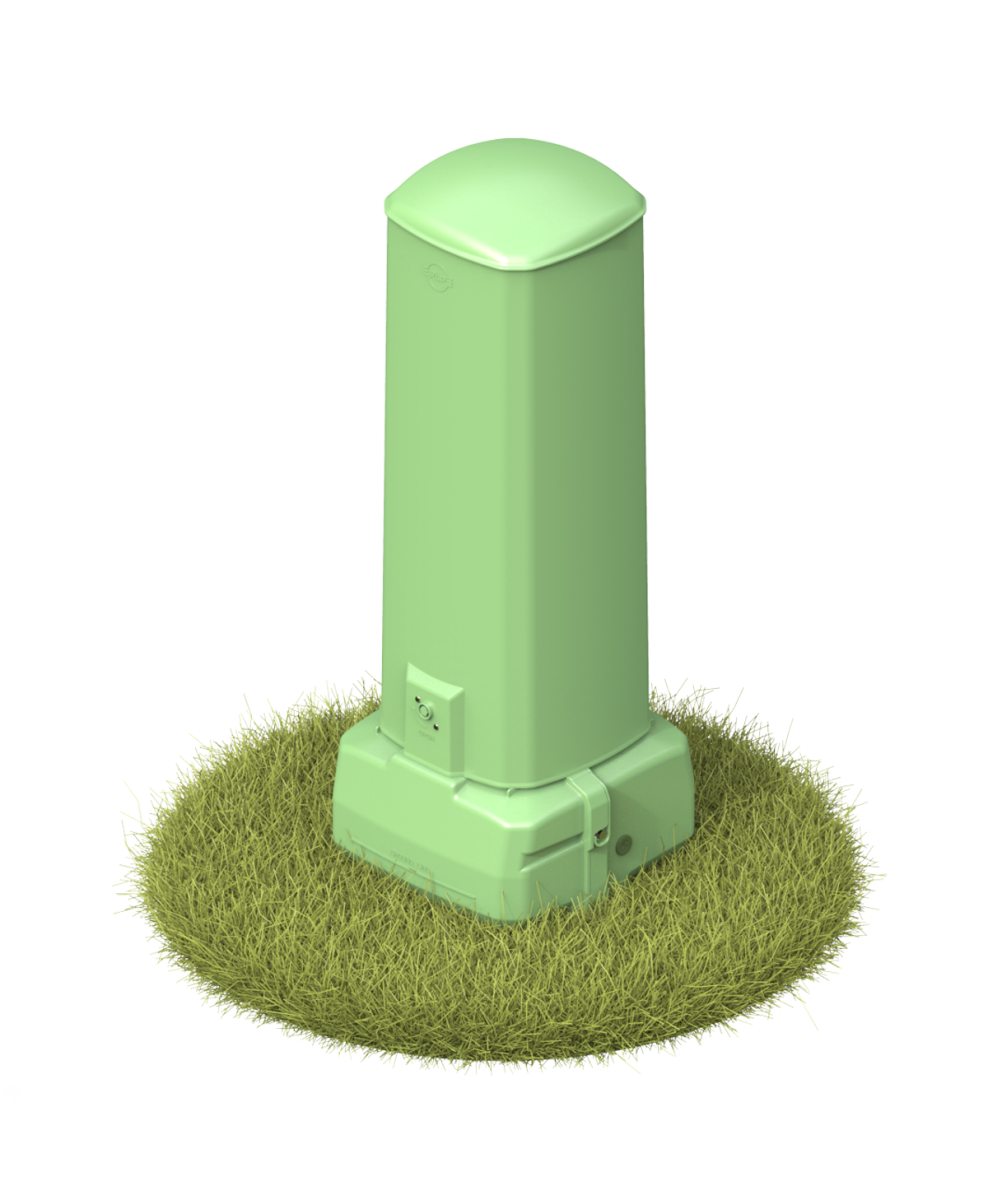

  • Each pedestal ships pre-assembled with a base, automatic locking cover, and internal organizer with a grounding busbar

  • Cover and base are manufactured out of a UV/FR stabilized material designed to withstand weathering

  • Split base design enables easy installation around pre-installed duct/cables and simplifies replacement of existing pedestals

  • Patented automatic cover locking system provides secure access without the need for additional hardware

  • Grounding busbar isolates connections and is equipped with a ground wire terminal (#4 – #10)

  • Supports a wide range of fiber and copper applications, including splicing, terminals, hardened connectivity, and cross-connects

  • Organizer accepts COYOTE Flip Trays, LITE-GRIP® Splice Trays, and Legacy Splice Trays for maximum flexibility

  • Metal frame organizer can be ordered with dual offset brackets or STP Pro Series mounting brackets

  • All fasteners are constructed of stainless steel to prohibit corrosion and can be secured or loosened using common tools (216 can wrench, 1/4" nut driver, or Phillips screwdriver)

  • Designed and tested in accordance with GR-13-CORE requirements

Product Information

COYOTE 10" Pedestal - Sell Sheet



Installation Instructions

SP3787 (COYOTE 10" Pedestal with Universal Organizer)

SP3786 (COYOTE 10" Pedestal with Metal Frame)

SP3801 (COYOTE 10" Pedestal LITE-GRIP Splice Tray Kit)

SP3802 (COYOTE 10" Pedestal Flip Tray Installation)

SP3803 (COYOTE 10" Pedestal Copper Waterfall Handle Kit)

SP3804 (COYOTE 10" Pedestal Expanded Buffer Tube Storage Brackets

COYOTE 10" Pedestal with Universal Organizer
 Catalog Number Description

COYPED10-UOS

COYOTE® 10" Pedestal, Universal Organizer with Anchor Stake – Includes (1) 10" Pedestal, Universal Organizer with Busbar and Split Base, (1) Dome, (1) Small Parts Bag, (2) Cable Retention Kits, and (1) Anchor Stake with Attachment Hardware
COYPED10-UON COYOTE 10" Pedestal, Universal Organizer without Anchor Stake - Includes (1) 10" Pedestal, Universal Organizer with Busbar and Split Base, (1) Dome, (1) Small Parts Bag, and (2) Cable Retention Kits

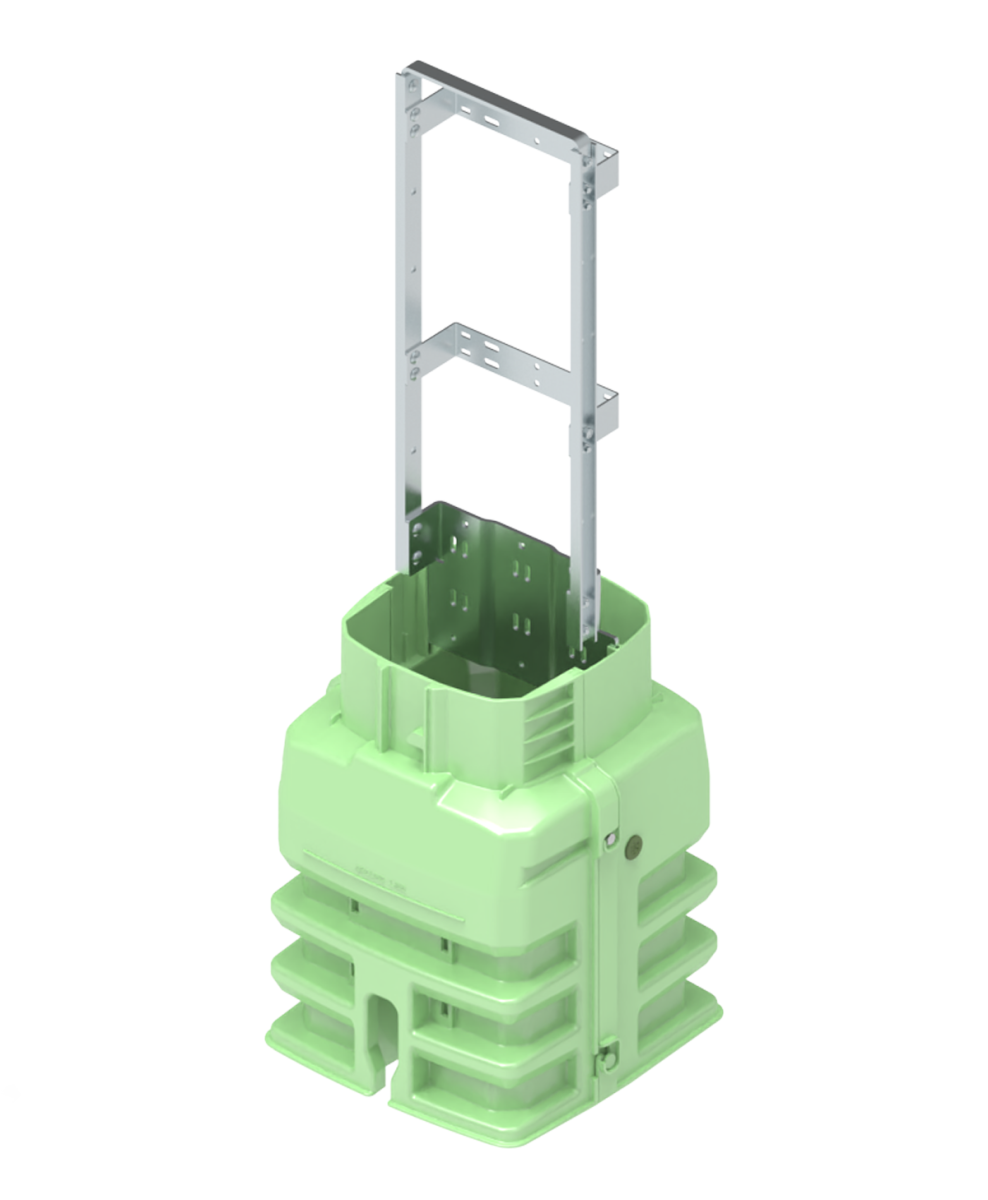

COYOTE 10" Pedestal with Metal Frame
 Catalog Number Description

COYPED10-MFDOS

COYOTE® 10" Pedestal, Metal Frame with Dual Offset Brackets with Anchor Stake – Includes (1) 10" Pedestal, Metal Frame and Split Base, (1) Dome, and (1) Anchor Stake with Attachment Hardware

COYPED10-MFDON

COYOTE® 10" Pedestal, Metal Frame with Dual Offset Brackets without Anchor Stake – Includes (1) 10" Pedestal, Metal Frame and Split Base, and (1) Dome

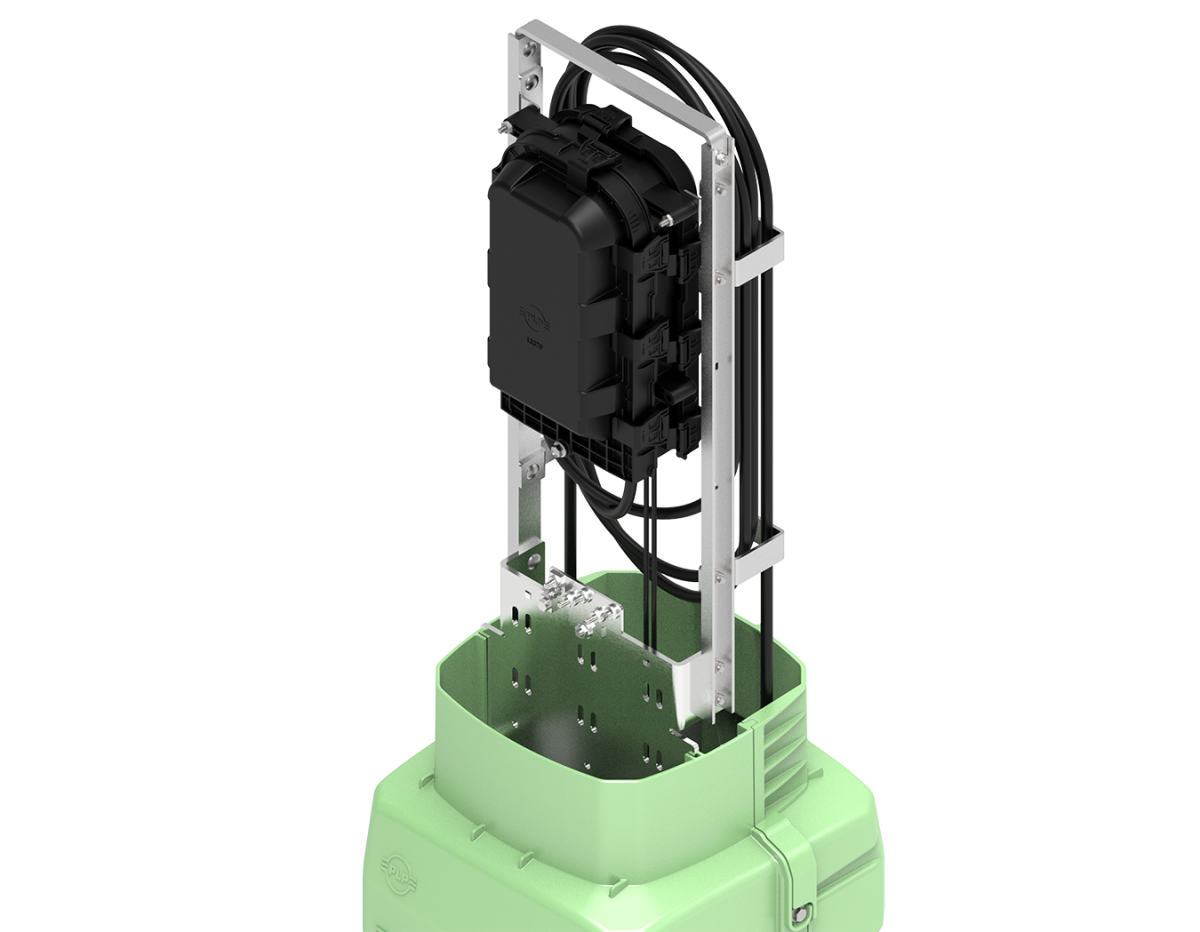

COYPED10-MFSTPS
 COYOTE® 10" Pedestal, Metal Frame, STP Pro Series Brackets with Anchor Stake – Includes (1) 10" Pedestal, Metal Frame and Split Base, (1) Dome, (1) STP Pro Series Mounting Hardware Bag, and (1) Anchor Stake with Attachment Hardware
COYPED10-MFSTPN
 COYOTE® 10" Pedestal, Metal Frame, STP Pro Series Brackets without Anchor Stake – Includes (1) 10" Pedestal, Metal Frame and Split Base, (1) Dome, and (1) STP Pro Series Mounting Hardware Bag
