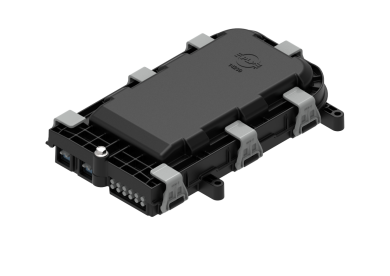

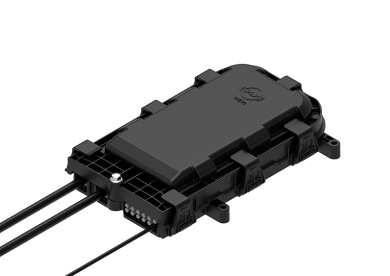

COYOTE® STP-L
Utilizing a similar design to PLP’s original COYOTE STP Closure, the STP-L is a compact drop distribution closure that is designed to provide maximum adaptability to various splicing and connectivity applications. The STP-L easily accommodates unique splicing needs with interchangeable organizers supporting diverse connectivity requirements, multiple cover options, and a universal cable restraint system. The robust latch system, conical grommet design, and integrated over-molded cover enable quick re-entry that is designed to provide a secure seal over a wide range of cable profiles.
Application Procedures
SP3715 – STP-L Application Procedure
SP3772 – STP Pro Series Aerial Hanging Bracket
SP3618 – STP Pro Series Bulkhead Application Procedure
Sales Materials
• Single chamber design of the STP-L provides a compact solution for splice applications
• Integrated over-molded cover options are quickly assembled and removed from the closure
• Robust latch system and unique grommet design enable quick re-entry and re-use
• Universal cable restraint system works across the entire STP Pro platform
• Various base designs allow for a multitude of combinations of feed and drop cables in a compact design
• Conical grommet options support a wide range of cable diameters
• Constructed from a high-strength, UV-stabilized, flame-retardant material
• Designed and tested in accordance to Telcordia® GR-771-CORE Buried, Underground, IP-68 Rated Requirements
COYOTE STP-L 3-Port Base Closure Kits
| Catalog Number | Description |
| STP-L3-48-001 | COYOTE STP-L Closure with 3-Port Base – Includes (1) Shallow Cover, (2) Small Conical Grommets 0.17" - 0.40" (4.3 - 10.2 mm), (2) Large Conical Grommets 0.40" - 0.55" (10.2 - 14 mm), (1) 12-Hole Drop Grommet 0.193 - 0.201" (4.9 - 5.1 mm), and (2) 24 CT. Splice Trays |
| STP-L3-48-002 | COYOTE STP-L Closure with 3-Port Base – Includes (1) Shallow Cover, (2) Small Conical Grommets 0.17" - 0.40" (4.3 - 10.2 mm), (2) Large Conical Grommets 0.40" - 0.55" (10.2 - 14 mm), (1) 6-Hole Flat Drop Grommet, and (2) 24 CT. Splice Trays |
| STP-L3-96-001 | COYOTE STP-L Closure 3-Port Base – Includes (1) Deep Cover, (2) Small Conical Grommets 0.17" - 0.40" (4.3 - 10.2 mm), (2) Large Conical Grommets 0.40" - 0.55" (10.2 - 14 mm), (1) 12-Hole Drop Grommet 0.193 - 0.201" (4.9 - 5.1 mm), and (4) 24 CT. Splice Trays |
| STP-L3-96-002 | COYOTE STP-L Closure with 3-Port Base – Includes (1) Deep Cover, (2) Small Conical Grommets 0.17" - 0.40" (4.3 - 10.2 mm), (2) Large Conical Grommets 0.40" - 0.55" (10.2 - 14 mm), (1) 6-Hole Flat Drop Grommet, and (4) 24 CT. Splice Trays |
| All kits include (1) COYOTE STP-L 3-Port Base Assembly with Universal Organizer, (1) Cover, (2) Grommet Kits and Cable Restraint Hardware. Hanger Brackets are sold separately. | |
COYOTE STP-L 4-Port Base Closure Kits
| Catalog Number | Description |
| STP-L4-48-001 | COYOTE STP-L Closure with 4-Port Base – Includes (1) Shallow Cover, (2) Small Conical Grommets 0.17" - 0.40" (4.3 - 10.2 mm), (2) Large Conical Grommets 0.40" - 0.55" (10.2 - 14 mm), and (2) 24 CT. Splice Trays |
| STP-L4-48-002 | COYOTE STP-L Closure with 4-Port Base – Includes (1) Shallow Cover, (2) Small Conical Grommets 0.17" - 0.40" (4.3 - 10.2 mm) , (2) Large Conical Grommets 0.40" - 0.55" (10.2 - 14 mm), (2) 2-Hole Flat Drop Grommets, and (2) 24 CT. Splice Trays |
| STP-L4-48-003 | COYOTE STP-L Closure with 4-Port Base – Includes (1) Shallow Cover, (2) Small Conical Grommets 0.17" - 0.40" (4.3 - 10.2 mm), (2) Large Conical Grommets 0.40" - 0.55" (10.2 - 14 mm), (2) 2-Hole ROC™ Drop Grommets, and (2) 24 CT. Splice Trays |
| STP-L3-96-001 | COYOTE STP-L Closure with 4-Port Base – Includes (1) Deep Cover, (2) Small Conical Grommets 0.17" - 0.40" (4.3 - 10.2 mm), (2) Large Conical Grommets 0.40" - 0.55" (10.2 - 14 mm), and (4) 24 CT. Splice Trays |
| STP-L3-96-002 | COYOTE STP-L Closure with 4-Port Base – Includes (1) Deep Cover, (2) Small Conical Grommets 0.17" - 0.40" (4.3 - 10.2 mm) , (2) Large Conical Grommets 0.40" - 0.55" (10.2 - 14 mm), (2) 2-Hole Flat Drop Grommets, and (4) 24 CT. Splice Trays |
| STP-L4-96-003 | COYOTE STP-L Closure with 4-Port Base – Includes (1) Deep Cover, (2) Small Conical Grommets 0.17" - 0.40" (4.3 - 10.2 mm), (2) Large Conical Grommets 0.40" - 0.55" (10.2 - 14 mm), (2) 2-Hole ROC Drop Grommets, and (4) 24 CT. Splice Trays |
| All kits include (1) COYOTE STP-L 4-Port Base Assembly with Universal Organizer, (1) Cover, Grommet Kit(s) and Cable Restraint Hardware. Hanger Brackets are sold separately. | |
Accessory Kits for COYOTE STP Pro Series
| Catalog Number | Description | ||||||||||||
| STPXL-TK-002 | Splice Tray Kit – Includes (1) Splice Tray, (1) Cover, (2) 12 CT. Single Fusion Splice Blocks, (2) LITE-GRIP® Retention Sleeves for Microtube, (2) LITE-GRIP Retention Sleeves for Buffer Tubes, (2) LITE-GRIP Retention Sleeves for Micro Buffer Tubes, (1) Felt Strip, and (12) Cable Ties | ||||||||||||
| STPXL-EK-001 | Splice Tray Extension Kit – Includes (1) Deep Cover, and (1) Expansion Piece | ||||||||||||
| 80813747 | Deep Cover Kit - Includes (1) Deep Cover and Silicone Lubricant | ||||||||||||
| 8004153 | Splice Block Kit - Includes (6) 48 CT. Mass Fusion or Splitter Splice Blocks, Mustard | ||||||||||||
|
Mounting Bracket Kits for COYOTE STP Pro Series
|
|||||||||||||
