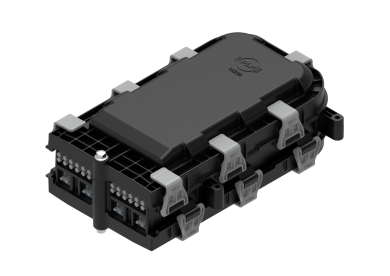

COYOTE® STP-XL

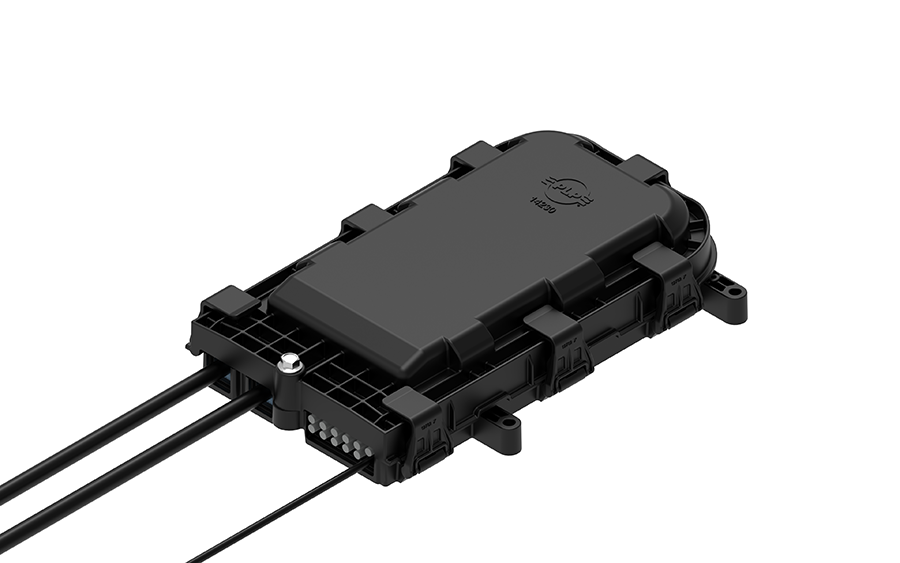

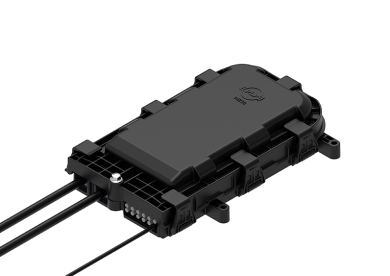

Utilizing a similar design to PLP’s original COYOTE STP Closure, the STP Pro Series (STP-L, STP-XL) includes a range of compact drop distribution options that provide maximum adaptability to various splicing and connectivity applications. The STP Pro Series easily accommodates unique splicing needs with interchangeable organizers supporting diverse connectivity requirements, multiple cover options, and a universal cable restraint system that works across the entire Pro platform. The robust latch system, conical grommet design, and integrated over-molded cover enable quick re-entry and provide a secure seal over a wide range of cable profiles.
Application Procedures
SP3722 – STP-XL Application Procedure
SP3772 – STP Pro Series Aerial Hanging Bracket
SP3618 – STP Pro Series Bulkhead Application Procedure
Sales Materials
CO-SS-1335 – STP-XL Sell Sheet
• Dual chamber design of the STP-XL provides independent access to both the splice/slack storage chamber and the drop connection chamber
• Integrated over-molded cover options are quickly interchangeable between the splice/slack storage chamber and the drop chamber to easily increase splice capacity
• Robust latch system and unique grommet design enable quick re-entry and re-use
• Universal cable restraint system works across the entire STP Pro platform
• Drop chamber design supports up to 24 drops (4.9 - 5.2 mm) and 8 fl at drops
• Conical grommet options support a wide range of cable diameters
• Constructed from a high-strength, UV-stabilized, fl ame-retardant material
• Designed and tested in accordance to Telcordia® GR-771-CORE Buried, Underground, IP-68 Rated Requirements
COYOTE STP-XL 6-Port Base Closure Kits
| Catalog Number | Description |
| STP-XL6-48-001 | COYOTE STP-L Closure with 3-Port Base – Includes (1) Shallow Cover, (2) Small Conical Grommets 0.17" - 0.40" (4.3 - 10.2 mm), (2) Large Conical Grommets 0.40" - 0.55" (10.2 - 14 mm), (1) 12-Hole Drop Grommet 0.193 - 0.201" (4.9 - 5.1 mm), and (2) 24 CT. Splice Trays |
| STP-XL6-96-001 | COYOTE STP-L Closure with 3-Port Base – Includes (1) Shallow Cover, (2) Small Conical Grommets 0.17" - 0.40" (4.3 - 10.2 mm), (2) Large Conical Grommets 0.40" - 0.55" (10.2 - 14 mm), (1) 6-Hole Flat Drop Grommet, and (2) 24 CT. Splice Trays |
| All kits include (1) COYOTE STP-XL 6-Port Base Assembly with Universal Organizer and Drop Tray, (2) Covers, (8) Grommets and Cable Restraint Hardware. Hanger Brackets are sold separately. | |
COYOTE STP-XL 8-Port Base Closure Kits
| Catalog Number | Description |
| STP-XL8-48-002 | COYOTE STP-XL Closure with 8-Port Base – Includes (2) Shallow Covers, (4) Small Conical Grommets 0.17" - 0.40" (4.3 - 10.2 mm), (2) Large Conical Grommets 0.40" - 0.55" (10.2 -14 mm), (4) 2-Hole Flat Drop Grommets, and (2) 24 CT. Splice Trays |
| STP-XL8-48-003 | COYOTE STP-XL Closure with 8-Port Base – Includes (2) Shallow Covers, (4) Small Conical Grommets 0.17" - 0.40" (4.3 - 10.2 mm), (2) Large Conical Grommets 0.40" - 0.55" (10.2 -14 mm), (4) 2-Hole ROCTM Drop Grommets, and (2) 24 CT. Splice Trays |
| STP-XL8-96-002 | COYOTE STP-XL Closure with 8-Port Base – Includes (1) Shallow Cover, (1) Deep Cover, (4) Small Conical Grommets 0.17" - 0.40" (4.3 - 10.2 mm), (2) Large Conical Grommets 0.40" - 0.55" (10.2 - 14 mm), (4) 2-Hole Flat Drop Grommets, and (4) 24 CT. Splice Trays |
| STP-XL8-96-003 | COYOTE STP-XL Closure with 8-Port Base – Includes (1) Shallow Cover, (1) Deep Cover, (4) Small Conical Grommets 0.17" - 0.40" (4.3 - 10.2 mm), (2) Large Conical Grommets 0.40" - 0.55" (10.2 - 14 mm), (4) 2-Hole ROCTM Drop Grommets, and (4) 24 CT. Splice Trays |
| All kits include (1) COYOTE STP-XL 8-Port Base Assembly with Universal Organizer and Drop Tray, (2) Covers, (10) Grommets and Cable Restraint Hardware. Hanger Brackets are sold separately. | |
Accessory Kits for COYOTE STP Pro Series
| Catalog Number | Description | ||||||||||||||||||||||||||||||||||||||||||||
| STPXL-TK-002 | Splice Tray Kit – Includes (1) Splice Tray, (1) Cover, (2) 12 CT. Single Fusion Splice Blocks, (2) LITE-GRIP® Retention Sleeves for Microtube, (2) LITE-GRIP Retention Sleeves for Buffer Tubes, (2) LITE-GRIP Retention Sleeves for Micro Buffer Tubes, (1) Felt Strip, and (12) Cable Ties | ||||||||||||||||||||||||||||||||||||||||||||
| 80814576 | Standard Cross-Connect Adapter Bulkhead – Empty. Used with flangeless adapters only. Supports up to 6 dual SC or quad LC adapters. | ||||||||||||||||||||||||||||||||||||||||||||
| 80814614 | Deep Cross-Connect Adapter Bulkhead – Empty. Used with flangeless adapters only. Supports up to 12 dual SC or quad LC adapters. NOTE: Needs to be used in conjunction with a deep cover (Catalog Number: 80813747). | ||||||||||||||||||||||||||||||||||||||||||||
| STPXL-EK-001 | Splice Tray Extension Kit – Includes (1) Deep Cover, and (1) Expansion Piece | ||||||||||||||||||||||||||||||||||||||||||||
| 80813747 | Deep Cover Kit - Includes (1) Deep Cover and Silicone Lubricant | ||||||||||||||||||||||||||||||||||||||||||||
| 8084153 | Splice Block Kit - Includes (6) 48 CT. Mass Fusion or Splitter Splice Blocks, Mustard | ||||||||||||||||||||||||||||||||||||||||||||
| 80814575 | Cover Tether Kit | ||||||||||||||||||||||||||||||||||||||||||||
|
Cross-Connect Accessory Kits for COYOTE STP Pro Series
Mounting Bracket Kits for COYOTE STP Pro Series
|
|||||||||||||||||||||||||||||||||||||||||||||
