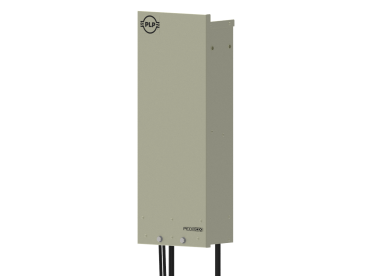

COYOTE® PedBox

COYOTE® PedBoxTM is an outdoor distribution splice enclosure that can be mounted inside a pedestal. The flexible pre-slit silicone grommets allow for easy installation for a wide range of flat and round cables in any weather condition. The splice platform can be removed to allow access to slack storage or to move away from the pedestal. The base comes with a ground stud for common bonding practices The included mounting bracket allows the closure to be mounted on the side or back of the 10˚ or larger pedestal.

  • Pre-slit silicone grommets allow for easy installation in any weather condition
  • Flexible grommet technology supports a wide range of flat and round cable profiles
  • Removable splice platform allows splice trays to be moved from the pedestal to a more suitable working environment
  • Can be mounted in pedestals 10˚ in diameter or larger
  • Included pedestal mounting bracket can be attached to side or back



Sales Material

COYOTE® PedBoxTM



Catalog

COYOTE® PedBoxTM





Application Procedure

SP-3605-1 COYOTE® PedBoxTM Installation Instructions

 COYOTE PEDBOX Closure Kits
Catalog Number  Description
80061728

COYOTE PedBox – Includes (2) 1-Hole Grommets 0.393"-0.523", (3) 1-Hole Grommets 0.524"-0.649", (1) 6-Hole Grommet 0.137"-0.256" & Flat Drop Cable, and (1) Thin
Profile Single Fusion Splice Tray, 36 CT.
80061729

COYOTE PedBox – Includes (3) 1-Hole Grommets 0.393"-0.523", (2) 4-Hole Grommets 0.296"-0.394", (1) 6-Hole Grommet 0.137"-0.256" & Flat Drop Cable, and (1) Thin Profile Single Fusion Splice Tray, 36 CT.
