POWER RAIL™
The POWER RAIL™ top-clamping mounting system is designed with the professional PV solar installer in mind. The top-clamping rails utilize a single tool with a revolutionary RAD™ Fastener for faster bolt placement. The unique shape of the RAD provides an anti-rotation feature, locking the bolt in the proper orientation when installed. The high-strength rigid rails also include an integral wiring channel for securing cables and providing a professional finish. The POWER RAIL Mounting System features the industry’s broadest selection of mounting supports, designed for secure and watertight attachments to any roof style.
-
High-strength, top-clamping mounting system
-
Parallel to roof or tilted applications
-
Eight rail options for optimal span-to-cost ratio - P6, P8, P14, UD
-
Single tool assembly
-
Heavy-duty stainless steel hardware with tighter module spacing
-

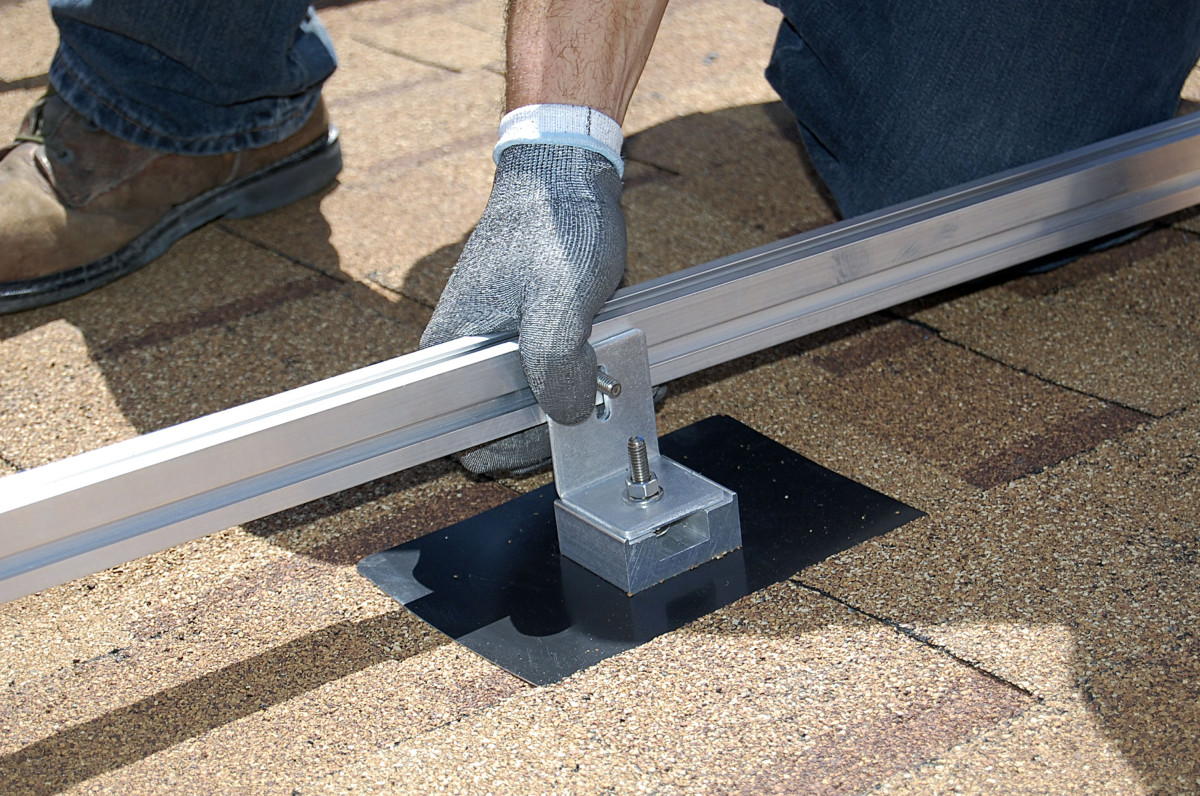

Mounting feet and attachment options available for any style roof application
-
Residential and commercial applications
-
Patented RAD™ Lock-in-Place Bolt
-
Integrated grounding
-
UL 2703 Code Compliant
Product Information
POWER RAIL Configurator Design Tool
Installation Instructions
Corrugated Mounting Bridges Installation Guidelines
Easy Feet™ Installation Guidelines
Easy Power Post™ Installation Guidelines
POWER RAIL Two-Tier Tilt-Kit Assembly Instructions
P6 Tilt-Kit Assembly Instructions
P8 Tilt-Kit Assembly Instructions
POWER RAIL Commercial Mounting System UD, Rail Installation Guidelines (SP3474-1)
Compliance Certificates
7-05, Exposure B
P14 Code ASCE 7-05, Exposure B
7-05, Exposure C
P14 Code ASCE 7-05, Exposure C
7-10, Exposure B
P14 Code ASCE 7-10, Exposure B
7-10, Exposure C
Design Your Next Project
POWER RAIL™ Design Tool
- Optimize your roof and structure mount layouts and material selections.
- Built-in code-compliant engineering and simple user interface.
