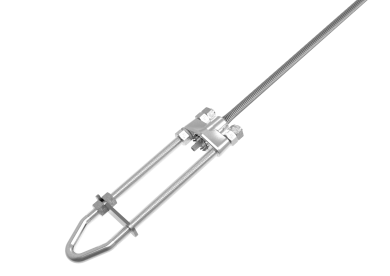

VARI-GRIP™ Dead-End
The VARI-GRIP Dead-End features a unique housing, wedge, and rod assembly is designed to provide a holding strength of 100% of the strand's rated breaking load. The high-strength U-Bolt allows for adjusting the guy strand tension without the need for a turnbuckle.
The VARI-GRIP Gen2 Dead-End (available for select applications) allows for proper U-bolt support without the need for conformal castings. The new Gen2 design is also lighter while still maintaining the same holding strength features as the standard design.
VARI-GRIP Link Plates are available as an easy-to-install anchoring accessory for VARI-GRIP Dead-Ends as an alternative to anchor shackles. The assemblies use a bolt, nut, and cotter pin setup, offering security of anchor shackles. VARI-GRIP Link Plates can be used in new construction and retrofit applications.

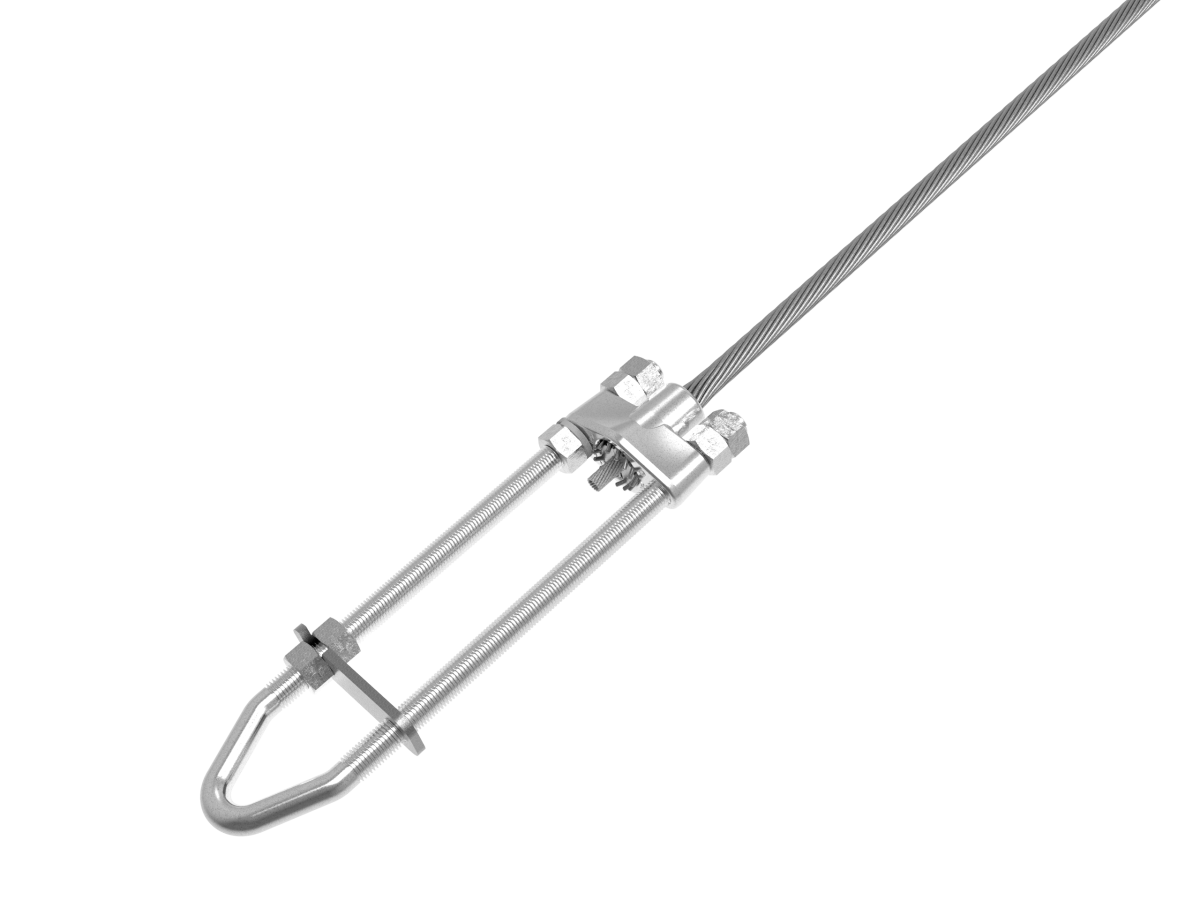

VARI-GRIP Dead-End
- Retaining rods are made from a material that is compatible with the guy strand material
(e.g., aluminum-clad steel rods for aluminum-clad steel guy strand) - Available for strand sizes of 7/16" to 1.78" (20,800 - 295,500 lbs)
- Take-up U-Bolts in sizes 0" and 18" are available for most strand sizes
VARI-GRIP Gen2 Dead-End
- Allows for proper U-bolt support without the need for conformal castings
- Lighter design while still maintaining the same holding strength features as the standard design

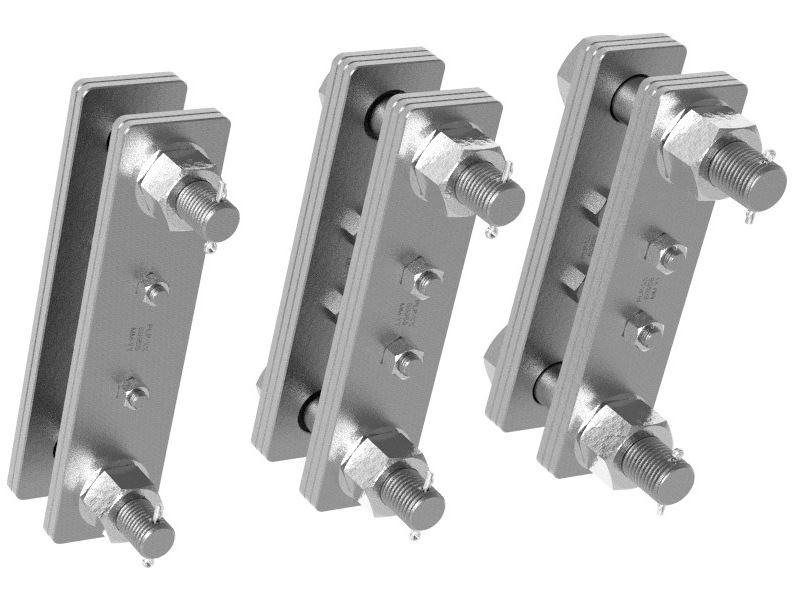

VARI-GRIP Dead-End Link Plates
- Made of hot-dipped galvanized steel
- Bolt, nut, and cotter pin for durability and security
- Rated for 100% of the RBS of the strand installed
- Works with dual or single anchor plates
- Comes pre-assembled for ease of installation
- Can be used with galvanized steel EHS strand and Bridge strand
Application Procedures
SP3544 - VARI-GRIPTM Link Plates
SP3641 - VARI-GRIP G2 Dead-End
Catalog Pages
VARI-GRIP Dead-End - Guying Solutions Catalog
VARI-GRIP Dead-End - Energy Transmission Catalog
VARI-GRIP Dead-End - Tower & Antenna Catalog
Sales Materials
Dimensional Data
| Strand Range in |
A | B | C | D | E | F | G | H | I (0") | I (18") | Design |
|
0.438 - 0.500" |
5/8" |
3-1/4" |
3-1/4 | 1-1/16 | 3-17/32 | 4-3/4 | 15/16 | See rod length in table | N/A | 29-9/16" | Standard |
| 0.546 - 0.661" | 3/4" | 3-1/2" | 3-9/16 | 1-1/8 | 2-13/16 | 5-3/16 | 19/32 | 11-11/16" | 28-5/16" | Standard | |
| 0.744 - 0.914" | 1" | 4-1/2" | 4-3/4 | 1-1/2 | 3-5/16 | 6-11/16 | 5/8 | 12-11/16" | 33-3/16" | Gen2 | |
| 0.915" - 1.034" | 1-1/8" | 4-15/16" | 5-3/8 | 1-5/8 | 3-5/8 | 7-5/8 | 3/4 | 14" | 33-1/2" | Standard | |
| 1.250 - 1.460" | 1-1/2" | 7-1/4" | 7-1/8 | 2-5/16 | 5-1/4 | 10-1/8 | 2-1/16 | 20-3/4" | 39-15/16" | Standard | |
| 1.500 - 1.640" |
1-3/4" |
7-1/4" | 8-3/16 | 2-5/8 | 5-9/16 | 11-11/16 | 2-1/2 | 22-1/2" | 42-3/4" | Standard | |
| 1.78" | 1-3/4" | 8-3/4" | 8-3/16 | 2-5/8 | 6-5/8 | 12-3/8 | 2-1/2 | 22-1/2" | 42-3/4" | Standard |
Aluminum Clad Steel Strand (Left-Hand Lay)
| Catalog Number | Catalog Number |
Strand | U-Bolt | Rods per Set | Rod Length |
Subset | Color Code | Rated Holding Strength | Design | ||
| Construction | Nominal Range in |
||||||||||
| 0" Take Up | 18" Take Up | Min | Max | in | in | lb | |||||
|
N/A |
VG-18-3000 |
7#5 |
0.546 | 0.546 | 3/4 | 12 | 26 | 3-3-3-3 | Yellow |
27,030 |
Standard |
| N/A |
VG-18-3100 |
19#9 |
0.572 | 0.572 | 3/4 | 11 | 28 | 3-4-4 | Orange |
34,290 |
Standard |
|
VG-0-3101 |
VG-18-3101 |
19#8 |
0.636 | 0.661 | 1 | 11 | 32 | 3-4-4 | Black |
42,240 |
Standard |
|
VG-0-3102 |
VG-18-3102 |
19#7 |
0.713 |
0.714 | 1 | 12 | 35 | 3-3-3-3 | Yellow | 51,730 52,950 |
Standard |
|
VG-0-3103BR |
VG-18-3103BR | 19#6 37#9 |
0.800 | 0.810 | 1 | 12 | 46 | 3-3-3-3 | Green |
61,700 |
Gen2 |
|
VG-0-3104BR |
VG-18-3104BR |
37#8 | 0.893 | 0.903 | 1 | 12 | 54 | 3-3-3-3 | Yellow | 84,200 |
Gen2 |
|
VG-0-3105BR |
VG-18-3105BR | 19#5 | 0.904 | 0.914 | 1 | 12 | 54 | 3-3-3-3 | Yellow | 73,350 | |
|
VG-0-3106BR |
VG-18-3106BR | 61#10 | 0.911 | 0.921 | 1-1/8 | 13 | 54 | 3-3-3-4 | Yellow | 87,290 | |
| VG-0-3107BR | VG-18-3107BR | 37#7 | 1.000 | 1.010 | 1-1/8 | 14 | 58 | 3-3-4-4 | Green |
100,700 |
|
| VG-0-3108BR | VG-18-3108BR | 61#9 | 1.024 | 1.034 | 1-1/8 | 14 | 76 | 3-3-4-4 | Purple | 110,100 | |
| VG-0-3109BR | VG-18-3109BR | 37#6 | 1.130 | 1.130 | 1-1/8 | 14 | 86 | 3-3-4-4 | Yellow | 120,200 | |
| VG-0-3110 | VG-18-3110 | 61#8 | 1.160 | 1.160 | 1-1/2 | 14 | 98 | 3-3-4-4 | Orange | 138,800 | Standard |
| VG-0-3111 | VG-18-3111 | 37#5 | 1.270 | 1.270 | 1-1/2 | 16 | 105 | 4-4-4-4 | Red | 142,800 | |
|
VG-61#7-0 |
VG-61#7-18 | 61#7 | 1.300 | 1.300 | 1-1/2 | 16 | 106 | 4-4-4-4 | Blue | 166,100 | |
|
VG-61#6-0 |
VG-61#6-18 | 61#6 | 1.460 | 1.460 | 1-1/2 | 18 | 116 | 3-3-4-4-4 | Green | 198,100 | |
| VG-61#5-0 | VG-61#5-18 | 61#5 | 1.640 | 1.640 | 1-3/4 | 20 | 129 | 4-4-4-4-4 | Orange | 235,500 | |
| VG-91#6-0 | VG-91#6-18 |
91#6 |
1.780 | 1.780 | 1-3/4 | 18 |
165 |
3-3-4-4-4 |
Red |
295,500 |
|
Galvanized Steel Extra High-Strength Strand (Left-Hand Lay)
| Catalog Number | Catalog Number |
Strand | U-Bolt Diameter |
Rods per Set | Rod Length |
Subset | Color Code |
Rated Holding Strength lb |
||||
| Nominal Size |
Construction | Nominal Range in |
||||||||||
| 0" Take Up | 18" Take Up | in | Min | Max | in | Design | ||||||
|
N/A |
VG-18-2100 |
7/16 |
7W |
0.438 | 0.438 | 5/8 | 11 | 27 | 3-3-3-3 | Yellow |
27,030 |
Standard |
| N/A |
VG-18-2101 |
1/2 |
7W or 19W |
0.459 | 0.500 | 5/8 | 12 | 30 | 3-4-4 | Orange |
34,290 |
Standard |
|
VG-0-2108 |
VG-18-2108 |
9/16 |
7W or 19W |
0.559 | 0.563 | 3/4 | 11 | 28 | 3-4-4 | Black |
42,240 |
Standard |
|
VG-0-2102 |
VG-18-2102 |
5/8 |
7W or 19W |
0.621 |
0.625 | 3/4 | 11 | 31 | 3-3-3-3 | Yellow | 51,730 52,950 |
Standard |
|
VG-0-2103BR |
VG-18-2103BR | 3/4 | 1 x 19 | 0.744 | 0.754 | 1 | 12 | 44 | 3-3-3-3 | Green |
61,700 |
Gen2 |
|
VG-0-2104BR |
VG-18-2104BR |
7/8 | 1 x 19 | 0.878 | 0.888 | 1 | 13 | 58 | 3-3-3-3 | Yellow | 84,200 |
Gen2 |
|
VG-0-2105BR |
VG-18-2105BR | 1 | 1 x 31 | 1.000 | 1.010 | 1-1/8 | 14 | 66 | 3-3-3-3 | Yellow | 73,350 | |
|
VG-0-2106BR |
VG-18-2106BR | 1-1/8 | 37W | 1.125 | 1.125 | 1-1/8 | 14 | 95 | 3-3-3-4 | Yellow | 87,290 | |
| VG-0-2107 | VG-18-2107 | 1-1/4 | 37W | 1.250 | 1.250 | 1-1/2 | 16 | 103 | 3-3-4-4 | Green |
100,700 |
Standard |

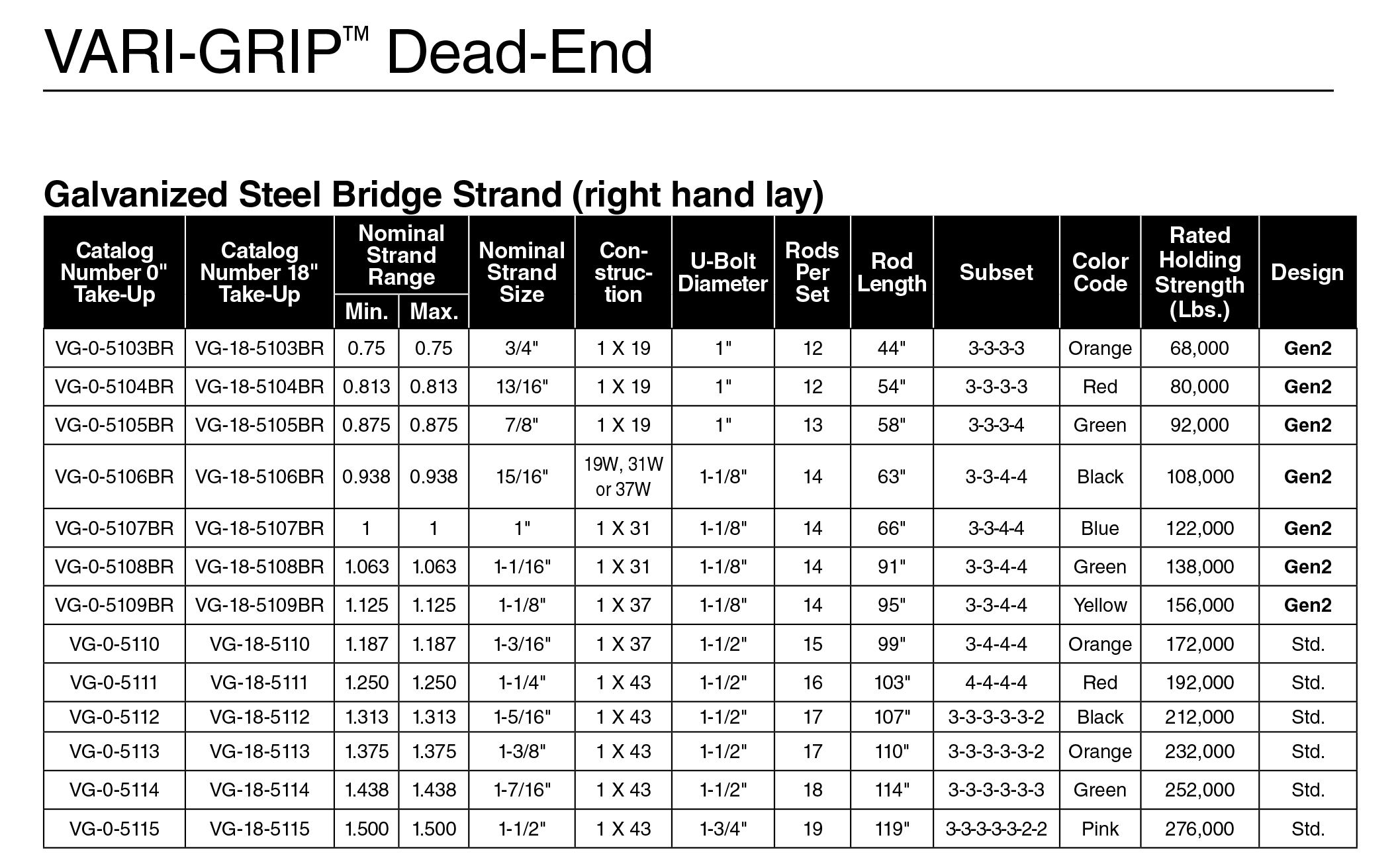

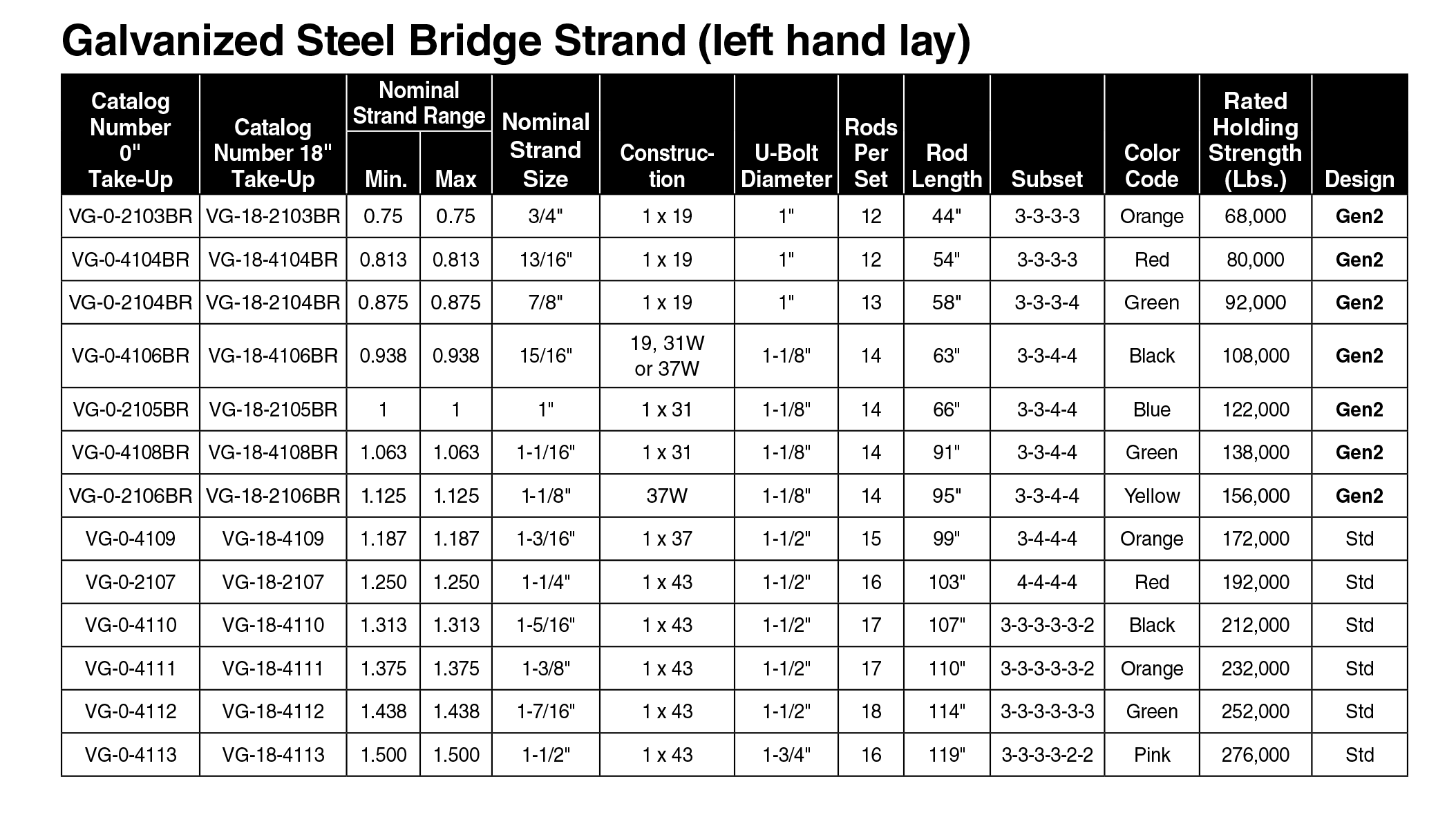

Galvanized Steel Bridge Strand (left-hand lay)
| VARI-GRIP Link Plates | ||||||
| Catalog Number | Max Strength Rating (lbs.) |
Strand Size | Conformal Casting | U-bolt Size (in.) |
Thru hole Diameter (in.) |
Structural Bolt Diameter (in.) |
| VLP-0600 | 42,400 | EHS 7/16" EHS 1/2" EHS 9/16" |
N/A | 5/8-3/4 | 1 | 7/8 |
| VLP-0601 | 80,000 | EHS 3/4" BS 3/4" EHS 7/8" BS 13/16" |
N/A | 1 | 1-1/2 | 1-1/4 |
| VLP-0603 | 108,000 | BS 7/8" EHS 1" BS 15/16" |
N/A | 1-1/8 | 1-1/2 | 1-3/8 |
| VLP-0605 | 156,000 | BS 1" BS 1-1/16" EHS 1-1/8" BS 1-1/8" |
Yes | 1-1/2 | 1-7/8 | 1-3/4 |
| VLP-0606 | 192,000 | BS 1-3/16" EHS 1-1/4" BS 1-1/4" |
Yes | 1-1/2 | 2-3/8 | 2 |
| VLP-0607 | 252,000 | BS 1-5/16" BS 1-3/8" BS 1-7/16" |
Yes | 1-3/4 | 2-3/8 | 2-1/4 |
