INSULIGN® Polymer Spool Insulator

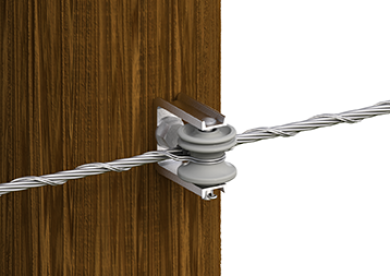

INSULIGN® Polymer Spool Insulators are used to insulate and support primary neutral and secondary (bare or covered) conductors at the pole or house using various clevis mounting configurations. They are compatible with all manufacturers’ hardware designs that are to be used with the ANSI C29.3 Class 53-2 spool insulators. These spool insulators are designed to be used with PLP Spool Ties, Service-Grip Dead-Ends, and EZ-WRAP™ Spool Ties. It is a direct replacement for porcelain spool insulators.
The IP-53-2 spool insulator is manufactured in the USA from a propriety polythylene material. This material is UV stabilized and is very resistant to breaking, chipping, and cracking. The insulators are lightweight at only 0.34 pounds, and like all the PLP polymer insulators, fully recyclable.
- Superior moisture and contamination shedding
- UV stabilized material
- Matched dielectric properties
- High impact resistance
- Lightweight design
- ANSI 29.5 compliant
- Dramatically reduces abrasion
- Ideal for jumpers or stinger wires
- Ideal for use with shot gun sticks
- Manufactured from a proprietary high density polyethylene-based compound
- Tie top designs are perfect for use with all PLP ties
- Two (2) torque bolts included with each Vise Top insulator
Catalog Pages
INSULIGN Polymer Insulators - Catalog Pages
Guide Book for Damaged or Worn Conductors
Overhead Distribution Line Repair Manual
INSULIGN Polymer Spool Insulators
| Catalog Number | ANSI Class1 | Description | Neck Type | Neck Diameter in |
Units per Carton | Weight per Carton lb |
|
IP-53-2 |
53-2 |
Polymer Spool Insulator |
A Neck | 1-3/4 | 48 | 16 |
|
IP-53-2-56 |
53-2 | Polymer Spool Insulator | A Neck | 1-3/4 | 56 | 20 |
|
IP-53-2W |
53-2 | Polymer Spool Insulator - White | A Neck | 1-3/4 | 48 | 16 |
1 Insulators meet the electrical criteria defined in the appropiate ANSI C29 specification
