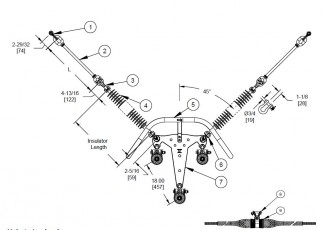

V-String Assembly - Tangent Suspension, Tri-Bundle Conductor, 50K
PLP String Assemblies include a full selection of tower hardware for tangent suspension, angle, and dead-end assemblies. The assemblies are organized by rated voltage values, number of conductors, general assembly type, and vertical strength of the associated insulators.
- All items will arrive in one weather-resistant crate, so all string parts will be delivered at the same time.
- String Assemblies are packaged and marked by string or tower for easy field identification, to minimize handling, and to expedite string installation.
- The number of assemblies per crate can be modified based on customer requirements.
- The catalog numbers provided represent commonly used string configurations. Please contact a PLP sales representative if you are interested in design modifications, or creation of an assembly to your specification.
Notes:
- All galvanizing has been performed per ASTM A153
- Parts with length “L” are variable length and dependent on the string design and line parameters.
- Suspension Clamp and associated attachment hardware sold separately. See the Suspension and Support section of the website for AGS / CGS / Bolted Clamp and Armor Rods options.
- Compression Dead-end Assemblies are sold separately. Please see the Compression Hardware section of the website for ACSR / ACSS / ACCC configurations.
- Corona rings are packaged separately.
- Please see the individual component drawings for detailed dimensions and material properties of parts.
Sales Materials
| Catalog Number |
| S-VT-32-50 |
| Bill of Materials | |||||
| Part Number | Description | QTY | Material |
Weight (Ea) lbs. (Kg) |
UBS lbs. |
| AS-50BNK | Anchor Shackle | 2 | Galv. Steel | 1.7 (0.8) | 50,000 |
| EEL-50-L | Eye-Eye Link, 50K ("L") | 2 | Galv. Steel | Variable | 50,000 |
| BYC-50 | Ball Y-Clevis | 2 | Galv. Steel | 3.3 (1.5) | 50,000 |
| Supplied By Other | Insulator String | 2 | - | - | - |
| CR-60937 | Corona Ring, V-String | 1 | Aluminum | 21.8 (9.9) | - |
| SYC-50 | Socket Y-Clevis | 2 | Galv. Steel | 5.4 (2.5) | 50,000 |
| YPT-65979 | Yoke Plate, Tri-Bundle | 1 | Galv. Steel | 31.5 (14.3) | 100,000 |
| See Note 3 in Features section | Attachment Hardware | 3 | Ductile Iron | - | - |
| See Note 3 in Features section | Suspension Hardware | 3 | Aluminum | - | - |
