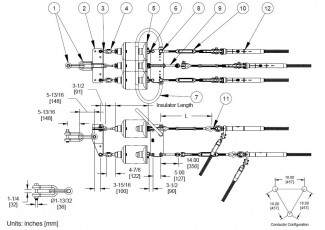

Dead-end Assembly - Tri-Bundle Conductor, Triple Insulator, 50K
PLP String Assemblies include a full selection of tower hardware for tangent suspension, angle, and dead-end assemblies. The assemblies are organized by rated voltage values, number of conductors, general assembly type, and vertical strength of the associated insulators.
- All items will arrive in one weather-resistant crate, so all string parts will be delivered at the same time.
- String Assemblies are packaged and marked by string or tower for easy field identification, to minimize handling, and to expedite string installation.
- The number of assemblies per crate can be modified based on customer requirements.
- The catalog numbers provided represent commonly used string configurations. Please contact a PLP sales representative if you are interested in design modifications, or creation of an assembly to your specification.
Notes:
- All galvanizing has been performed per ASTM A153
- Parts with length “L” are variable length and dependent on the string design and line parameters.
- Suspension Clamp and associated attachment hardware sold separately. See the Suspension and Support section of the website for AGS / CGS / Bolted Clamp and Armor Rods options.
- Compression Dead-end Assemblies are sold separately. Please see the Compression Hardware section of the website for ACSR / ACSS / ACCC configurations.
- Corona rings are packaged separately.
- Please see the individual component drawings for detailed dimensions and material properties of parts.
Sales Materials
| Catalog Number |
| D-IX-33-50 |
| Bill of Materials | |||||
| Part Number | Description | QTY | Material |
Weight (Ea) lbs. (Kg) |
UBS lbs. |
| AS-150BNK | Anchor Shackle | 2 | Galv. Steel | 13.0 (5.9) | 150,000 |
| YPT-65980 | Yoke Plate, Tri-Bundle, Dead-end, Tower End | 1 | Galv. Steel | 81.0 (37.0) | 150,000 |
| AS-50BNK | Anchor Shackle | 3 | Galv. Steel | 1.7 (0.8) | 50,000 |
| BE-50 | Ball Eye | 3 | Galv. Steel | 1.5 (0.68) | 50,000 |
| Supplied By Other | Insulator String | - | - | - | - |
| SC-50BNK | Socket Clevis | 3 | Galv. Steel | 3.1 (1.4) | 50,000 |
| CR-60938 | Corona Ring, Dead-end Assembly | 1 | Aluminum | 8.0 (3.6) | - |
| YPT-65981 | Yoke Plate, Tri-Bundle, Dead-end, Conductor End | 1 | Ductile Iron | 86.0 (39.0) | 50,000 |
| EYCL-50-14 | Y-Clevis Eye Link, 14" | 1 | Galv. Steel | 5.0 (2.3) | 50,000 |
| TB-CE-50 | Turnbuckle, Clevis-Eye | 3 | Galv. Steel | 13.4 (6.1) | 50,000 |
| AS-50BNKSN | Anchor Shakle with Sphere Nut | 3 | Galv. Steel | 1.9 (0.9) | 50,000 |
| See Note 4 in Features section | Compression Dead-end Jumper Assembly | 3 | Galv. Steel and Aluminum | - | 95% RBS |
