Compression Dead-end Assembly: ACCC^®

• The Compression Dead-ends are specially designed for applications on ACCC conductors.
• Design allows for continuous conductor operating temperature up to 180° C and 2 hour 200° C emergency operating temperature.
• Holding Strength: 95% or more of the conductor rated breaking strength (RBS) in accordance with ANSI C119.4 requirements for dead-end tensile strength.
• Compression of products can be completed with industry standard presses and specialty dies. Please contact PLP for information on purchasing compression dies for ACCC applications.

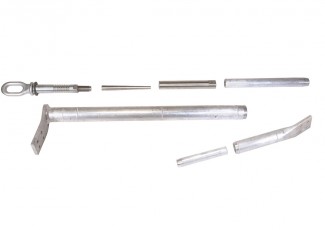

Includes:

• Dead-end Eye: Steel component of the dead-end assembly that screws into the collet housing.
• Collet: Steel collet that holds onto the exposed composite core of the ACCC conductor.
• Collet Housing: Houses the collet and couples the steel eye to the core.
• Inner Sleeve: Provides spacing between the conductor and the dead-end body to allow for compression.
• Dead-end Body: Aluminum component of the dead-end assembly that is compressed around the OD of the conductor.
• Aluminum Jumper: Aluminum body that is compressed around the OD of the conductor and bolts to the dead-end assembly.

ACCC^® is a registered trademark of CTC Global, Inc.

Application Procedures

SP3457-2 (Compression Dead-end and Jumper Terminal for ACCC Conductors)
