FIBERLIGN® Suspension
The FIBERLIGN Suspension uses a combination of structural reinforcing rods (SRR), outer rods, housing halves, and resilient inserts to reduce compression, clamping, and bending stresses on OPGW and the optical fibers within it.
-
Reduces negative effects of wind-induced cable motion, such as aeolian vibration, galloping, and sway
-
Housing halves are captured by the aluminum strap for a low-stress assembly and suspended by a single galvanized steel bolt, washer, and locknut connection to prevent compression stress
-
Inserts are made from an elastomer that is specifically formulated to resist deterioration from UV, weathering, extreme temperature variations, and compression set
-
An aluminum alloy reinforcement is molded into each insert half for extreme loading
-
A current transfer tab is included with all standard suspensions to provide a direct electrical bond between the OPGW and a ground lead
-
The current transfer tab is captured between the outer rods of the OPGW and the SRR, simplifying installation as no fasteners are required and over-torquing is avoided
-
Housing assembly, SRR, and outer rods are made from a high-strength aluminum alloy
-
An optional ground wire assembly can be included with the suspension
-
SRR and outer rods cannot be reused. Hardware components can be reused if they are in good condition
-
The FIBERLIGN Suspension has been thoroughly tested for vibration, mechanical loading, and optical attenuation in accordance with IEEE Standard 1138 and IEEE Standard 1591.1
Product Information
FIBERLIGN Suspension for OPGW - Catalog Pages
Installation Instructions
SP-2704 (FIBERLIGN Suspension)
FIBERLIGN® Suspension
| Catalog Number | Cable Diameter Range | SRR Specifications | |||||||
| Rod Length | Rod Diameter | Rods per set | Color Code | ||||||
| Single | Double | ||||||||
| Single | Double | in | mm | in (m) | in (m) | in | mm | ||
| 4300100 | 4300200 | 0.354 - 0.381 | 9.0 - 9.6 | 66 (1.68) | 84 (2.13) | 0.146 | 3.7 | 9 | Blue |
| 4300101 | 4300201 | 0.382 - 0.398 | 9.7 - 10.0 | 66 (1.68) | 84 (2.13) | 0.146 | 3.7 | 9 | Green |
| 4300102 | 4300202 | 0.399 - 0.418 | 10.1 - 10.5 | 66 (1.68) | 84 (2.13) | 0.146 | 3.7 | 10 | Yellow |
| 4300103 | 4300203 | 0.419 - 0.439 | 10.6 - 11.1 | 67 (1.70) | 84 (2.13) | 0.146 | 3.7 | 10 | Black |
| 4300104 | 4300204 | 0.440 - 0.458 | 11.2 - 11.6 | 68 (1.73) | 84 (2.13) | 0.146 | 3.7 | 11 | White |
| 4300105 | 4300205 | 0.459 - 0.461 | 11.6 - 11.7 | 72 (1.83) | 90 (2.29) | 0.167 | 4.2 | 10 | Purple |
| 4300106 | 4300206 | 0.462 - 0.476 | 11.7 - 12.0 | 72 (1.83) | 90 (2.29) | 0.167 | 4.2 | 10 | Purple |
| 4300107 | 4300207 | 0.477 - 0.503 | 12.1 - 12.7 | 72 (1.83) | 90 (2.29) | 0.146 | 3.7 | 11 | Orange |
| 4300108 | 4300208 | 0.504 - 0.511 | 12.8 -12.9 | 73 (1.85) | 90 (2.29) | 0.146 | 3.7 | 12 | Red |
| 4300109 | 4300209 | 0.512 - 0.536 | 13.0 - 13.5 | 76 (1.93) | 94 (2.39) | 0.167 | 4.2 | 11 | Blue |
| 4300110 | 4300210 | 0.537 - 0.559 | 13.6 - 14.1 | 77 (1.96) | 94 (2.39) |
0.167 | 4.2 | 11 | Green |
| 4300111 | 4300211 | 0.560 - 0.565 | 14.2 - 14.3 | 77 (1.96) | 94 (2.39) | 0.167 | 4.2 | 11 | Green |
| 4300112 | 4300212 | 0.566 - 0.573 | 14.4 - 14.5 | 79 (2.01) | 102 (2.59) | 0.182 | 4.6 | 11 | Black |
| 4300113 | 4300213 | 0.574 - 0.598 | 14.6 - 15.1 | 79 (2.01) | 102 (2.59) | 0.182 | 4.6 | 11 | Black |
| 4300114 | 4300214 | 0.599 - 0.625 | 15.2 - 15.8 | 81 (2.06) | 102 (2.59) | 0.182 | 4.6 | 11 | Brown |
| 4300116 | 4300216 | 0.626 - 0.632 | 15.9 - 16.0 | 94 (2.39) | 120 (3.05) | 0.204 | 5.2 | 11 | Red |
| 4300117 | 4300217 | 0.633 - 0.666 | 16.1 - 16.8 | 94 (2.39) | 120 (3.05) | 0.204 | 5.2 | 11 | Red |
| 4300118 | 4300218 | 0.667 - 0.682 | 16.9 - 17.2 | 94 (2.39) | 120 (3.05) | 0.204 | 5.2 | 11 | Yellow |
| 4300119 | 4300219 | 0.683 - 0.710 | 17.3 - 18.0 | 94 (2.39) | 120 (3.05) | 0.204 | 5.2 | 11 | Yellow |
| 4300120 | 4300220 | 0.711 - 0.728 | 18.1 - 18.4 | 94 (2.39) | 120 (3.05) | 0.204 | 5.2 | 12 | White |
| 4300121 | 4300221 | 0.729 - 0.744 | 18.5 - 18.8 | 94 (2.39) | 120 (3.05) | 0.204 | 5.2 | 12 | White |
| 4300122 | 4300222 | 0.745 - 0.750 | 18.9 - 19.0 | 94 (2.39) | 120 (3.05) | 0.204 | 5.2 | 12 | White |
| 4300123 | 4300223 | 0.751 - 0.786 | 19.1 - 19.9 | 94 (2.39) | 120 (3.05) | 0.204 | 5.2 | 12 | Brown |
| 4300124 | 4300224 | 0.787 - 0.814 | 20.0 - 20.6 | 100 (2.54) | 120 (3.05) | 0.250 | 6.4 | 11 | Green |
| 4300125 | 4300225 | 0.815 - 0.845 | 20.7 - 21.4 | 100 (2.54) | 129 (3.28) | 0.250 | 6.4 | 11 | Yellow |
| 4300126 | 4300226 | 0.846 - 0.855 | 21.5 - 21.6 | 100 (2.54) | 129 (3.28) | 0.250 | 6.4 | 11 | Blue |
| 4300127 | 4300227 | 0.856 - 0.894 | 21.7 - 22.6 | 100 (2.54) | 132 (3.35) | 0.250 | 6.4 | 12 | Black |
| 4300128 | 4300228 | 0.895 - 0.907 | 22.7 - 23.0 | 100 (2.54) | 132 (3.35) | 0.250 | 6.4 | 12 | White |
| 4300129 | 4300229 | 0.908 - 0.916 | 23.1 - 23.2 | 100 (2.54) | 132 (3.35) | 0.250 | 6.4 | 12 | Purple |
| 4300153 | 4300253 | 0.917 - 0.929 | 23.3 - 23.5 | 100 (2.54) | 132 (3.35) | 0.250 | 6.4 | 12 | Brown |
| 4300154 | 4300254 | 0.930 - 0.942 | 23.6 - 23.9 | 100 (2.54) | 132 (3.35) | 0.250 | 6.4 | 12 | Red |
| 4300155 | 4300255 | 0.943 - 0.977 | 24.0 - 24.8 | 100 (2.54) | 132 (3.35) | 0.250 | 6.4 | 12 | Orange |

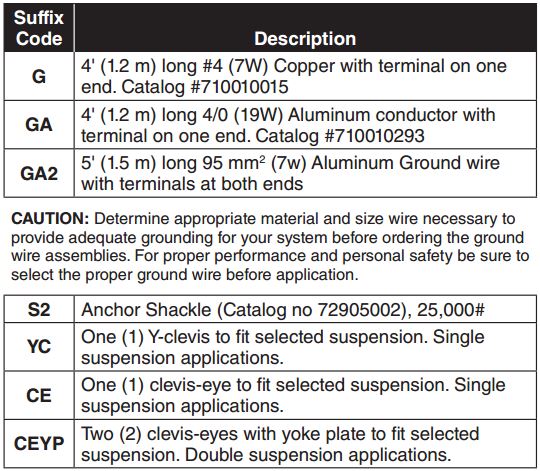

Ground Wire assemblies and fittings may be included in the same container with the suspension by adding the appropriate SUFFIX CODE from the below table.
Note: the suffix sequence is grounding wire first and fittings second.
Ex. 4300100GYC includes a 4300100 single suspension with copper ground wire assembly (G) and Y-clevis eye (YC).
