FIBERLIGN® Bolted Dead-End

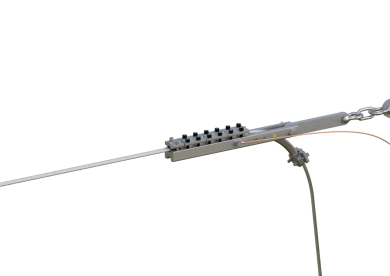

The FIBERLIGN Bolted Dead-End for Optical Ground Wire (OPGW) secures both left and right hand lay stranded cables and is rated up to 25,000 lb holding strength. The unique keeper design allows for a compact application length with only three keepers required up to the maximum rated holding strength. Breakaway shear head bolts limit torque to ensure proper installation compression on the OPGW cable.
• Elastomer cushions at the cable entry keeper and at the downguide clamp are designed to reduce strain and fatigue due to cable motion
• Unique keeper achieves rated holding strength with a standard three keeper design - reducing the number of keepers and bolts required
• Shear head bolts are designed to ensure proper compressive force
• Made from high-strength aluminum
• End caps with elastomer inserts guard against abrasion, wear, and fatigue at both cable entry and downguide exit
• Color/shape codes provide easy identification for warehouse stock and field inspection verification
Product Information
FIBERLIGN Bolted Dead-Ends
| Catalog Number | Cable Range | |||||
|
With Downguide |
Without Downguide | in | mm |
Size Code Color / Shape |
||
| Minimum | Maximum | Minimum | Maximum | |||
| 2900001DG | 2900001 | 0.354 | 0.384 | 8.98 | 9.75 | Circle |
| 2900002DG | 2900002 | 0.384 | 0.422 | 9.75 | 10.7 | Blue S |
| 2900003DG | 2900003 | 0.422 | 0.453 | 10.7 | 11.5 | Green Heart |
| 2900004DG | 2900004 | 0.453 | 0.500 | 11.5 | 12.7 | Dark Green Triangle |
| 2900005DG | 2900005 | 0.500 | 0.540 | 12.7 | 13.7 | Yellow X |
| 2900006DG | 2900006 | 0.540 | 0.563 | 13.7 | 14.3 | Hashtag Symbol |
| 2900007DG | 2900007 | 0.563 | 0.583 | 14.3 | 14.5 | Red Square |
| 2900008DG | 2900008 | 0.583 | 0.611 | 14.8 | 15.5 | Navy D |
| 2900009DG | 2900009 | 0.611 | 0.638 | 15.5 | 16.2 | Orange A |
| 2900010DG | 2900010 | 0.638 | 0.670 | 16.2 | 17.0 | Brown M |
| 2900011DG | 2900011 | 0.670 | 0.705 | 17.0 | 17.9 | Pink Star |
| 2900012DG | 2900012 | 0.705 | 0.750 | 17.9 | 19.0 | Gray P |
