Alloy Double Side Tie

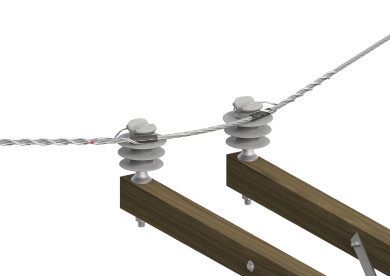

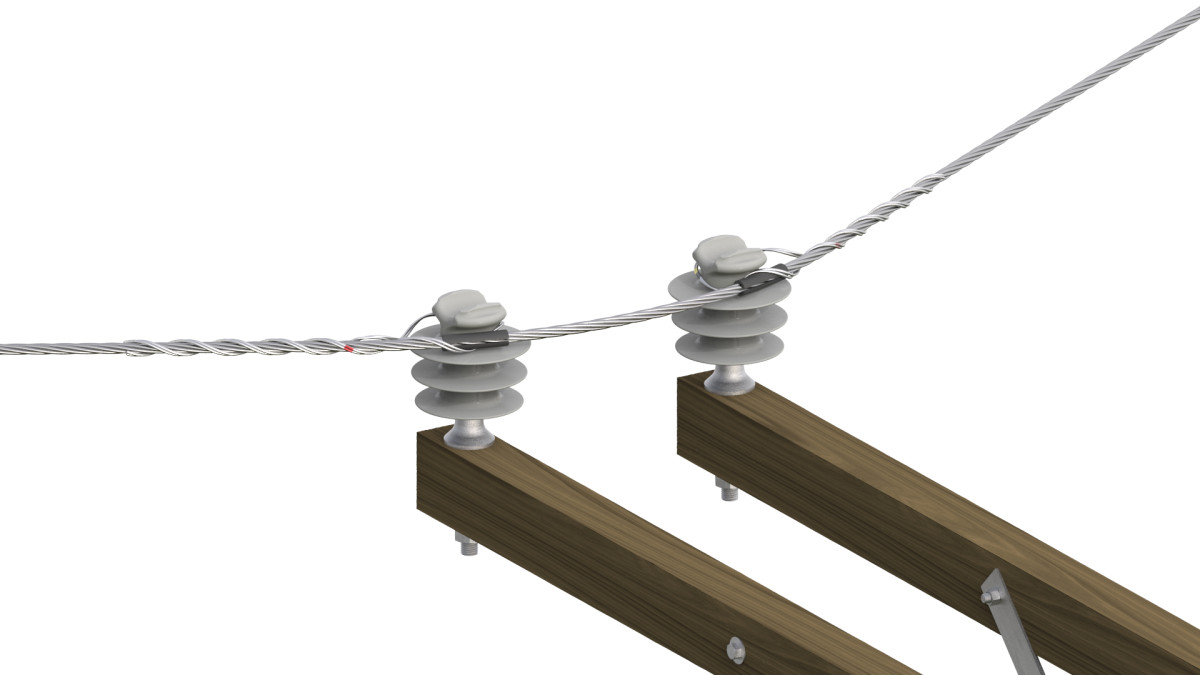

Preformed Line Products Alloy Ties are intended for use in corrosive environments on aluminum based conductors. They are suitable for use on ANSI C29 compliant insulators. Alloy Double Side Ties are designed for use in coastal areas. They have been performance-matched to aluminum conductors and are much more corrosive-resistant than standard aluminized steel ties.
- Easily applied by hand or with hot sticks
- Performance matched materials
- Will not damage the conductor during installation
- Conductor application up to 1.24"
- Accomodates line angles 0-40° depending on application
- Resiliency built in to protect the conductor
- Reacts like the conductor under loading
- Adheres to NESC Standards
- Will hold a minimum of 700 lbs. of unbalanced load (According to rigorous PLP testing)
- Suitable for use with either ANSI compliant polymer or porcelain insulators
- Made in the USA
Application Procedures
SP-2202-1 (Alloy Double Side Tie)
Sales Materials
Diameter Range1 |
Nominal Conductor Size2 | Units per Carton | C- and F-Neck Insulators (Black and Yellow) | J-Neck Insulators (Green) | Conductor Color Code | |||||
in | Catalog Number | Applied Length | Catalog Number | Applied Length | ||||||
Minimum | Maximum | in | in | |||||||
9/16" R. Groove4 | ||||||||||
0.245 | 0.277 |
#4, 6/1, 7/1; #4, 7W Alum. Alloy |
50 | ADBST-0100 | 16 | ADBST-0300 | 19 | Orange | ||
0.278 | 0.315 |
#3, 7W Alum. Alloy; #2, 7W All Alum. |
50 | ADBST-0101 | 16 | ADBST-0301 | 17 | Purple | ||
0.316 | 0.357 |
#2, 6/1, 7/1; #2, 7W Alum. Alloy; #1, 6/1 ACSR |
50 | ADBST-0102 | 17 | ADBST-0302 | 22 | Red | ||
0.358 | 0.405 |
1/0, 7W All Alum.; 1/0, 6/1 ACSR; 1/0, 7W Alum. Alloy |
50 | ADBST-0103 | 16 | ADBST-0303 | 21 | Yellow | ||
0.406 | 0.459 |
2/0, 7W All Alum.; 2/0, 6/1 ACSR; 2/0, 7W Alum. Alloy |
50 | ADBST-0104 | 18 | ADBST-0304 | 19 | Blue | ||
0.460 | 0.520 |
3/0, 7W All Alum.; 3/0, 6/1 ACSR; 3/0, 7W Alum. Alloy |
50 | ADBST-0105 | 19 | ADBST-0305 | 20 | Orange | ||
0.521 | 0.588 |
4/0, 7W All Alum.; 4/0, 6/1 ACSR; 4/0, 7W Alum. Alloy |
50 | ADBST-0106 | 19 | ADBST-0306 | 21 | Red | ||
0.589 | 0.665 |
266.8, 37W All Alum.; 266.8, 18/1 |
50 | ADBST-0107 | 20 | ADBST-0307 | 24 | Purple | ||
0.666 | 0.755 |
336.4, 19W All Alum.; 336.4, 18/1; 397.5, 19W All Alum. |
50 | ADBST-0108 | 20 | ADBST-0308 | 25 | Brown | ||
0.756 | 0.858 |
477, 19W, 37W All Alum.; 477, 18/1 24/7, 26/7 |
50 | ADBST-0109 | 20 | ADBST-0309 | 24 | Red | ||
5/8" R. Groove4 | ||||||||||
0.859 | 0.968 |
556.5, 26/7; 636, 18/1; 700, 37W, 61W All Alum. |
50 | ADBST-0110 | 22 | ADBST-0310 | 23 | Blue | ||
11/16" R. Groove4 | ||||||||||
0.969 | 1.096 |
795, 37W All Alum.; 795, 61W All Alum.; 715.5, 24/7; 795, 54/7 |
50 | ADBST-0111 | 24 | ADBST-0311 | 23 | Green | ||
3/4" R. Groove4 |
||||||||||
1.097 | 1.240 |
954, 36/1, 54/7; 1033.5, 37W, 61W All Alum. |
50 | ADBST-0112 | 24 | ADBST-0312 | 25 | Yellow | ||
Right-hand lay standard NOTES: 1 Diameter Range indicates the size of conductors that utilize the same tie. 2 Nominal Conductor Size indicates one or more of various conductors within each range. 3 The loop of the Alloy Double Side Tie can accommodate either C, F, or J-Neck insulators as indicated in the table. 4 For the succeeding ranges the insulator's side groove radius should be at least as large as shown above. |
