Vertical Tap/Angle Bracket

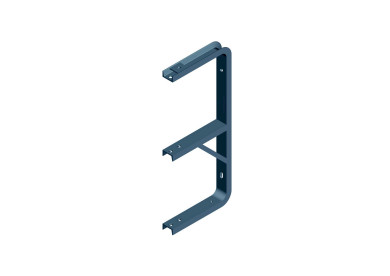

The Vertical Tap Angle Bracket converts compact diamond to a vertical orientation for use as a termination point for lateral taps and turning angles for the phase conductors of the aerial spacer cable system. The Vertical Tap/Angle Bracket provides a cost-effective solution compared to a standard crossarm construction. The bracket is ideally suited to be used with INSULIGN® Tie Top Insulators with Coated Ties or INSULIGN Vise Top Polymer Insulators in conjunction with the DIP-10 Insulator plate when angles require double pin construction. The brackets are interchangeable with other manufacturers' spacer cable systems.
-
Lateral termination point for convenient circuit tapping
-
Cost-effective alternative to crossarm terminations
-
Vertical orientation to facilitate heavy line angles and simplified taps
-
Pole mounting is achieved by using either 5/8" or 3/4" double arming or through bolts (not included)
-
Provisional ground lug hole
Product Information
Vertical Tap/Angle Bracket - Catalog Pages
| Catalog Number | System Voltage | Minimum Yield Load | Weight | Material | ||
| V1 | V2 | V3 | lb | |||
| lb | ||||||
| ABV-35 | 46 kV and below | 1000 | 1600 | 1100 | 38 | Galvanized Steel |
NOTE: Hot dip galvanized per ASTMA153 or A123 (latest version)
