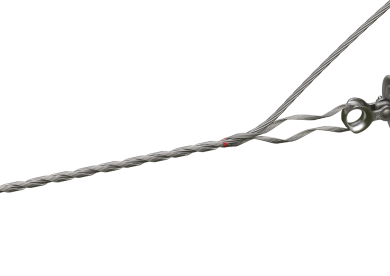

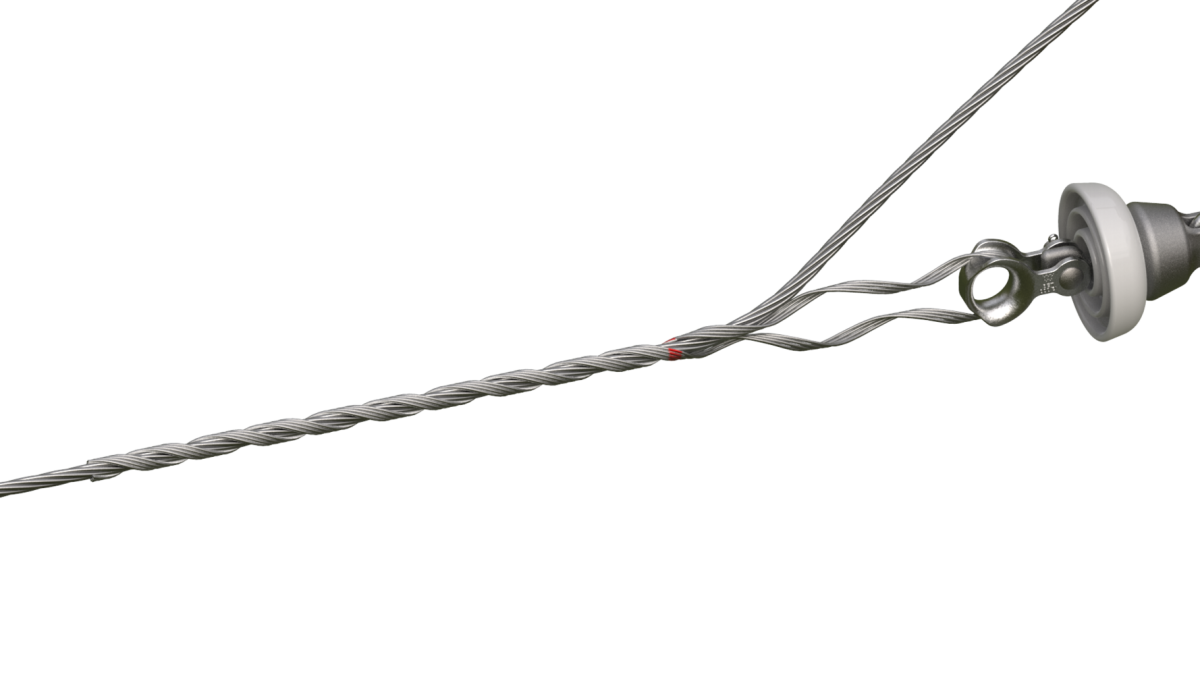

Distribution-Grip Dead-End
Distribution-Grip Dead-End, is a helical termination primarily for bare aluminum based right-hand-lay conductors. It provides the required holding strength in standard “Distribution” construction and permits for the continuation of the conductor through the termination without damage and without having to cut and splice it. Covers conductors from 0.182” to over 1.2” in diameter. This termination is not for use in OHSW.”
- Tools are not required nor recommended to install Distribution-Grip Dead-Ends, except for hot stick applications.
- Designed to grip the conductor uniformly to prevent distortion of the conductor.
- Unique design that eliminates bolts, nuts, washers and other component parts that may become lost or damaged during installation or in service.
Application Procedures
SP-2071 (Distribution-Grip Dead-End)
Catalog Pages
For use on: ACSR, All-Aluminum, Aluminum Alloy, AWAC®, Compacted ACSR
| Catalog Number | Diameter Range | ACSR | Nominal Conductor Sizes | AWAC 6/1 |
Units |
Weight |
Length |
Color Code |
|||||
| Minimum | Maximum | All Aluminum | Aluminum Alloy | Comp. ACSR | Per Carton | Per Carton | (in) | ||||||
| DG-4554 |
0.182 |
0.203 |
#6, 6/1 |
#6, 7W | #6, 7W | #6, 6/1 | – | 100 | 14 | 16 | Blue | ||
| DG-4541 |
0.229 |
0.257 |
#4, 6/1 |
#4, 7W |
#4, 7W | #4, 6/1 | #4 | 100 | 20 | 17 | Orange | ||
| DG-4542 | 0.290 | 0.325 |
#2, 6/1 |
#2, 7W |
#2, 7W | #2, 6/1 | #2 | 100 | 33 | 24 | Red | ||
| DG-4543 | 0.326 | 0.364 |
#1, 6/1 |
#1, 7W | #1, 7W | #1, 6/1 | #1 | 100 | 44 | 26 | Green | ||
| DG-4544 | 0.365 | 0.409 |
1/0, 6/1 |
1/0, 7W | 1/0, 7W | 1/0, 6/1 | 1/0 | 50 | 31 | 26 | Yellow | ||
| DG-4545 | 0.410 | 0.460 |
2/0, 6/1 |
2/0, 7W | 2/0, 7W | 2/0, 6/1 | 2/0 | 50 | 31 | 28 | Blue | ||
| DG-4546 | 0.461 | 0.516 |
3/0, 6/1 |
3/0, 7W | 3/0, 7W | 3/0, 6/1 | 3/0 | 25 | 22 | 32 | Orange | ||
| DG-4547 | 0.517 | 0.577 |
4/0, 6/1 |
4/0, 7W | 4/0, 7W | 4/0, 6/1 | 4/0 | 25 | 60 | 34 | Red | ||
| DG-4548 | 0.578 | 0.653 |
266.8, |
266.8, 19W | 266.8, 19W | 336.4, 18/1 | – | 25 | 39 | 35 | Black | ||
| DG-4549 | 0.654 | 0.739 |
336.4, |
336.4, 19W | 336.4, 19W | 397.5, 18/1 | – | 25 | 53 | 39 | Green | ||
Right-Hand lay standard
EXPLANATORY NOTES:
(1) Nominal conductor size indicates a few of the various conductors within each range. Consult PLP for sizes or strandings not shown.
(2) AWAC is a registered trademark of the Copperweld Co.

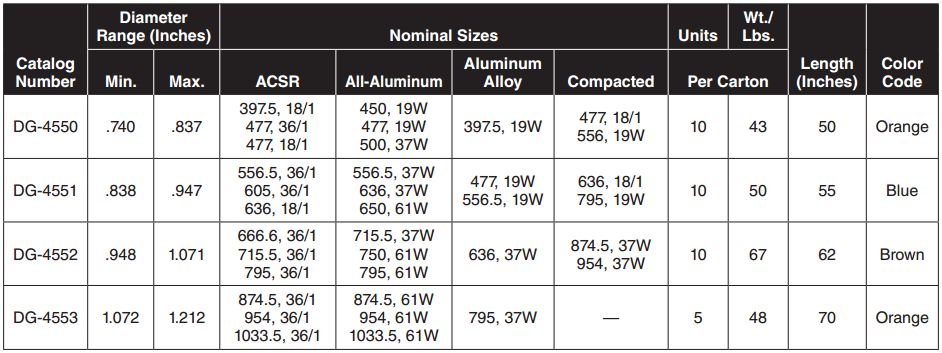

LARGE SIZES
For use on: AWAC®, Aluminum/Aluminum-Clad Steel
| Catalog Number | Conductor Size | Units per Carton |
Weight per Carton |
|||
|
AWAC |
Outside Diameter (in) |
Length (in) |
Color Code |
|||
| DG-4560 |
#4 AWAC 5/2 |
.261, .281 | 100 | 44 |
25 |
Green |
| DG-4561 |
#3 AWAC 5/2 |
0.293, 0.307, 0.316 | 100 | 46 | 26 | Brown |
| DG-4562 |
#2 AWAC 5/2 |
0.330, 0.340,0.344, 0.355 | 50 | 33 | 29 | Orange |
| DG-4563 |
#1 AWAC 5/2 |
0.370, 0.382, 0.386 | 50 |
44 |
31 | Green |
| DG-4564 |
#1 AWAC 4/3 |
0.312, 0.327 | 50 | 45 | 32 | Brown |
| DG-4565 |
#2 AWAC 2/5 |
0.398, 0.416 | 50 | 58 | 33 | Green |
| DG-4566 |
2/0 AWAC 5/2 |
0.467, 0.482, 0.487 | 50 | 60 | 35 | Blue |
| DG-4567 |
2/0 AWAC 4/3 |
0.502, 0.524 | 25 | 32 | 36 | Green |
| DG-4568 |
1/0 AWAC 2/5 |
0.541, 0.547, 0.564 | 25 | 42 | 37 | Purple |
| DG-4100 | 4/0 AWAC 15/4 | 0.575 | 25 | 42 | 38 | Orange |

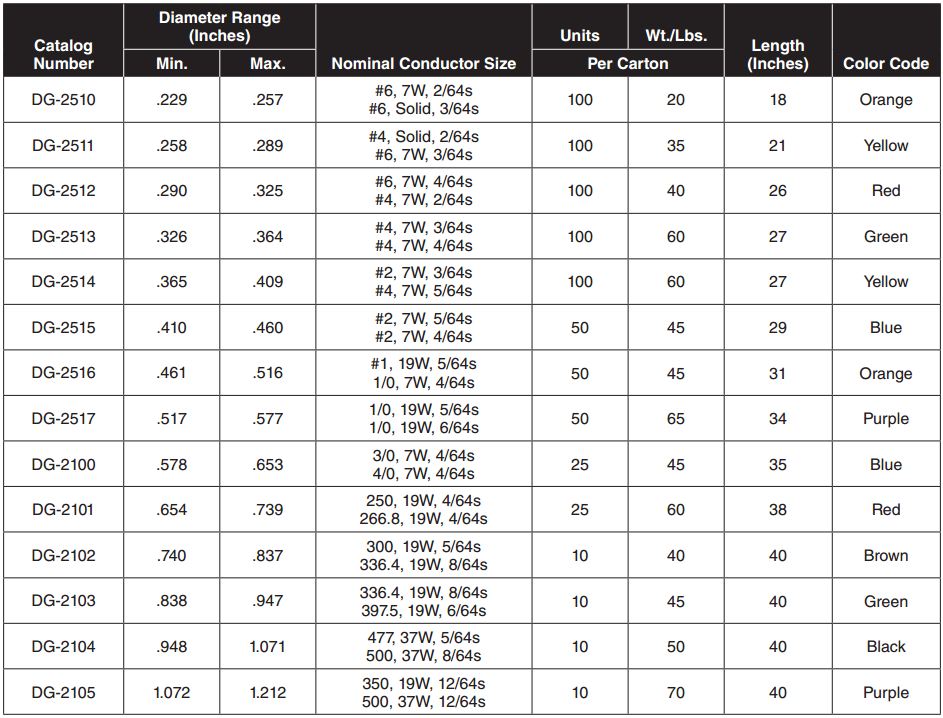

For use on: Plastic Jacketed Conductors, Polyethylene, Neoprene, Vinyl, Rubber
