Coated Dead-End

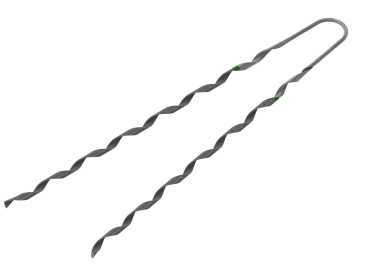

The Coated Dead-End is designed for direct application over conductors jacketed with neoprene, polyethylene, vinyl, or rubber. The sub-setted rods in each leg, bonded together with neoprene, exert a low radial pressure to prevent damage to the jacket. Because it is not necessary to skin the plastic covering, the same dead-end can be used for either aluminum- or copper-based covered conductors.

Designed for direct application over conductors jacketed with neoprene, polyethylene, vinyl, or rubber
Manufactured from aluminum alloy wire
Color-coded for ease of selection in the field

Product Information

Coated Dead-End - Distribution Catalog Pages

Coated Dead-End - Spacer Cable Catalog Pages

Installation Instructions

SP-2014 (Coated Dead-End)

For Use on: Plastic Jacketed Conductors Polyethylene, Neoprene Vinyl, and Rubber
Catalog Number	Diameter Range*		Applied Length	Conductor Color Code	Units per Carton	Weight per Carton
	Size		Applied Length			Weight per Carton
	in		in			lb
ND-0500	0.243	0.253	16	Green	100	13
ND-0501	0.254	0.264	17	Red		14
ND-0502	0.265	0.272	17	Black		14
ND-0503	0.273	0.284	18	Orange		14
ND-0100	0.285	0.297	19	Black		15
ND-0101	0.298	0.310	19	Yellow		17
ND-0102	0.311	0.323	20	Blue		18
ND-0103	0.334	0.338	20	Orange	100	18
ND-0104	0.339	0.354	21	Black		20
ND-0105	0.355	0.374	22	Yellow		20
ND-0106	0.375	0.397	23	Red		25
ND-0107	0.398	0.420	24	Green		26
ND-0108	0.421	0.445	27	Black	50	20
ND-0109	0.446	0.475	28	Orange	50	22

NOTE: Conductor may be right-hand lay or left-hand lay

NOTE: *Application is based on covered conductor outside diameter

For Use on: Plastic Jacketed Conductors Polyethylene, Neoprene Vinyl, and Rubber
Catalog Number	Diameter Range*		Length	Conductor Color Code	Units per Carton	Weight per Carton
	Size		Length			Weight per Carton
	in		in			lb
ND-0110	0.476	0.507	30	Blue	50	30
ND-0111	0.508	0.536	30	Red	50	29
ND-0112	0.537	0.571	31	Black	50	34
ND-0113	0.572	0.608	33	Yellow	50	36
ND-0114	0.609	0.648	33	Red	25	24
ND-0115	0.649	0.690	34	Green	25	26
ND-0116	0.691	0.735	35	Black	25	30
ND-0117	0.736	0.783	36	Orange	25	32
ND-0118	0.784	0.834	38	Blue	25	34
ND-0119	0.835	0.888	40	Black	25	38
ND-0120	0.889	0.945	42	Yellow	25	40
ND-0121	0.946	1.005	44	Green	25	52
ND-0122	1.006	1.070	45	Red	10	24
ND-0123	1.071	1.138	47	Blue	10	24
ND-0124	1.139	1.212	48	Orange	10	30
ND-0125	1.213	1.288	49	Black	10	30
ND-0126	1.289	1.372	51	Yellow	10	32
ND-0127	1.373	1.458	53	Green	10	38
ND-0128	1.459	1.550	56	Red	10	36
