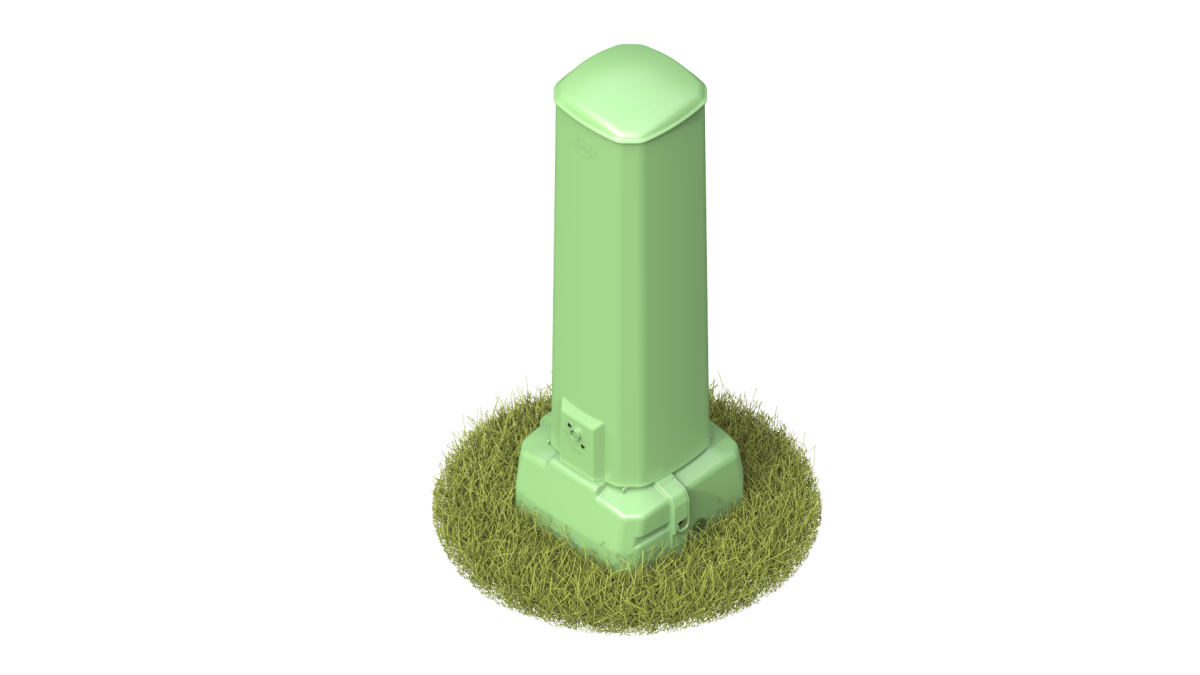

COYOTE® 8" Pedestal

The COYOTE 8" Pedestal provides easy customization options to adapt to your fiber or copper splicing needs at each location in your network. Each pedestal is pre-assembled and can be configured to accept various fiber optic splice tray types, fiber or copper terminals, fiber cross-connect bulkheads, or management brackets for copper splices. In addition, the organizer can be removed and a slotted metal back plane can be inserted into the base to attach fiber closures and cabinets, such as the COYOTE PedBox®, to provide additional protection for your splices.

  • Each pedestal is pre-assembled with a base, automatic locking cover, and internal organizer with a grounding busbar

  • Cover and base are manufactured out of a UV/FR stabilized polycarbonate that will withstand weathering

  • Split base design for easy installation around pre-installed duct/cables and replacement of existing pedestals

  • Automatic cover locking system (patent pending)

  • Grounding busbar isolates connections and is equipped with a ground wire terminal (#4 – #10)

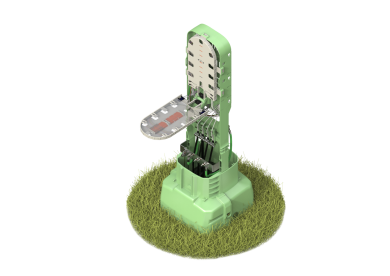

  • Organizer can be configured for various fiber and copper applications - splicing, terminals, and cross-connect applications

  • Organizer can accommodate COYOTE Flip Trays, LITE-GRIP® Splice Trays, and Legacy Splice Trays

  • All fasteners are constructed of stainless steel to prohibit corrosion and can be secured or loosened with common tools (216 can wrench, 1/4" nut driver, or Philips screwdriver)

  • Designed and tested in accordance with GR-13-CORE requirements

Product Information

COYOTE 8" Pedestal - Sell Sheet



Installation Instructions

SP3730 (COYOTE 8" Pedestal with Universal Organizer)

SP3731 (COYOTE 8" Pedestal LITE-GRIP® Tray Installation)

SP3732 (COYOTE 8" Pedestal Flip Tray Installation)

SP3733 (COYOTE 8" & 10" Pedestal Terminal Mounting Bracket Kit)

SP3734 (COYOTE Pedestal Anchor Stake Kit Installation)

SP3735 (COYOTE 8" Pedestal Copper Waterfall Handle Kit Installation)

SP3736 (COYOTE 8" Pedestal with Metal Back Plane Installation)

SP3749 (COYOTE Pedestal Adapter Bulkhead Kit Installation)

SP3614-1 (COYOTE Long Flip Trays for High-Density Splice Applications)

COYOTE 8" Pedestal with Universal Organizer
 Catalog Number Description

COYPED8-UOS

 COYOTE 8" Pedestal, Universal Organizer with Anchor Stake - Includes (1) 6" Pedestal, Universal Organizer with Busbar and Split Base, (1) Dome, (10 Small Parts Bag, (1) Cable Retention Kit, and (1) 32" Anchor Stake with Attachment Hardware
COYPED8-UON
COYOTE 8" Pedestal, Universal Organizer without Anchor Stake - Includes (1) 6" Pedestal, Universal Organizer with Busbar and Split Base, (1) Dome, (10 Small Parts Bag, (1) Cable Retention Kit





COYOTE 8" Pedestal with Metal Back Plane
 Catalog Number Description

COYPED8-MBPS
COYOTE 8" Pedestal, Metal Back Plane with Anchor Stake – Includes (1) 8" Pedestal, Metal Back Plane and Split Base, (1) Dome, and (1) Anchor Stake with Attachment Hardware

COYPED8-MBPN
 COYOTE 8" Pedestal, Metal Back Plane without Anchor Stake – Includes (1) 8" Pedestal, Metal Back Plane and Split Base, and (1) Dome
