COYOTE® Dome Closure

The COYOTE ® Dome Closures have the versatility and features that make it a perfect choice for fiber-to-the premise networks. Both the 6.5" and 9.5" dome closure designs use PLP’s patented segmented end plate system which allows independent access to each cable port without disruption to surrounding cables.

Download PDF

Sizes:
- 6.5" x 17"
  - Max Splice Capacity: (144) Single Fusion (80809958 Tray), (288) Ribbon/Mass Fusion (LGSTR144 Tray)
- 6.5" x 22"
  - Max Splice Capacity: (240) Single Fusion (LGSTS72), (648) Ribbon/Mass Fusion (LGSTR216 Tray)
- 9.5" x 19"
  - Max Splice Capacity: (288) Single Fusion (80809958 Tray), (720) Ribbon/Mass Fusion (LGSTR144 Tray)
- 9.5" x 28"
  - Max Splice Capacity: (720) Single Fusion (LGSTS72), (1296) Ribbon/Mass Fusion (LGST216 Tray)
Butt/Expressed Splice Configuration
Application: Direct buried, below grade, pole/wall mount or aerial
Quick to assemble, no special tools required
Tested in accordance to GR-771-CORE by an independent outside lab
Available in flame retardant material
Collar system allows for quick re-entry
Segmented end plate design provides independent access to every cable
Flexible grommet sealing technology supports a wide range and quantity of flat or round cable profiles.

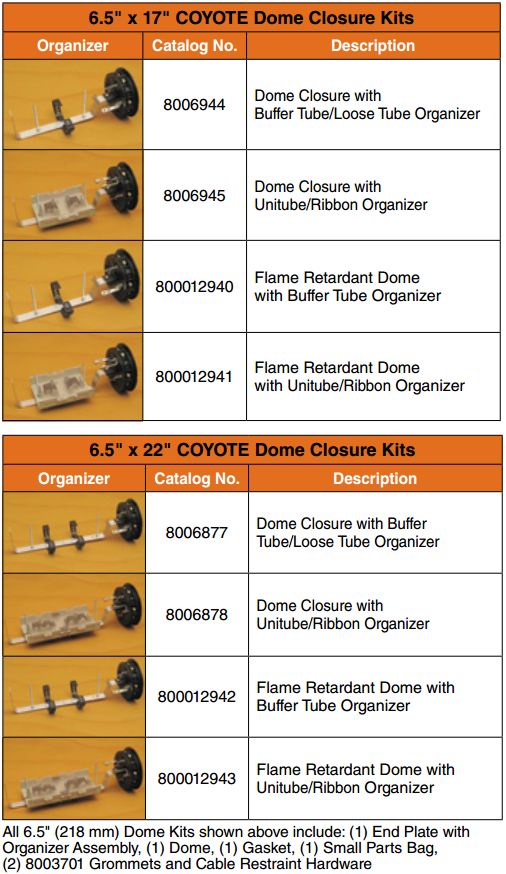

Standard 6-1/2" Dome Kits provided with (2) 8003701 grommets. Customized kits available upon request.

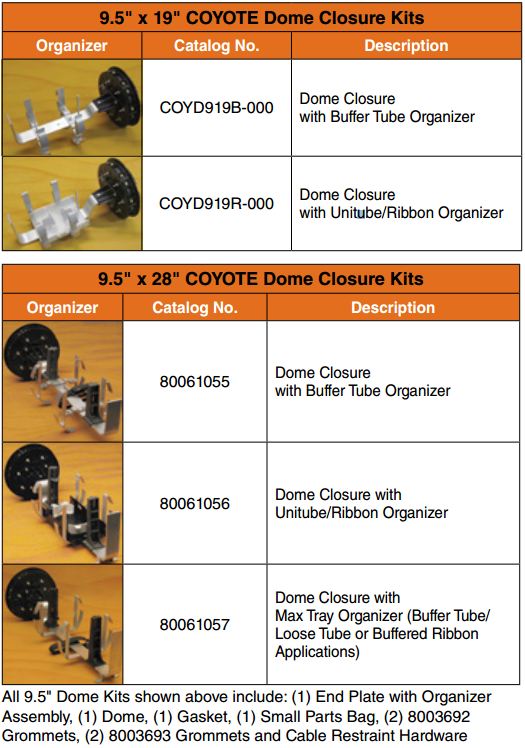

Standard 9-1/2" Dome Kits provided with (2) 8003692 grommets and (2) 8003693 grommets –customized kits available upon request.
In-Line options available – Contact PLP for details
