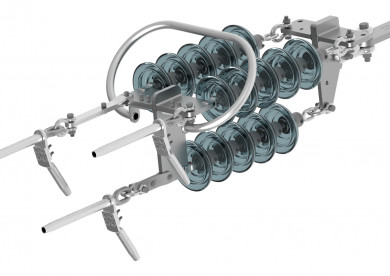

Dead-End Assembly - Tri-Bundle Conductor, Triple Insulator, 50K
PLP Tri-Bundle String Assemblies, including tangent suspensions, angled suspensions, and dead-ends, have been designed to accommodate the maximum vertical or tensile load of all conductors in the bundle. Standard configurations come in 18” x 18” x 18” spacing. The assemblies can be designed to accommodate specified insulator strength, string length, bundle spacing, and other factors. Designs may be independently tested to ensure corona performance at the specified line voltage.
- All items will arrive in one weather-resistant crate, so all string parts will be delivered at the same time.
- String Assemblies are packaged and marked by string or tower for easy field identification, to minimize handling, and to expedite string installation.
- The number of assemblies per crate can be modified based on customer requirements.
- The catalog numbers provided represent commonly used string configurations. Please contact a PLP sales representative if you are interested in design modifications, or creation of an assembly to your specification.
Notes:
- All galvanizing has been performed per ASTM A153
- Parts with length “L” are variable length and dependent on the string design and line parameters.
- Suspension Clamp and associated attachment hardware sold separately. See the Suspension and Support section of the website for AGS / CGS / Bolted Clamp and Armor Rods options.
- Compression Dead-end Assemblies are sold separately. Please see the Compression Hardware section of the website for ACSR / ACSS / ACCC configurations.
- Corona rings are packaged separately.
- Please see the individual component drawings for detailed dimensions and material properties of parts.
Sales Materials
| Catalog Number |
| D-IX-33-50 |
| Bill of Materials | |||||
| Part Number | Description | QTY | Material |
Weight (Ea) lbs. (Kg) |
UBS lbs. |
| AS-150BNK | Anchor Shackle | 3 | Galv. Steel | 13.0 (5.9) | 150,000 |
| YPT-66008 | Yoke Plate, Tri-Bundle, Dead-end, Tower End | 1 | Galv. Steel | 81.0 (37.0) | 150,000 |
| AS-60BNK | Anchor Shackle | 3 | Galv. Steel | 3.0 (1.4) | 60,000 |
| BE-50 | Ball Eye | 3 | Galv. Steel | 1.5 (0.68) | 50,000 |
| Supplied By Other | Insulator String | - | - | - | 50,000 |
| SC-50BNK | Socket Clevis | 3 | Galv. Steel | 3.1 (1.4) | 50,000 |
| CR-008 | Corona Ring, Dead-End Assembly | 1 | Aluminum | 8.0 (3.6) | - |
| YPT-66009 | Yoke Plate, Tri-Bundle, Dead-End, Conductor End | 1 | Ductile Iron | 86.0 (39.0) | 50,000 |
| EYCL-50-14 | Y-Clevis Eye Link, 14" | 1 | Galv. Steel | 5.0 (2.3) | 50,000 |
| AS-60BNKSN | Anchor Shakle with Sphere Nut | 3 | Galv. Steel | 3.2 (1.5) | 60,000 |
| See Note 4 on Page 9 | Compression Dead-end Jumper Assembly | 3 | Galv. Steel and Aluminum | - | 95% RBS |
