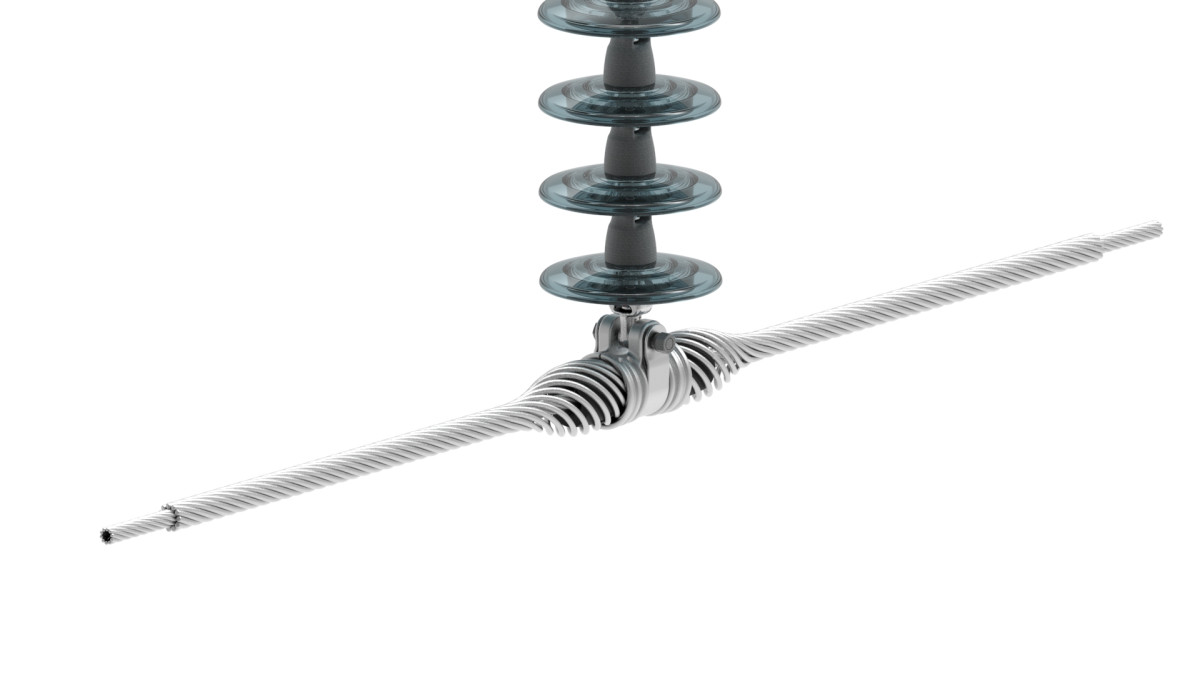

Jumper Assembly - Single Conductor, I-String, 30K

• All items will arrive in one weather-resistant crate, so all string parts will be delivered at the same time.

• String Assemblies are packaged and marked by string or tower for easy field identification, to minimize handling, and to expedite string installation.

• The number of assemblies per crate can be modified based on customer requirements.

• The catalog numbers provided represent commonly used string configurations. Please contact a PLP sales representative if you are interested in design modifications, or creation of an assembly to your specification.

Important Notes:

• Catalog numbers for assemblies are provided as design examples only. Specific assembly designs and part numbers will be configured per customer specifications. Please contact PLP Technical Support for project-specific part numbers.



• All galvanizing has been performed per ASTM A153. Parts are available with Charpy compliance, magnetic particle inspection, and radiographic inspections as specified. Please contact PLP for details.



• Parts with length "XX" are variable length and dependent on the string design and line parameters.

• Suspension clamps and associated hardware will be specified on a per-application basis. Please see the Suspension and Support catalog for options and details.



• Compression Dead-End Assemblies and associated hardware to be specified on a per-application basis.



• Corona rings, when required, are packaged separately to avoid damage.



• Please see the individual component drawings for detailed dimensions and material properties of parts.



• For bundle spacings differing from examples shown, please contact PLP.

Sales Materials

J-IX-11-30-XXX - Catalog Pages
