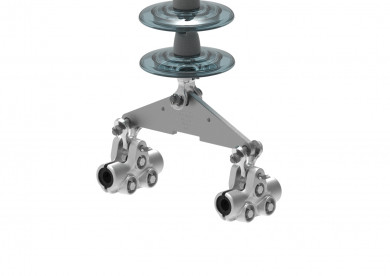

I-String Assembly - Tangent Suspension, Twin-Bundle Conductor, 30K
PLP Tangent Suspension String Assemblies support the conductor as it runs tangent to the structure. I-String or V-String configurations can be designed to accommodate specified insulator strength, bundling configuration, bundle spacing, and other features.
- All items will arrive in one weather-resistant crate, so all string parts will be delivered at the same time.
- String Assemblies are packaged and marked by string or tower for easy field identification, to minimize handling, and to expedite string installation.
- The number of assemblies per crate can be modified based on customer requirements.
- The catalog numbers provided represent commonly used string configurations. Please contact a PLP sales representative if you are interested in design modifications, or creation of an assembly to your specification.
Important Notes:
-
Catalog numbers for assemblies are provided as design examples only. Specific assembly designs and part numbers will be configured per customer specifications. Please contact PLP Technical Support for project-specific part numbers.
-
All galvanizing has been performed per ASTM A153. Parts are available with Charpy compliance, magnetic particle inspection, and radiographic inspections as specified. Please contact PLPfor details.
-
Parts with length "XX" are variable length and dependent on the string design and line parameters.
-
Suspension clamps and associated hardware will be specified on a per-application basis. Please see the Suspension and Support catalog for options and details.
-
Compression Dead-End Assemblies and associated hardware to be specified on a per-application basis.
-
Corona rings, when required, are packaged separately to avoid damage.
-
Please see the individual component drawings for detailed dimensions and material properties of parts.
-
For bundle spacings differing from examples shown, please contact PLP.
Sales Materials
| Catalog Number |
| S-IH-21-30 |
| Bill of Materials | ||||
| Part Number | Description | QTY | Material |
UBS lbs. |
| AS-30BNK | Anchor Shackle | 1 | Galvanized Steel | 30,000 |
| BYC-30 | Ball Y-Clevis | 1 | Galvanized Steel | 30,000 |
| Supplied by other | Insulator String | - | - | 30,000 |
| SYC-30 | Socket Y-Clevis | 1 | Galvanized Steel | 30,000 |
| YPD-65607 | DeltaYoke Plate | 1 | Galvanized Steel | 50,000 |
| See Note 3 in Features section | Attachment Hardware | 2 | Galvanized Steel | 25,000 |
| See Note 3 in Features section | Cushion-Grip Suspension | 2 | Aluminum | 25,000 |
