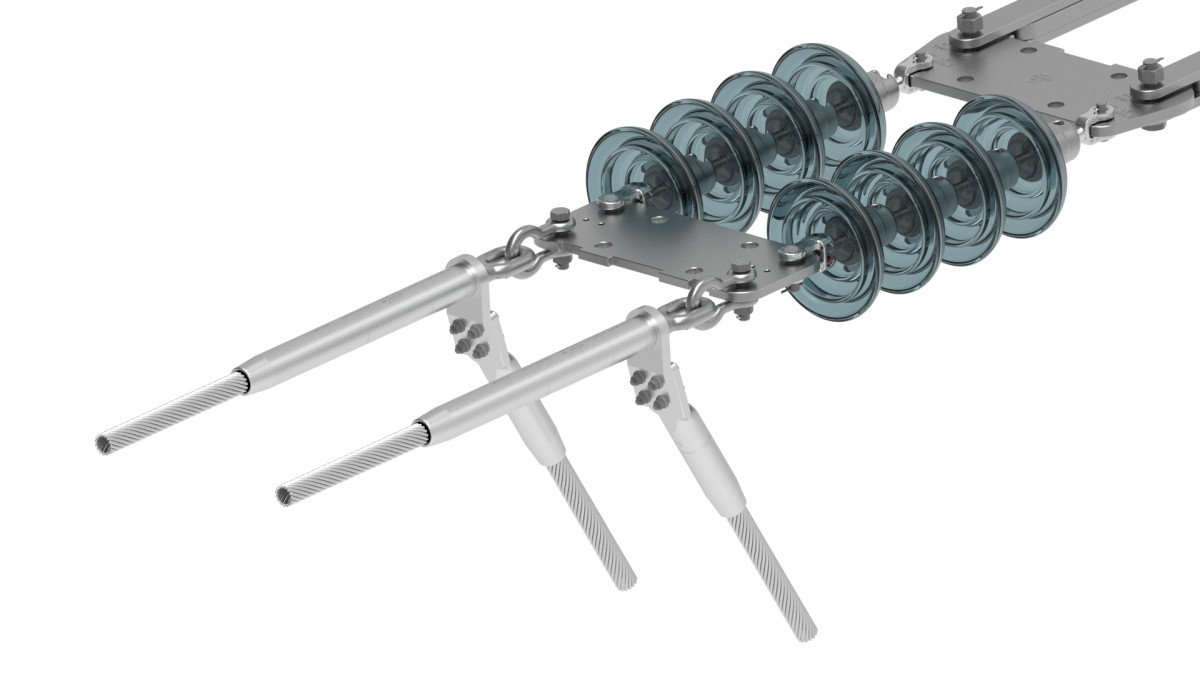

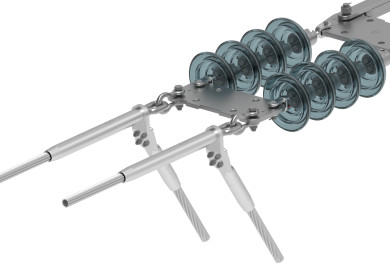

Dead-End Assembly - Twin-Bundle Conductor, Double Insulator, 30K
PLP Dead-End String Assemblies hold the conductor tension and are designed to accommodate up to 95% of the conductor’s rated tensile load. The general designs given may be modified based on insulator strength and overall length requirements. A variety of tension adjustment devices are also available to accommodate changes in conductor tension.
- All items will arrive in one weather-resistant crate, so all string parts will be delivered at the same time.
- String Assemblies are packaged and marked by string or tower for easy field identification, to minimize handling, and to expedite string installation.
- The number of assemblies per crate can be modified based on customer requirements.
- The catalog numbers provided represent commonly used string configurations. Please contact a PLP sales representative if you are interested in design modifications, or creation of an assembly to your specification.
Important Notes:
-
Catalog numbers for assemblies are provided as design examples only. Specific assembly designs and part numbers will be configured per customer specifications. Please contact PLP Technical Support for project-specific part numbers.
-
All galvanizing has been performed per ASTM A153. Parts are available with Charpy compliance, magnetic particle inspection, and radiographic inspections as specified. Please contact PLP for details.
- Parts with length "XX" are variable length and dependent on the string design and line parameters.
-
Suspension clamps and associated hardware will be specified on a per-application basis. Please see the Suspension and Support catalog for options and details.
-
Compression Dead-End Assemblies and associated hardware to be specified on a per-application basis.
-
Corona rings, when required, are packaged separately to avoid damage.
-
Please see the individual component drawings for detailed dimensions and material properties of parts.
-
For bundle spacings differing from examples shown, please contact PLP.
Sales Materials
| Catalog Number |
| D-IX-22-30 |
| Bill of Materials | ||||
| Part Number | Description | QTY | Material |
UBS lbs. |
| AS-60BNK | Anchor Shackle | 2 | Galvanized Steel | 60,000 |
| EEL-60-XX | Eye-Eye Link, Variable Length | 1 | Galvanized Steel | 60,000 |
| YPD-69107 | Yoke Plate, Delta | 1 | Galvanized Steel | 60,000 |
| BYC-30 | Ball Y-Clevis | 2 | Galvanized Steel | 30,000 |
| Supplied By Other | Insulator String | 2 | - | - |
| SYC-50 | Socket Y-Clevis | 2 | Galvanized Steel | 30,000 |
| YPR-65606 | Rectangular Yoke Plate | 1 | Galvanized Steel | 30,000 |
| CR-003 | Corona Ring | 2 | Aluminum | - |
| See Note 4 in Features | Compression Dead-End Assembly | 2 | Galvanized Steel and Aluminum | 95% RBS |
