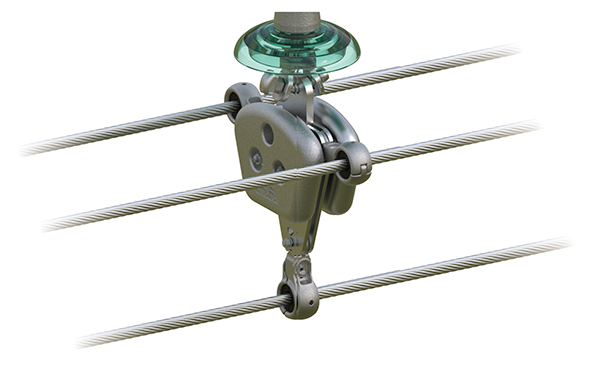

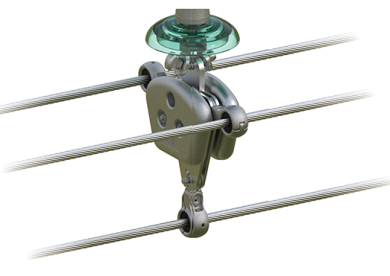

CUSHION-GRIP® Jumper Yoke
The CUSHION-GRIP® Jumper Yoke is designed for bundled conductor jumper applications where additional hold down weight may be necessary. The design utilizes elastomer cushioned arms that significantly reduce static and dynamic bending stresses on the conductors. Additionally, the CUSHION-GRIP Jumper Yoke is rated for both high voltage and high-temperature applications.
• Protects conductors by utilizing the same field-proven elastomer cushion found in the
CUSHION-GRIP® Spacer Damper and CUSHION-GRIP Twin Spacer
• Available for both twin-bundle and tri-bundle confi gurations
• Standard 18" conductor spacing (custom sub-conductor spacing is available upon request)
• Rated for up to 500 kV applications
• Rated for up to 250ºC continuous operating temperatures
• Available for conductors ranging from 0.673" to 1.821" in diameter
• Available with additional hold down weight ranging from 0 to 500 lb
