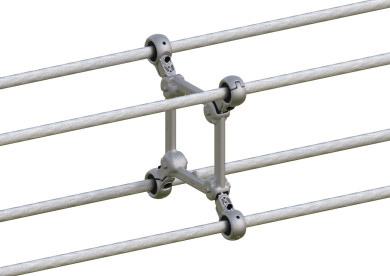

CUSHION-GRIP® Spacer Damper
The CUSHION-GRIP Spacer Dampers for Tri, Quad, and Hex Bundles feature elastomer damping elements engineered to absorb maximum energy. This design provides the greatest possible resistance to conductor fatigue by eliminating the need for additional vibration dampers.
- Available in two different designs
- Type "B" designed to meet the demanding requirements of IEC specificiation 61854, while maintaining a light overall weight and effective performance.
- Type "C" designed to exceed the extremely difficult performance requirements specified by the National Grid Company in the early 1990's.
- Subjected to demanding laboratory testing in accordance with both industry standards (e.g., IEC 61854) and customer specifications (e.g., National Grid Company).
- A high strength 1/4 turn fastener is employed in the elastomer lined conductor clamp to insure proper installation.
- Standard version is designed for up to 125° C continuous conductor temperature (150° C two hour emergency)
- High temperature version (HT) is rated for up to 250° C
Application Procedures
SP-2974-1 (CUSHION-GRIP® Spacer Damper)
SP-3041 (CUSHION-GRIP Spacer Damper - Bolted)
Catalog Pages
CUSHION-GRIP Spacer Damper - Motion Control Catalog Pages
CUSHION-GRIP Spacer Damper - Catalog
Sales Materials
CUSHION-GRIP Spacer Damper - Sell Sheet
Guide Book for Damaged or Worn Conductors
For standard 18" (457 mm) subconnector spacings, the Catalog Numbers are:
CGSDT-X45 YZ
T is B for Type "B" or C for Type "C"
X is 2 for Twin, 3 for Tri, 4 for Quad, and 6 for Hex
YZ is for the conductor range table below
EXAMPLE: CGSDB-34529 is a Tri Spacer Damper (Type "B") for use on a conductor range between 1.107" and 1.146" (28 - 29 mm)
CUSHION-GRIP Spacer Damper
| YZ | Conductor Range | |
| in | mm | |
| 18 | 0.673 - 0.713 | 17 - 18 |
| 19 | 0.714 - 0.752 | 18 - 19 |
| 20 | 0.753 - 0.791 | 19 - 20 |
| 21 | 0.792 - 0.831 | 20 - 21 |
| 22 | 0.832 - 0.870 | 21 - 22 |
| 23 | 0.871 - 0.909 | 22 - 23 |
| 24 | 0.910 - 0.949 | 23 - 24 |
| 25 | 0.950 - 0.988 | 24 - 25 |
| 26 | 0.989 - 1.028 | 25 - 26 |
| 27 | 1.029 - 1.067 | 26 - 27 |
| 28 | 1.068 - 1.106 | 27 - 28 |
| 29 | 1.107 - 1.146 | 28 - 29 |
| 30 | 1.147 - 1.185 | 29 - 30 |
| 31 | 1.186 - 1.224 | 30 - 31 |
| 32 | 1.225 - 1.264 | 31 - 32 |
| 33 | 1.265 - 1.303 | 32 - 33 |
| 34 | 1.304 - 1.345 | 33 - 34 |
| 35 | 1.346 - 1.382 | 34 - 35 |
| 36 | 1.383 - 1.421 | 35 - 36 |
| 37 | 1.422 - 1.461 | 36 - 37 |
| 38 | 1.462 - 1.500 | 37 - 38 |
| 39 | 1.501 - 1.539 | 38 - 39 |
| 40 | 1.540 - 1.579 | 39 - 40 |
| 41 | 1.580 - 1.618 | 40 - 41 |
| 42 | 1.619 - 1.657 | 41 - 42 |
| 43 | 1.658 - 1.697 | 42 - 43 |
| 44 | 1.698 - 1.736 | 43 - 44 |
| 45 | 1.737 - 1.776 | 44 - 45 |
