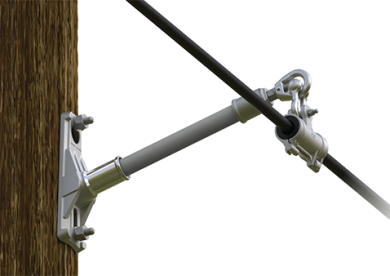

FIBERLIGN® Fiberglass Brackets
The FIBERLIGN Fiberglass Brackets are designed to support and mount various types of ADSS hardware when pole space is limited. Each bracket offers several standoff distances and end-fitting types to meet the specific needs of each application. The optional adapter fitting provides an economical means for expanding on an existing installation by mounting directly onto the veiled fiberglass rod.
-
End-fitting designs accommodate suspensions, supports, and dead-end hardware for ADSS
-
Multiple lengths of the fiberglass rod and 15º angle allow for flexible positioning
-
Fiberglass rod is veiled, providing superior UV protection and a smooth finish
-
Base and fittings are made of aluminum alloy for lightweight and durable construction
-
Top keyhole attachment point is provided for ease of installation, and a slotted lower attachment
point allows for easier alignment of the lower bolt
-
Optional adapter bracket accommodates an additional suspension clamp for future expansions
-
Accommodates 5/8" bolts or up to 1-1/4" banding for various mounting applications
Product Information
FIBERLIGN Fiberglass Brackets - Catalog Pages
2" Stud Fiberglass Bracket Ordering Information
| Catalog Number |
End Fitting |
Fiberglass Rod Length (A) |
Transverse Load Rating (Fx) |
Vertical Cantilever Rating (Fy) |
Longitudinal Load Rating (Fz) |
| in | lb | lb | lb | ||
| FM12SC | 2" Stud | 12 | 1500 | 1850 | 1600 |
| FM15SC | 2" Stud | 15 | 1500 | 1500 | 1300 |
| FM18SC | 2" Stud | 18 | 1500 | 1200 | 1200 |
4" Stud Fiberglass Bracket Ordering Information
| Catalog Number |
End Fitting |
Fiberglass Rod Length (A) |
Transverse Load Rating (Fx) |
Vertical Cantilever Rating (Fy) |
Longitudinal Load Rating (Fz) |
| in | lb | lb | lb | ||
| FM12SC-L | 4" Stud | 12 | 1500 | 1850 | 1600 |
| FM15SC-L | 4" Stud | 15 | 1500 | 1500 | 1300 |
| FM18SC-L | 4" Stud | 18 | 1500 | 1200 | 1200 |
Triple Position Fiberglass Bracket Ordering Information
| Catalog Number |
End Fitting |
Fiberglass Rod Length (A) |
Transverse Load Rating (Fx) |
Vertical Cantilever Rating (Fy) |
Longitudinal Load Rating (Fz) |
| in | lb | lb | lb | ||
| FBM15112C7 | Triple Position | 12 | 7500 | 1800 | 1400 |
| FBM15118C7 | Triple Position | 18 | 7000 | 1200 | 900 |
| FBM15124C7 | Triple Position | 24 | 6500 | 900 | 700 |
