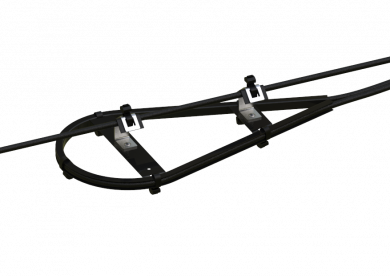

SLACKLOOP® Aluminum In-Span Storage
The SLACKLOOP Aluminum In-Span Storage is designed to store slack ADSS or lashed messenger fiber optic cables within the span. The storage brackets can accommodate a range of fiber optic cable sizes for buffer-tube-style ADSS and lashed messenger cable systems, as well as conventional and high-density ribbon-style cables. Kits can be customized to include aerial mounting brackets and cable protection options for pole passing.
-
Neatly organizes cable storage within the span
-
Made from durable powder-coated aluminum
-
Multiple sizes to cover a wide range of cable loop diameters
-
Available with hanger brackets for aerial mounting on either lashed messenger cable or ADSS
-
Hanger brackets have a simple one bolt and lock nut attachment
-
ADSS kit includes a press-in plastic cushion to prevent cable abrasion at the hanger-bracket interface
-
Available with optional Abrasion Protectors or the Uni-Group Cable Guide to protect slack cable that passes the pole
-
Low-profile Uni-Group Cable Guide routes cables through congested areas on the pole or structure
Product Information
SLACKLOOP Aluminum In-Span Storage - Catalog Pages
Installation Instructions
SLACKLOOP Aluminum In-Span Storage - Catalog Number
| FISA | XX | XX | X - | X | X |
| (Section 1) | (Section 2) | (Section 3) | (Section 4) | (Section 5) | |
|
Catalog Number Example: FISA 18AB-U Includes (2) Standard 18" Aluminum Storage Brackets, (4) ADSS Hanger Brackets, and (1) Uni-Group Cable Guide |
|||||
Section 1
| Storage Bracket Size (Select 1) | |
| 10 | 10" Aluminum Storage Brackets |
| 12 | 12" Aluminum Storage Brackets |
| 16 | 16" Aluminum Storage Brackets |
| 18 | 18" Aluminum Storage Brackets |
| 20 | 20" Aluminum Storage Brackets |
| 24 | 24" Aluminum Storage Brackets |
| 30 | 30" Aluminum Storage Brackets |
Section 2
| Hanger Bracket Type (Select 1) | |
| MB | Messenger Hanger Brackets |
| AB | ADSS Hanger Brackets |
Section 3
| Channel Width (Select 1) | |
| Leave Blank | Standard |
| W | Wide |
| 12", 16", 18" Only | |
Section 4
| Plastic Cable Straps (Select 1) | |
| Leave Blank | No Plastic Cable Straps |
| T | Pack of 25 Plastic Cable Straps |
Section 5
| Cable Protection Type (Select 1) | |
| Leave Blank | No Cable Protection |
| U | Uni-Grup Cable Guide |
| A | Abrasion Protector Kit |
