Coated TOPLOCK Tie

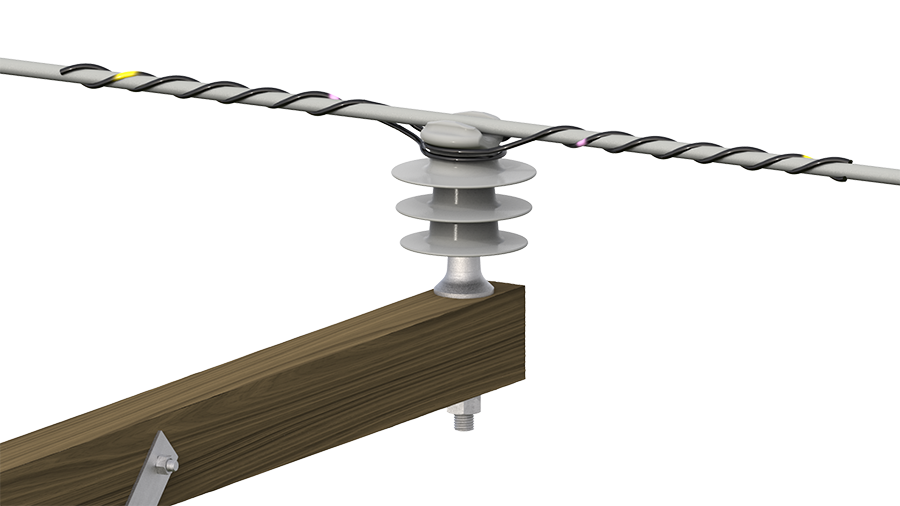

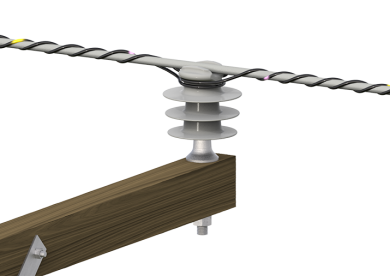

Coated TOPLOCKTM Ties are engineered for secure, long-term performance on plastic jacketed conductors utilizing ANSI C29-compliant tie top insulators. Designed for single insulator construction, these ties install in the top groove of interchangeable head-style insulators, delivering reliable conductor retention across a wide range of applications.

Each tie features a formed steel core with a durable semi-conductive coating, providing superior resistance to electrical tracking while protecting the conductor jacket.

  • Designed for use with interchangeable headstyle insulators (F-Neck and C-Neck)

  • Accommodates conductor diameters from 0.278" to 1.585"

  • Easily applied by hand or with hot sticks

  • Relieved ends help prevent damage to the conductor jacket during installation

  • Semi-conductive coating helps resist electrical tracking

  • Fully UV-stabilized for long-term environmental exposure

  • Maintains material performance over time without deterioration

  • Ideal for tree wire and spacer cable construction

  • Two-piece design delivers higher mechanical load ratings

Product Information

Coated TOPLOCK Tie - Insulator Ties Catalog Pages



Installation Instructions

SP3763 - Coated TOPLOCK Tie for Jacketed Conductor in Insulator Top Groove



Diameter Range

 Units per Carton C-Neck Insulators (Black/None) F-Neck Insulators (Yellow) Conductor Color Code
in Catalog Number Applied Length Catalog Number Applied Length Weight per Carton
Minimum Maximum in in lb
0.460 0.520

50











CTLC-1205

 20 CTLF-1105  19 11 Orange
0.521 0.588 CTLC-1206 21 CTLF-1106 20 12  Red
0.589 0.665 CTLC-1207 21 CTLF-1107 20 13  Purple
0.666 0.755 CTLC-1208 22 CTLF-1108 21 14 Brown
0.756 0.858 CTLC-1209 24 CTLF-1109 22 16   Red
0.859 0.968 CTLC-1210 25 CTLF-1110 23 17  Blue
0.969 1.096 CTLC-1211 27 CTLF-1111 24 18  Green
1.097 1.240 CTLC-1212 29 CTLF-1112 26 19  Yellow
1.241 1.402 CTLC-1213 31 CTLF-1113 27 20  Orange
1.403 1.585 CTLC-1214 33 CTLF-1114 228 22   Black/None
