Coated Double Top Tie

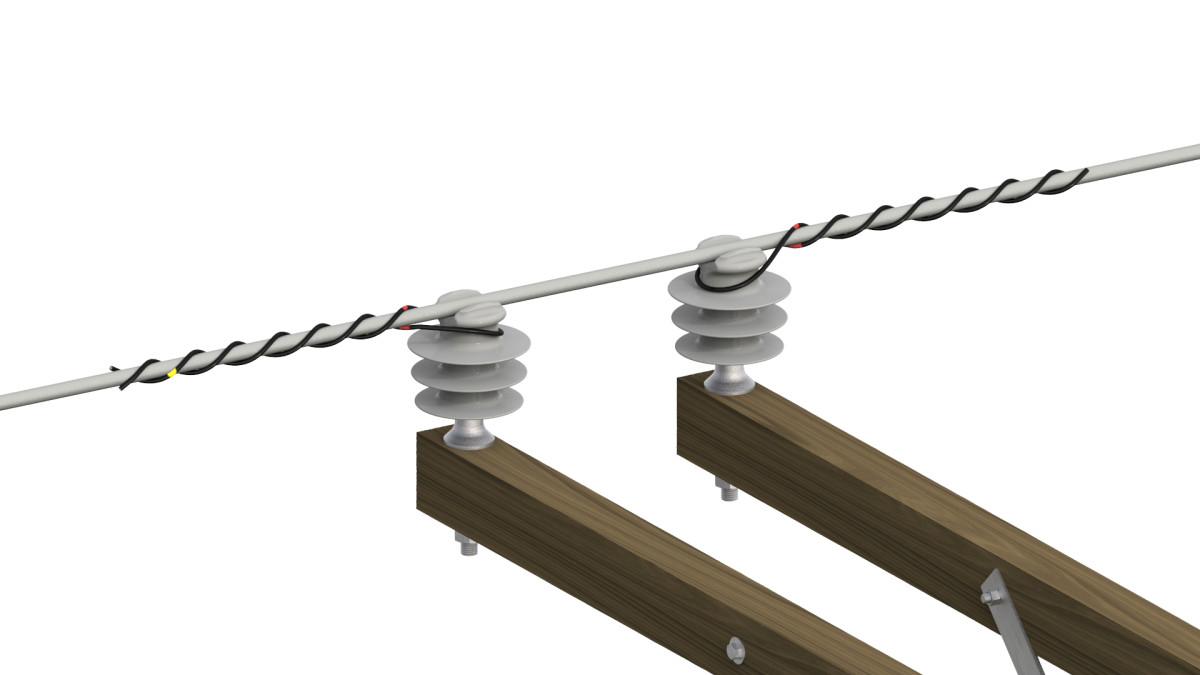

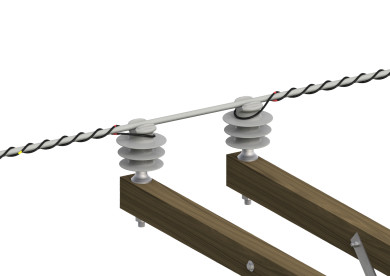

Coated Double Top Ties are intended for use with plastic jacketed conductors and tie top ANSI C29 compliant insulators only. They are suitable for use on any plastic jacketed conductor. Coated Double Top Ties are designed for installation on double insulator construction in the top groove of interchangeable insulators. Coated Ties incorporate a semi-conductive plastic coating, selected for its superior electrical tracking resistance properties, covering a formed steel wire.
-
Easily applied by hand or with hot sticks
-
Fully UV-stabilized
-
Can accommodate line angles between 0 and 20 degrees
-
Relieved ends eliminate tracking and ease application
-
Long service life without deterioration of material properties
-
Ideal for use with Tree Wire construction
Product Information
Coated Double Top Tie - Insulator Ties Catalog Pages
Insulator/Tie Fit Information Sheet
Installation Instructions
Diameter Range |
Units per Carton | C-Neck Insulators (Black/None) | F-Neck Insulators (Yellow) | Conductor Color Code | |||||
in | Catalog Number | Applied Length | Weight per Carton | Catalog Number | Applied Length | Weight per Carton | |||
Minimum | Maximum | in | lb | in | lb | ||||
0.278 | 0.315 |
25
|
CDTC-0201 | 15 | 11 | CDTF-0101 | 15 | 11 | Purple |
0.316 | 0.357 | CDTC-0202 | 16 | 12 | CDTF-0102 | 16 | 12 | Red | |
0.358 | 0.405 | CDTC-0203 | 16 | 13 | CDTF-0103 | 16 | 13 | Yellow | |
0.406 | 0.459 | CDTC-0204 | 15 | 16 | CDTF-0104 | 15 | 14 | Blue | |
0.460 | 0.520 | CDTC-0205 | 15 | 16 | CDTF-0105 | 15 | 16 | Orange | |
0.521 | 0.588 | CDTC-0206 | 16 | 17 | CDTF-0106 | 16 | 17 | Red | |
0.589 | 0.665 | CDTC-0207 | 17 | 18 | CDTF-0107 | 17 | 18 | Purple | |
0.666 | 0.755 | CDTC-0208 | 18 | 19 | CDTF-0108 | 18 | 19 | Brown | |
0.756 | 0.858 | CDTC-0209 | 22 | 20 | CDTF-0109 | 22 | 20 | Red | |
0.859 | 0.968 | CDTC-0210 | 23 | 22 | CDTF-0110 | 23 | 22 | Blue | |
0.969 | 1.096 | CDTC-0211 | 24 | 23 | CDTF-0111 | 24 | 23 | Green | |
1.097 | 1.240 | CDTC-0212 | 26 | 24 | CDTF-0112 | 26 | 24 | Yellow | |
1.241 | 1.402 | CDTC-0213 | 29 | 24 | CDTF-0113 | 29 | 25 | Orange | |
1.403 | 1.585 | CDTC-0214 | 32 | 25 | CDTF-0114 | 32 | 26 | Black/None |
