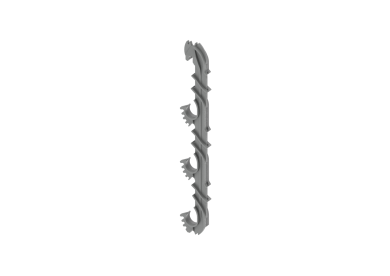

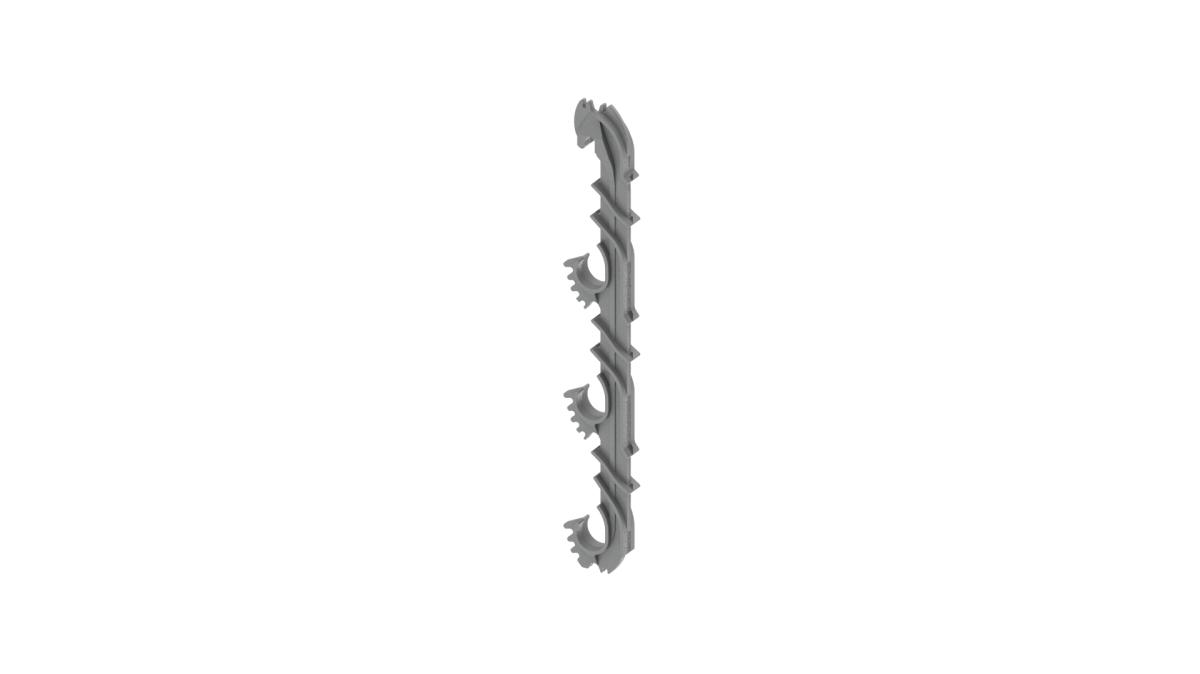

Vertical Spacer
The Vertical Spacer is made of a proprietary high-density polyethylene material (HDPE). It is gray in color, allowing the product to blend in with the environment. The Vertical Spacer provides excellent mechanical strength characteristics and meets all required UV resistance and electrical tracking performance levels. Each spacer includes flexible silicone ring ties that hold the jacketed conductor without damaging the outer jacket. The same ring ties are used to attach the spacer to the neutral or messenger.
-
Constructed of high-density polyethylene (HDPE) that is dielectrically compatible with and tested on HDPE jacketed conductors
-
Track-resistant
-
Proven UV-resistant
-
Lightweight and shatter-resistant
-
Easy to assemble
Product Information
| Catalog Number | Description | Dimensions | Unit Weight | Weight per Carton | Quantity per Carton | |
| Spacing | Overall Length | |||||
| in | lb | |||||
| EM-03 | 15 kV Single-Phase Spacer with Ring Tiles | 10.25 | 15 | 2.95 | 25 | 24 |
| ECV-15A4 | 15 kV Three-Phase Spacer with Ring Ties | 7.5 | 27 | 1.25 | 20 | 12 |
▼
